HR application / employees-change-department

employees-change-department

Move an employee to another department through the DEPARTMENTS LOV and raise another employee's salary, then save. UPDATE_JOB_HISTORY records the old department for the first row and finds nothing to record for the second (Forms updates every column, so the trigger fires for both). Closing EMPLOYEES ends its database session, which writes that session's PL/SQL coverage.

0defects

551values match

1tolerated by policy

0waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action	Checked on the original
0		Open form `login`
1		Type `LOGIN.USERNAME` = alice, `LOGIN.PASSWORD` = alice#123
2	login	Click `LOGIN.LOGIN`
3	employees	Click `CONSOLE.EMPLOYEES`
4	department lov	List of values on `EMPLOYEES.DEPARTMENT_ID[4]`, pick `Department_Name` = Shipping	`EMPLOYEES.DEPARTMENT_ID[4]` = 50
5		Type `EMPLOYEES.SALARY[6]` = 5000
6	save	Click `BUTTONS.SAVE_BUTTON`
7	close employees	Click `EMPLOYEES.Close`

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

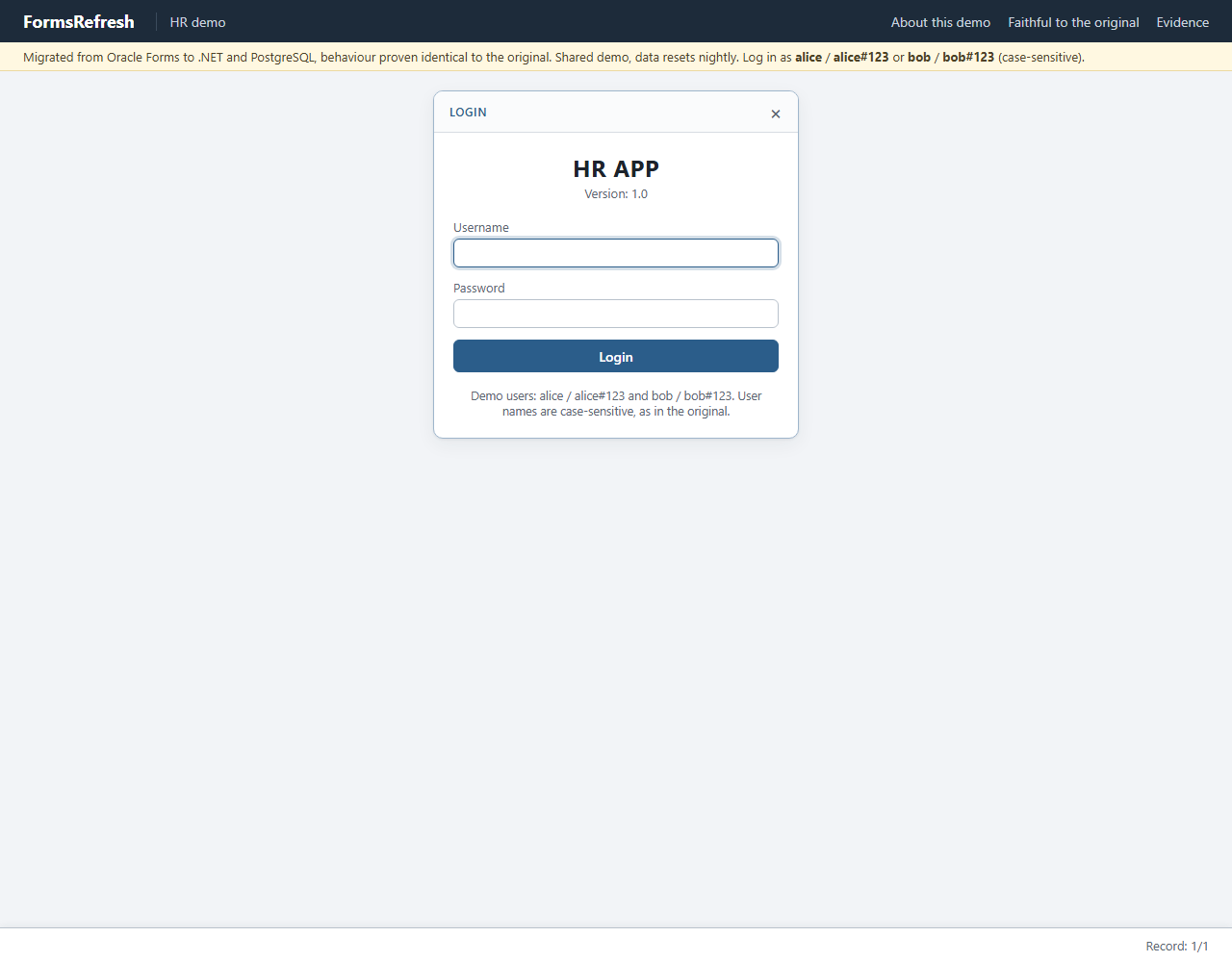

Step 0: open login

Original (Oracle Forms 14.1.2), step 00-open — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

Step 1: type

Original (Oracle Forms 14.1.2), step 01-type — Original (Oracle Forms 14.1.2)

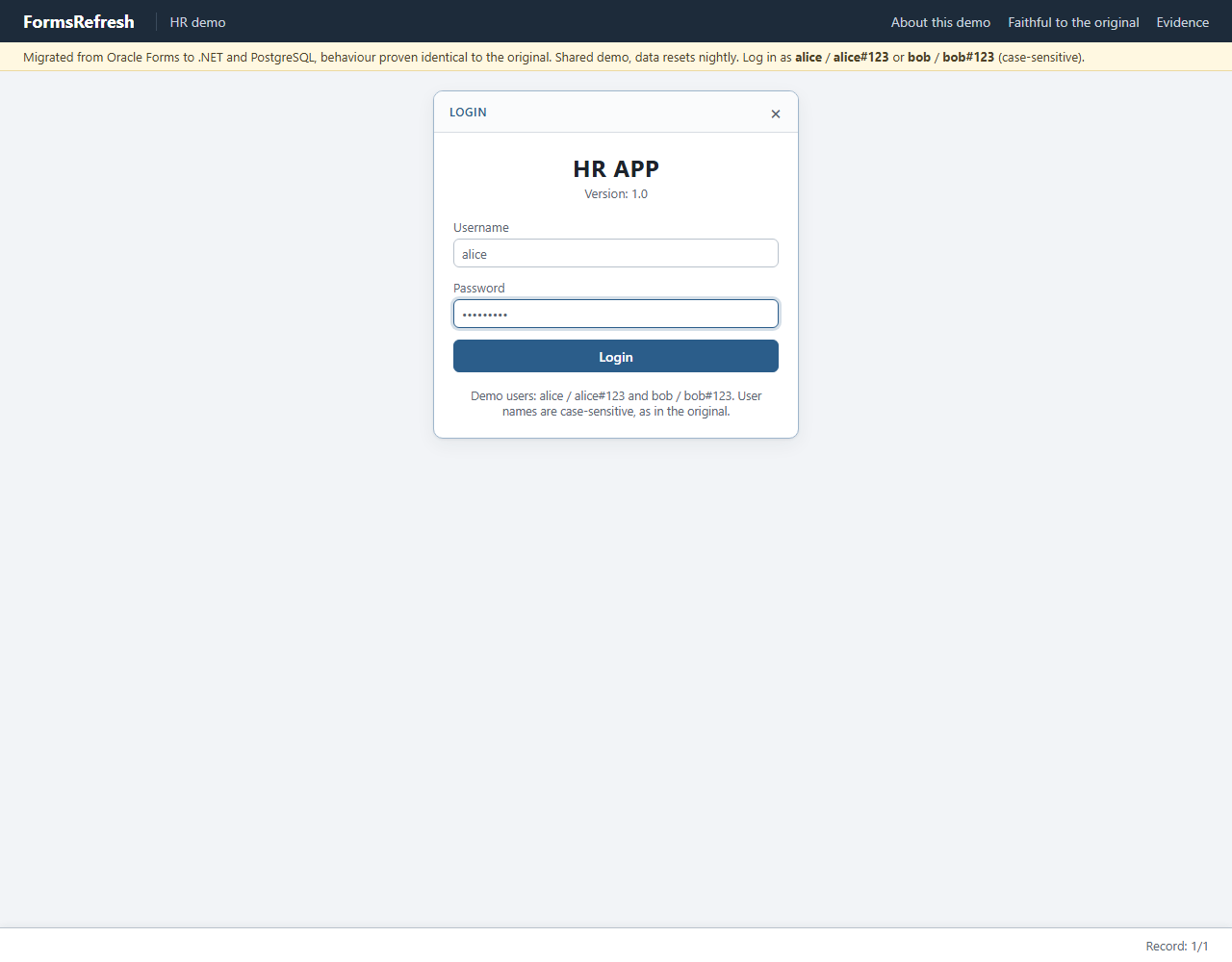

Migrated (.NET, PostgreSQL), step 01-type — Migrated (.NET, PostgreSQL)

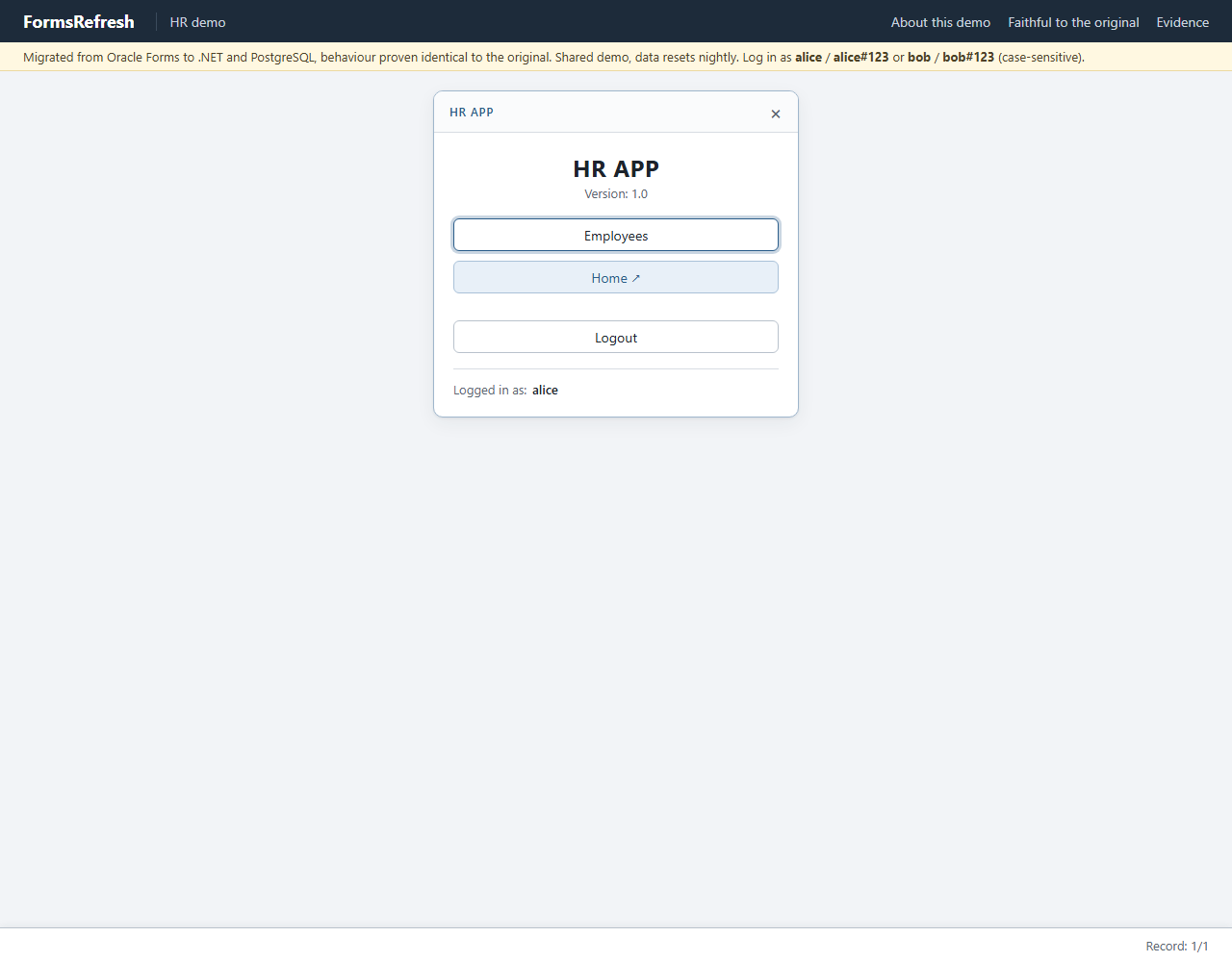

Step 2: login

Original (Oracle Forms 14.1.2), step 02-login — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 02-login — Migrated (.NET, PostgreSQL)

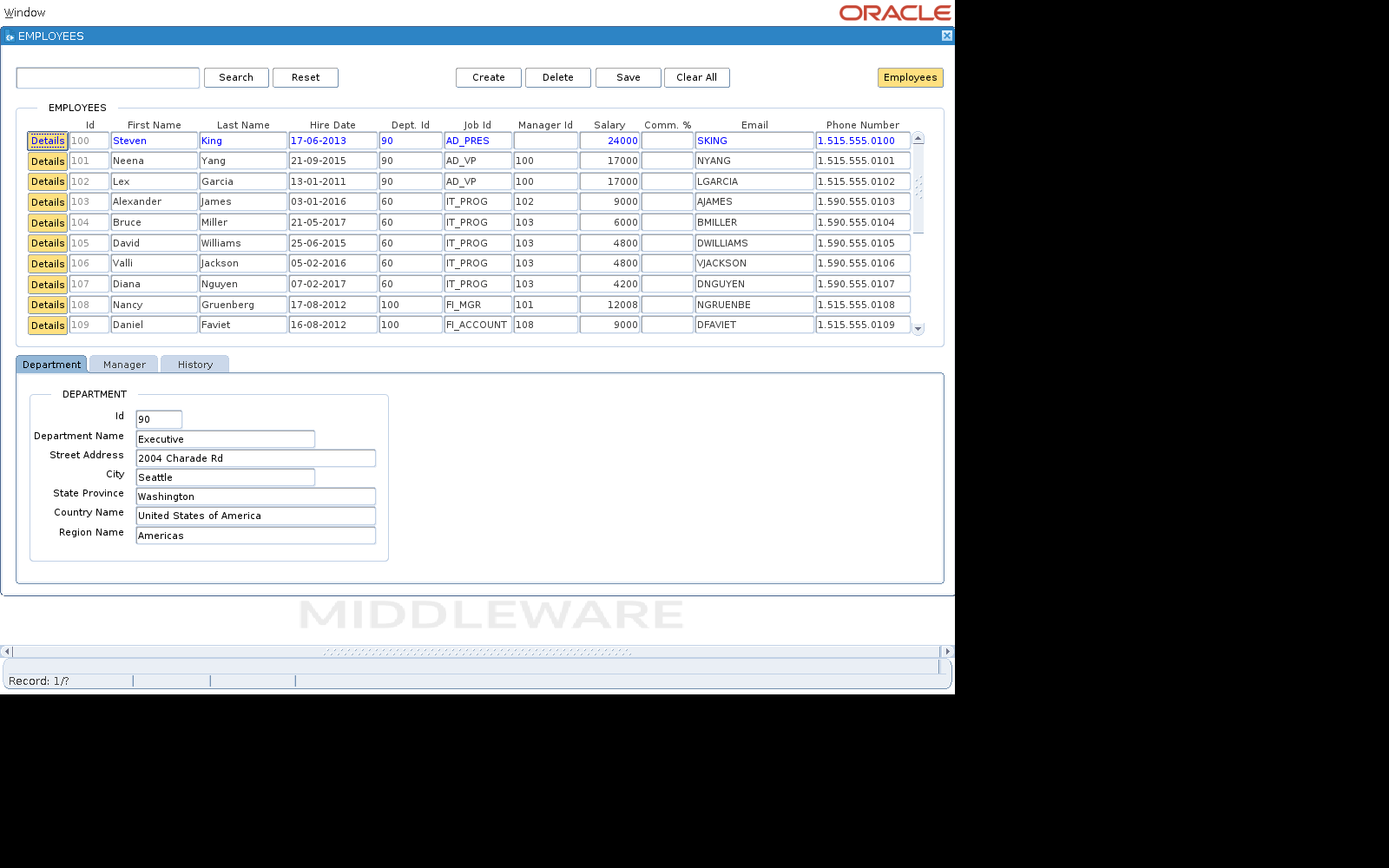

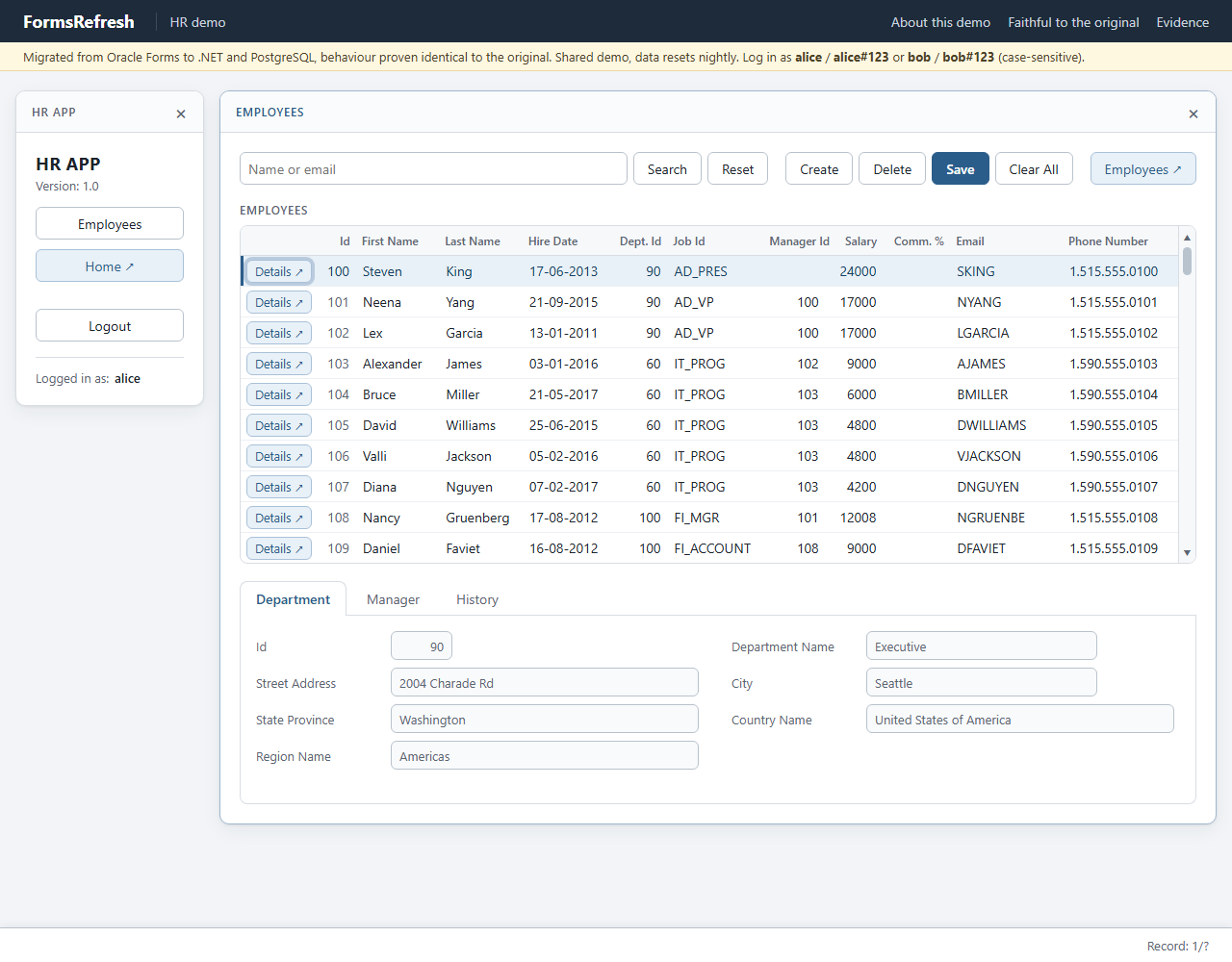

Step 3: employees

Original (Oracle Forms 14.1.2), step 03-employees — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 03-employees — Migrated (.NET, PostgreSQL)

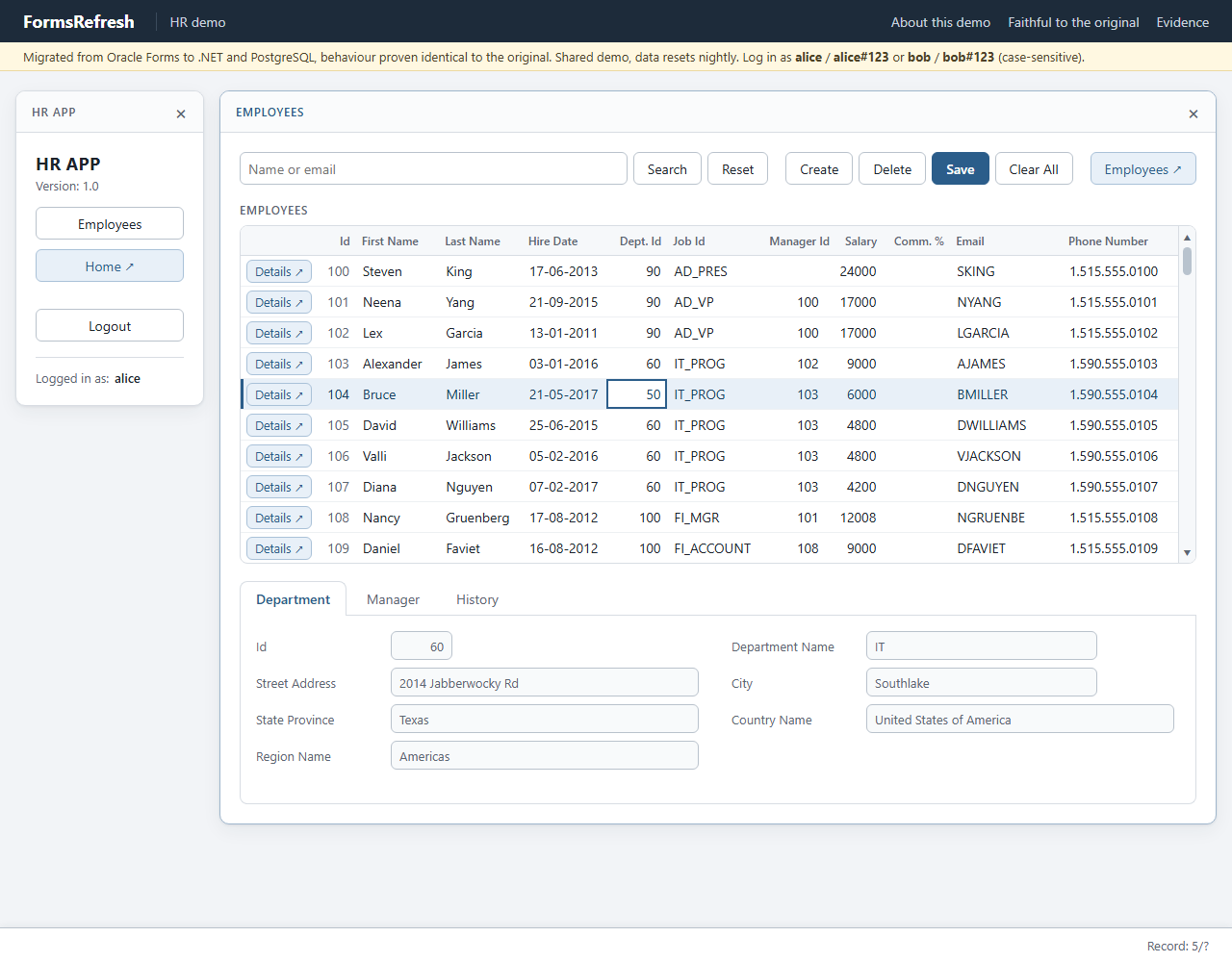

Step 4: department lov

Original (Oracle Forms 14.1.2), step 04-department-lov — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 04-department-lov — Migrated (.NET, PostgreSQL)

Step 5: type

Original (Oracle Forms 14.1.2), step 05-type — Original (Oracle Forms 14.1.2)

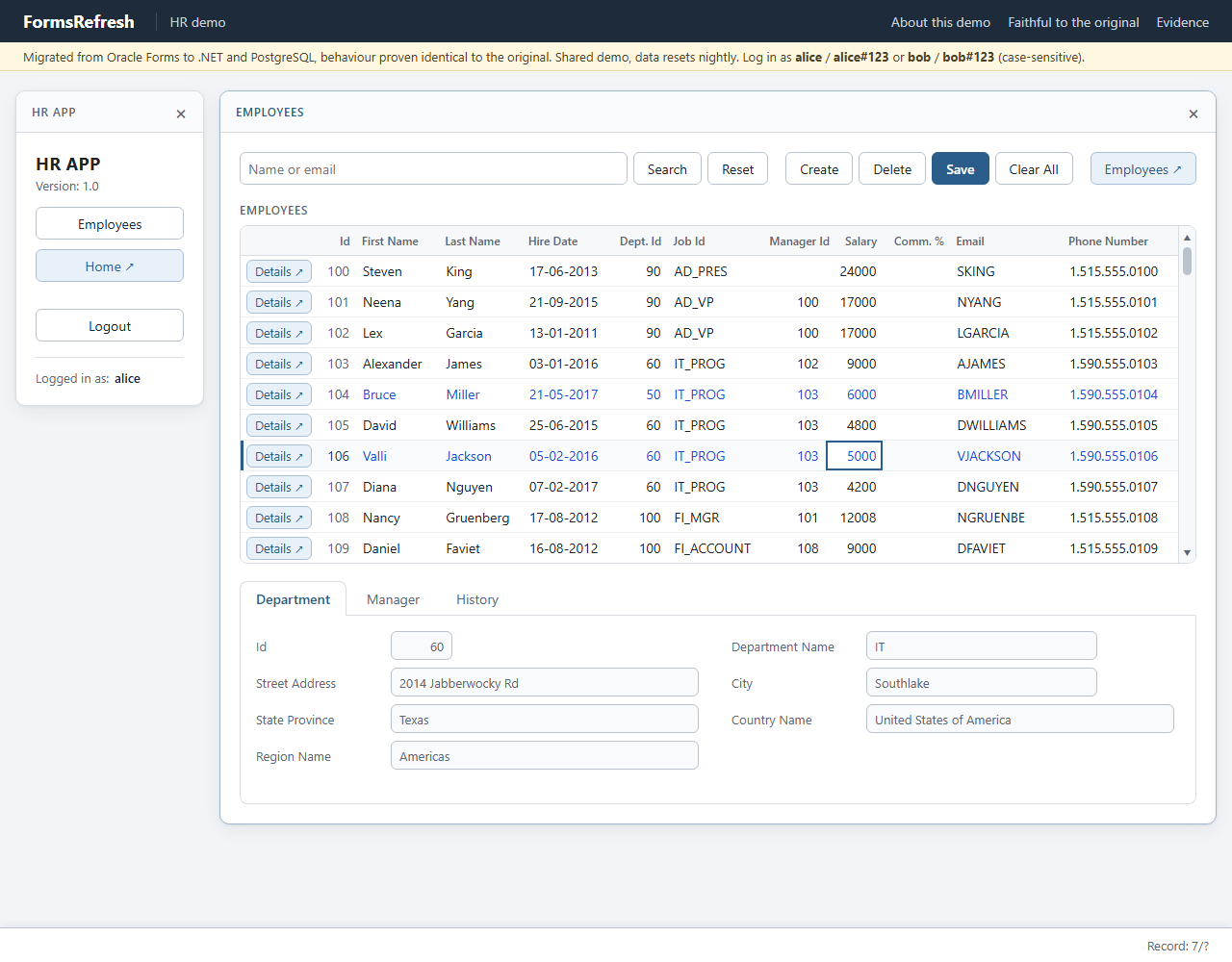

Migrated (.NET, PostgreSQL), step 05-type — Migrated (.NET, PostgreSQL)

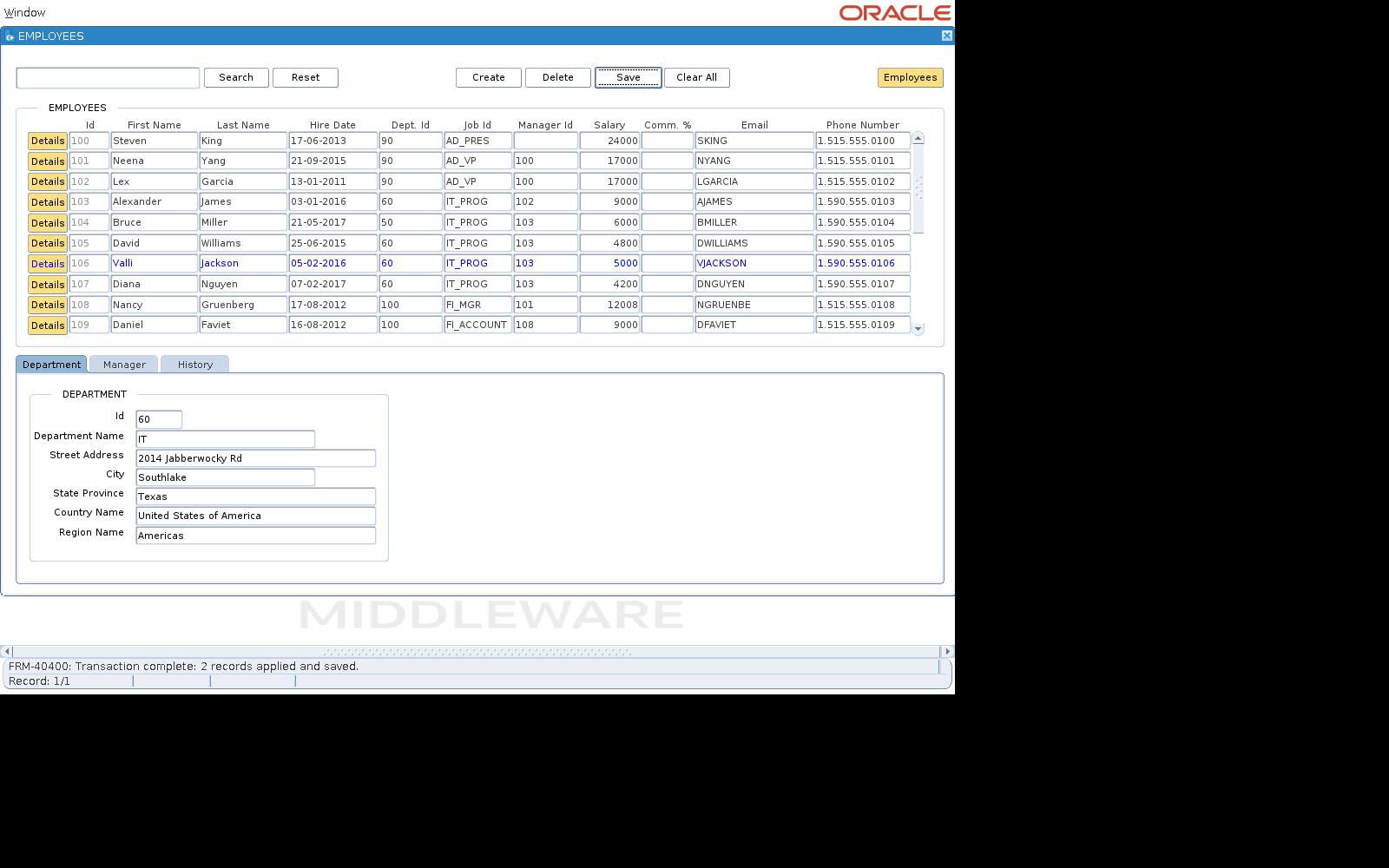

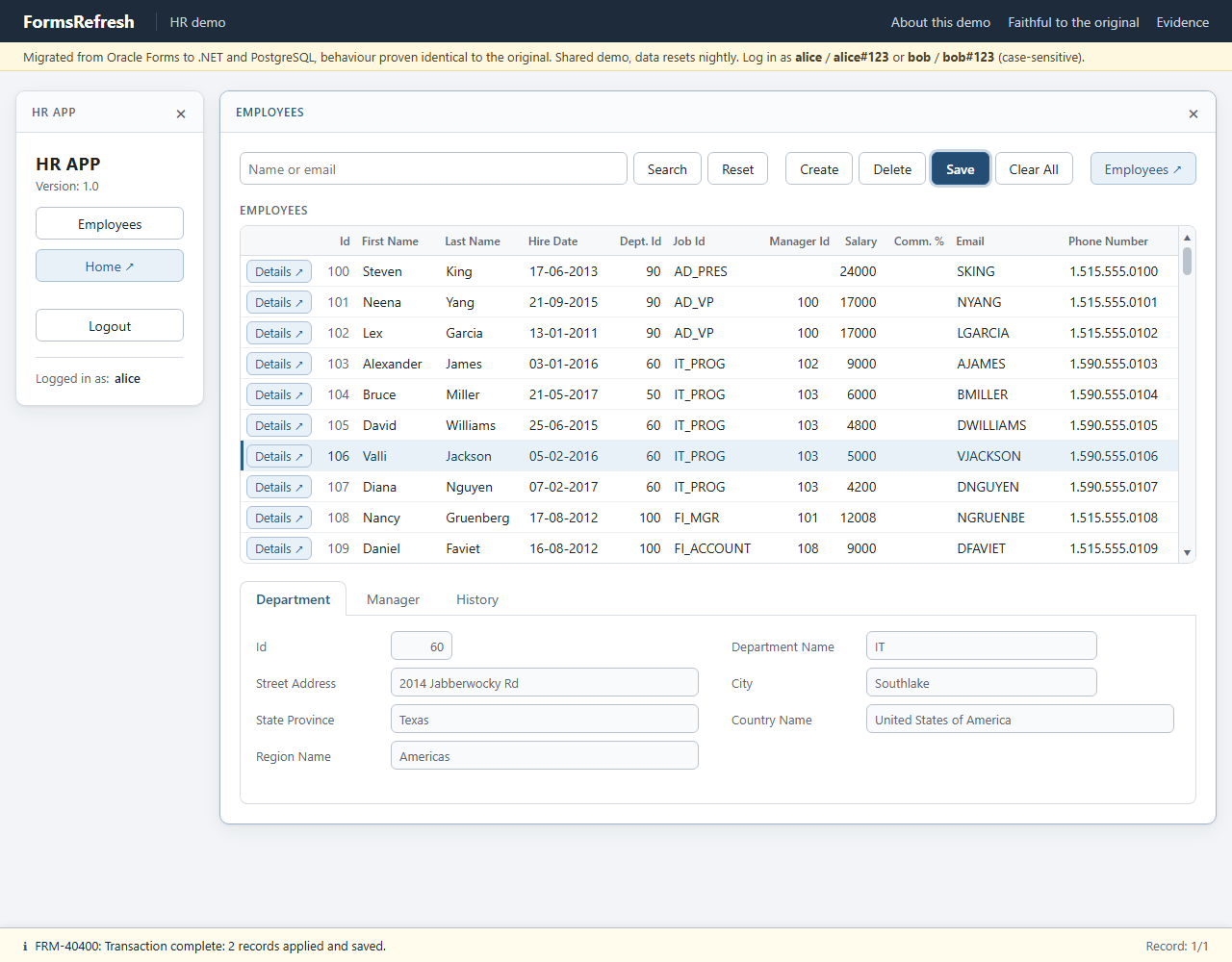

Step 6: save

Original (Oracle Forms 14.1.2), step 06-save — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 06-save — Migrated (.NET, PostgreSQL)

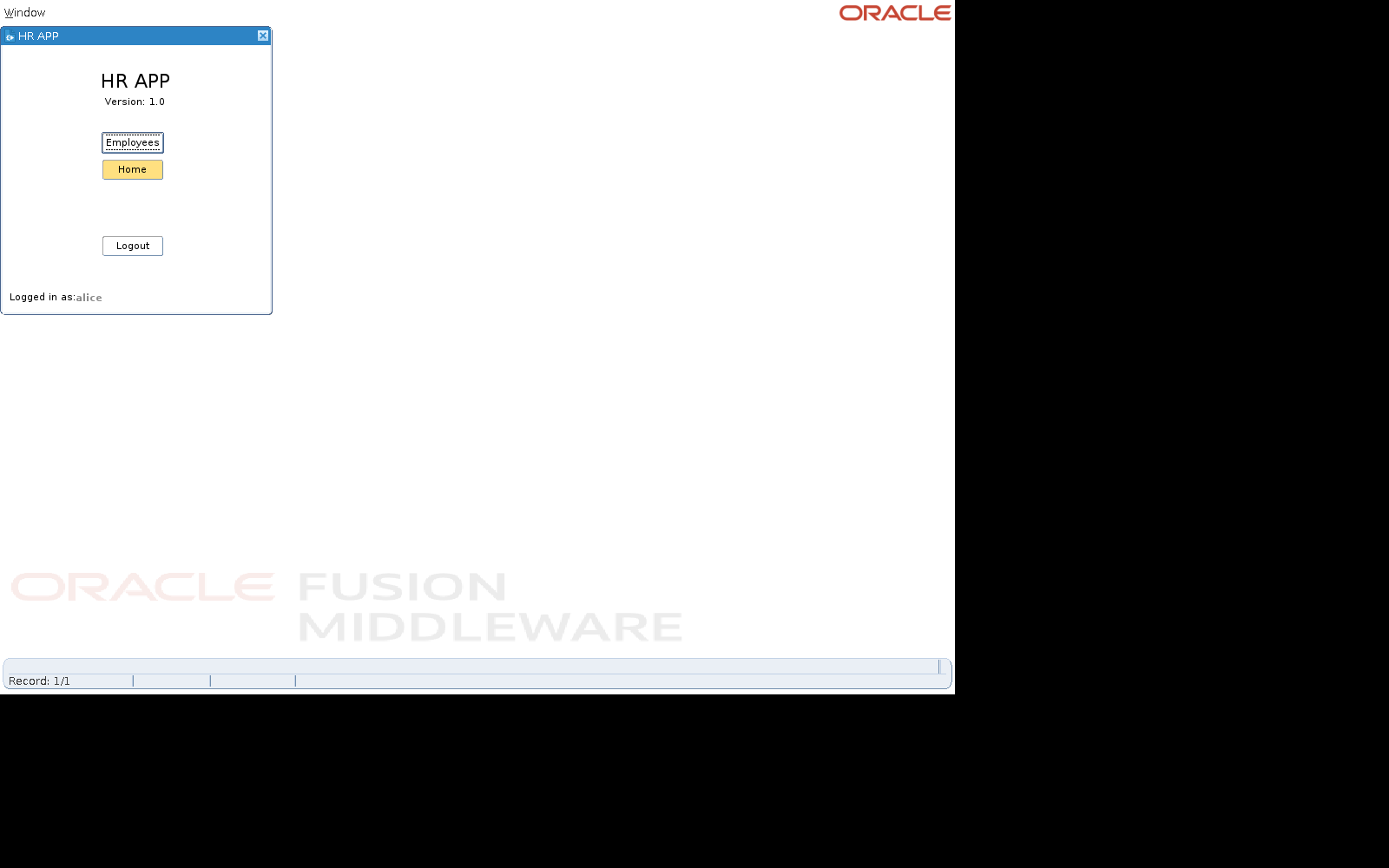

Step 7: close employees

Original (Oracle Forms 14.1.2), step 07-close-employees — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 07-close-employees — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed	Message line	Expect
0		`Open form login`	`LOGIN.USERNAME[0]`
1		`Type LOGIN.USERNAME = alice, LOGIN.PASSWORD = alice#123`	`LOGIN.PASSWORD[0]`	`LOGIN.PASSWORD[0]` = alice#123 `LOGIN.USERNAME[0]` = alice
2	login	`Click LOGIN.LOGIN`	`CONSOLE.EMPLOYEES[0]`	`CONSOLE.USERNAME[0]` = alice
3	employees	`Click CONSOLE.EMPLOYEES`	`EMPLOYEES.APEX[0]`	`DEPARTMENT.CITY[0]` = Seattle `DEPARTMENT.COUNTRY_NAME[0]` = United States of America `DEPARTMENT.DEPARTMENT_ID[0]` = 90 `DEPARTMENT.DEPARTMENT_NAME[0]` = Executive `DEPARTMENT.REGION_NAME[0]` = Americas `DEPARTMENT.STATE_PROVINCE[0]` = Washington `DEPARTMENT.STREET_ADDRESS[0]` = 2004 Charade Rd `EMPLOYEES.DEPARTMENT_ID[0]` = 90 `EMPLOYEES.DEPARTMENT_ID[1]` = 90 `EMPLOYEES.DEPARTMENT_ID[2]` = 90 `EMPLOYEES.DEPARTMENT_ID[3]` = 60 `EMPLOYEES.DEPARTMENT_ID[4]` = 60 `EMPLOYEES.DEPARTMENT_ID[5]` = 60 `EMPLOYEES.DEPARTMENT_ID[6]` = 60 `EMPLOYEES.DEPARTMENT_ID[7]` = 60 `EMPLOYEES.DEPARTMENT_ID[8]` = 100 `EMPLOYEES.DEPARTMENT_ID[9]` = 100 `EMPLOYEES.EMAIL[0]` = SKING `EMPLOYEES.EMAIL[1]` = NYANG `EMPLOYEES.EMAIL[2]` = LGARCIA `EMPLOYEES.EMAIL[3]` = AJAMES `EMPLOYEES.EMAIL[4]` = BMILLER `EMPLOYEES.EMAIL[5]` = DWILLIAMS `EMPLOYEES.EMAIL[6]` = VJACKSON `EMPLOYEES.EMAIL[7]` = DNGUYEN `EMPLOYEES.EMAIL[8]` = NGRUENBE `EMPLOYEES.EMAIL[9]` = DFAVIET `EMPLOYEES.EMPLOYEE_ID[0]` = 100 `EMPLOYEES.EMPLOYEE_ID[1]` = 101 `EMPLOYEES.EMPLOYEE_ID[2]` = 102 `EMPLOYEES.EMPLOYEE_ID[3]` = 103 `EMPLOYEES.EMPLOYEE_ID[4]` = 104 `EMPLOYEES.EMPLOYEE_ID[5]` = 105 `EMPLOYEES.EMPLOYEE_ID[6]` = 106 `EMPLOYEES.EMPLOYEE_ID[7]` = 107 `EMPLOYEES.EMPLOYEE_ID[8]` = 108 `EMPLOYEES.EMPLOYEE_ID[9]` = 109 `EMPLOYEES.FIRST_NAME[0]` = Steven `EMPLOYEES.FIRST_NAME[1]` = Neena `EMPLOYEES.FIRST_NAME[2]` = Lex `EMPLOYEES.FIRST_NAME[3]` = Alexander `EMPLOYEES.FIRST_NAME[4]` = Bruce `EMPLOYEES.FIRST_NAME[5]` = David `EMPLOYEES.FIRST_NAME[6]` = Valli `EMPLOYEES.FIRST_NAME[7]` = Diana `EMPLOYEES.FIRST_NAME[8]` = Nancy `EMPLOYEES.FIRST_NAME[9]` = Daniel `EMPLOYEES.HIRE_DATE[0]` = 17-06-2013 `EMPLOYEES.HIRE_DATE[1]` = 21-09-2015 `EMPLOYEES.HIRE_DATE[2]` = 13-01-2011 `EMPLOYEES.HIRE_DATE[3]` = 03-01-2016 `EMPLOYEES.HIRE_DATE[4]` = 21-05-2017 `EMPLOYEES.HIRE_DATE[5]` = 25-06-2015 `EMPLOYEES.HIRE_DATE[6]` = 05-02-2016 `EMPLOYEES.HIRE_DATE[7]` = 07-02-2017 `EMPLOYEES.HIRE_DATE[8]` = 17-08-2012 `EMPLOYEES.HIRE_DATE[9]` = 16-08-2012 `EMPLOYEES.JOB_ID[0]` = AD_PRES `EMPLOYEES.JOB_ID[1]` = AD_VP `EMPLOYEES.JOB_ID[2]` = AD_VP `EMPLOYEES.JOB_ID[3]` = IT_PROG `EMPLOYEES.JOB_ID[4]` = IT_PROG `EMPLOYEES.JOB_ID[5]` = IT_PROG `EMPLOYEES.JOB_ID[6]` = IT_PROG `EMPLOYEES.JOB_ID[7]` = IT_PROG `EMPLOYEES.JOB_ID[8]` = FI_MGR `EMPLOYEES.JOB_ID[9]` = FI_ACCOUNT `EMPLOYEES.LAST_NAME[0]` = King `EMPLOYEES.LAST_NAME[1]` = Yang `EMPLOYEES.LAST_NAME[2]` = Garcia `EMPLOYEES.LAST_NAME[3]` = James `EMPLOYEES.LAST_NAME[4]` = Miller `EMPLOYEES.LAST_NAME[5]` = Williams `EMPLOYEES.LAST_NAME[6]` = Jackson `EMPLOYEES.LAST_NAME[7]` = Nguyen `EMPLOYEES.LAST_NAME[8]` = Gruenberg `EMPLOYEES.LAST_NAME[9]` = Faviet `EMPLOYEES.MANAGER_ID[1]` = 100 `EMPLOYEES.MANAGER_ID[2]` = 100 `EMPLOYEES.MANAGER_ID[3]` = 102 `EMPLOYEES.MANAGER_ID[4]` = 103 `EMPLOYEES.MANAGER_ID[5]` = 103 `EMPLOYEES.MANAGER_ID[6]` = 103 `EMPLOYEES.MANAGER_ID[7]` = 103 `EMPLOYEES.MANAGER_ID[8]` = 101 `EMPLOYEES.MANAGER_ID[9]` = 108 `EMPLOYEES.PHONE_NUMBER[0]` = 1.515.555.0100 `EMPLOYEES.PHONE_NUMBER[1]` = 1.515.555.0101 `EMPLOYEES.PHONE_NUMBER[2]` = 1.515.555.0102 `EMPLOYEES.PHONE_NUMBER[3]` = 1.590.555.0103 `EMPLOYEES.PHONE_NUMBER[4]` = 1.590.555.0104 `EMPLOYEES.PHONE_NUMBER[5]` = 1.590.555.0105 `EMPLOYEES.PHONE_NUMBER[6]` = 1.590.555.0106 `EMPLOYEES.PHONE_NUMBER[7]` = 1.590.555.0107 `EMPLOYEES.PHONE_NUMBER[8]` = 1.515.555.0108 `EMPLOYEES.PHONE_NUMBER[9]` = 1.515.555.0109 `EMPLOYEES.SALARY[0]` = 24000 `EMPLOYEES.SALARY[1]` = 17000 `EMPLOYEES.SALARY[2]` = 17000 `EMPLOYEES.SALARY[3]` = 9000 `EMPLOYEES.SALARY[4]` = 6000 `EMPLOYEES.SALARY[5]` = 4800 `EMPLOYEES.SALARY[6]` = 4800 `EMPLOYEES.SALARY[7]` = 4200 `EMPLOYEES.SALARY[8]` = 12008 `EMPLOYEES.SALARY[9]` = 9000
4	department lov	`List of values on EMPLOYEES.DEPARTMENT_ID[4], pick Department_Name = Shipping`	`EMPLOYEES.DEPARTMENT_ID[4]`	`DEPARTMENT.CITY[0]` = Southlake `DEPARTMENT.DEPARTMENT_ID[0]` = 60 `DEPARTMENT.DEPARTMENT_NAME[0]` = IT `DEPARTMENT.STATE_PROVINCE[0]` = Texas `DEPARTMENT.STREET_ADDRESS[0]` = 2014 Jabberwocky Rd `EMPLOYEES.DEPARTMENT_ID[4]` = 50		pass
5		`Type EMPLOYEES.SALARY[6] = 5000`	`EMPLOYEES.SALARY[6]`	`EMPLOYEES.SALARY[6]` = 5000
6	save	`Click BUTTONS.SAVE_BUTTON`	`BUTTONS.SAVE_BUTTON[0]`		FRM-40400: Transaction complete: 2 records applied and saved.
7	close employees	`Click EMPLOYEES.Close`	`CONSOLE.EMPLOYEES[0]`

Database effects

EMPLOYEES updated: {"key": {"EMPLOYEE_ID": 104}, "changed": {"DEPARTMENT_ID": {"before": 60, "after": 50}}}
EMPLOYEES updated: {"key": {"EMPLOYEE_ID": 106}, "changed": {"SALARY": {"before": 4800, "after": 5000}}}
JOB_HISTORY inserted: {"EMPLOYEE_ID": 104, "START_DATE": "2017-05-21T00:00:00", "END_DATE": "<clock>", "JOB_ID": "IT_PROG", "DEPARTMENT_ID": 60}

Classified diff against the migrated app

Diff: employees-change-department
counts: match 551, tolerated 1, waived 0, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  H1 [proposed] APEX links fail with FRM-92022 instead of opening the page: applied to 0 value(s)
  H2 [proposed] Department tab keeps the previous department number: applied to 0 value(s)

[tolerated] ui.seen.lov.rows  rule=unfetched_rows  (19 of 27 source rows not fetched by the client)  x1

Waivers

No waiver applies to this scenario: every compared value matches or is within the tolerance policy.
