HR application / employees-clear

employees-clear

Clear All with no change does nothing; after an edit CONFIRM_CLEAR asks, Cancel keeps it and OK discards it.

0defects
921values match
0tolerated by policy
0waived
0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#StepActionChecked on the original
0Open form login
1Type LOGIN.USERNAME = alice, LOGIN.PASSWORD = alice#123
2loginClick LOGIN.LOGIN
3employeesClick CONSOLE.EMPLOYEES
4clear unchangedClick BUTTONS.CLEAR_BUTTON
5Type EMPLOYEES.SALARY[2] = 1
6clear changedClick BUTTONS.CLEAR_BUTTON
7keepAnswer the alert Cancel
8clear againClick BUTTONS.CLEAR_BUTTON
9discardAnswer the alert OK

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

Step 0: open login

Original (Oracle Forms 14.1.2), step 00-open
Original (Oracle Forms 14.1.2)

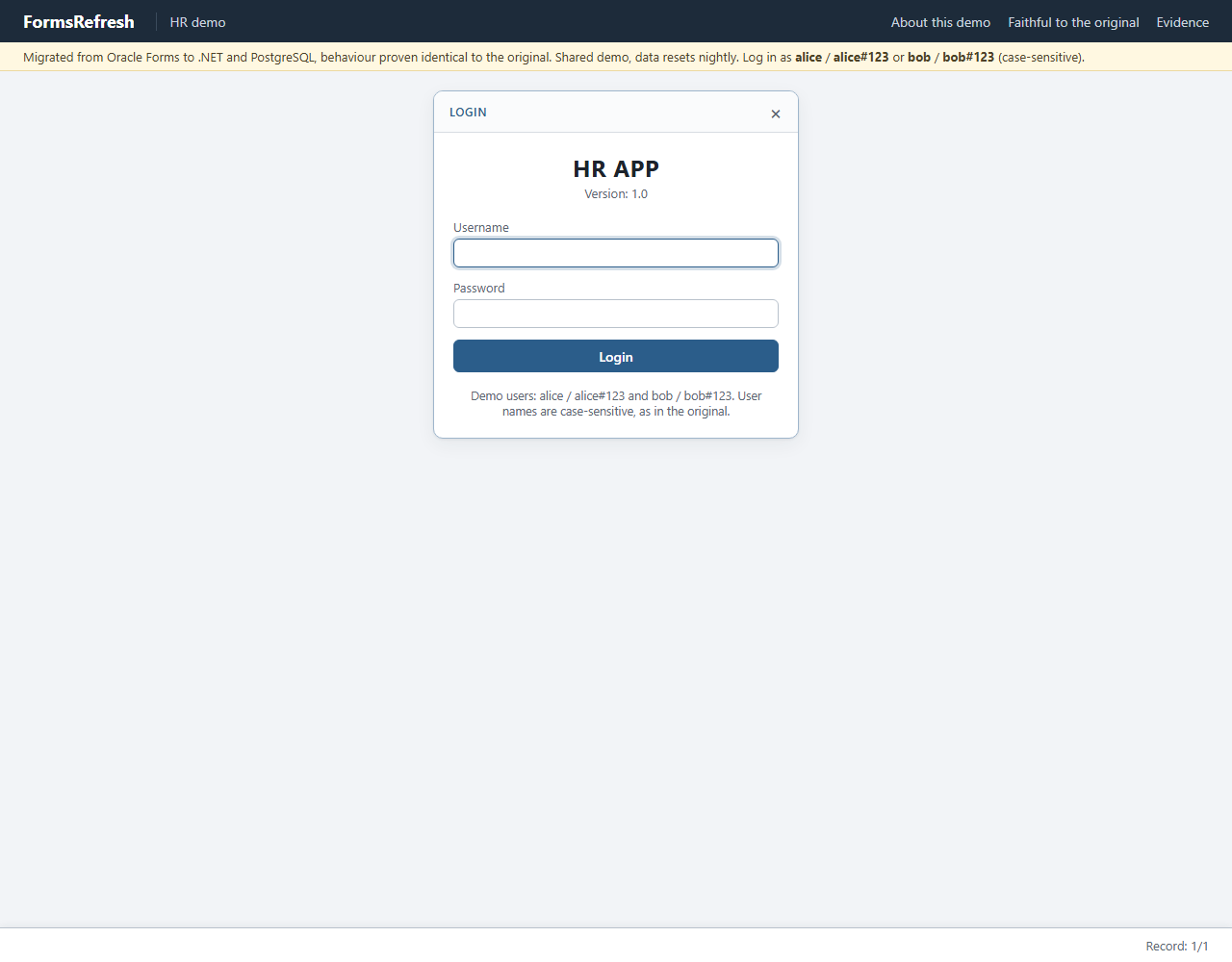

Migrated (.NET, PostgreSQL), step 00-open
Migrated (.NET, PostgreSQL)

Step 1: type

Original (Oracle Forms 14.1.2), step 01-type
Original (Oracle Forms 14.1.2)

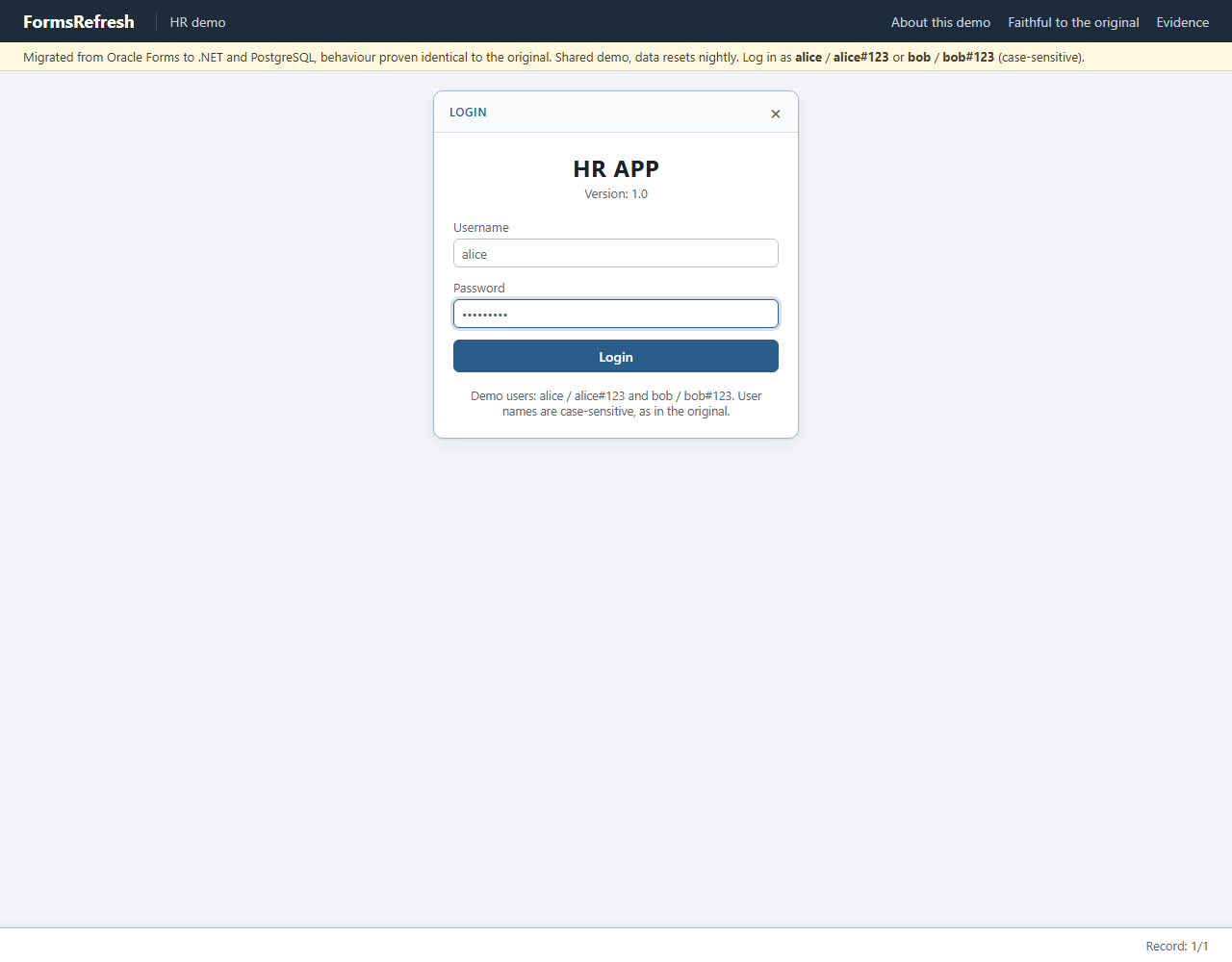

Migrated (.NET, PostgreSQL), step 01-type
Migrated (.NET, PostgreSQL)

Step 2: login

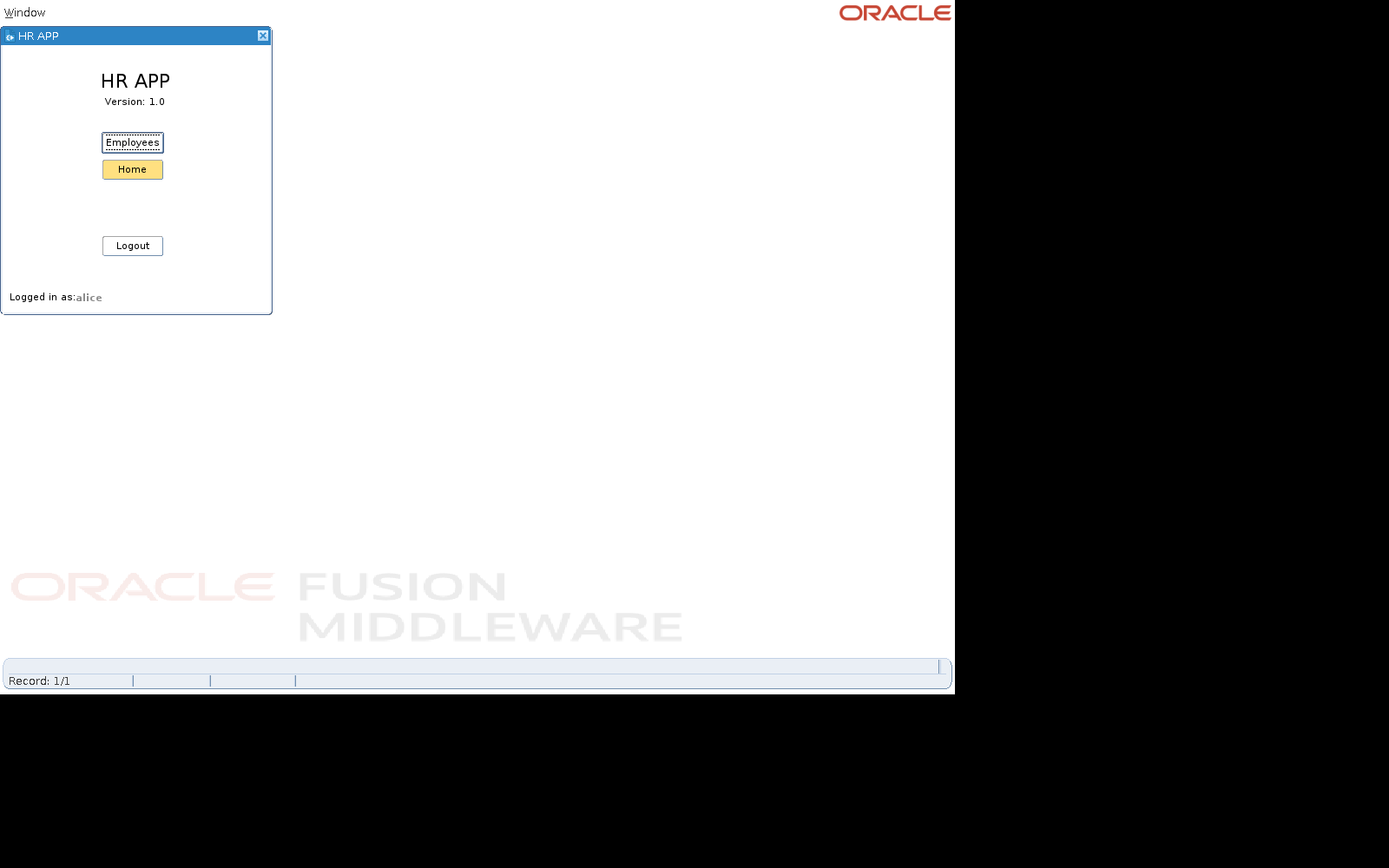

Original (Oracle Forms 14.1.2), step 02-login
Original (Oracle Forms 14.1.2)

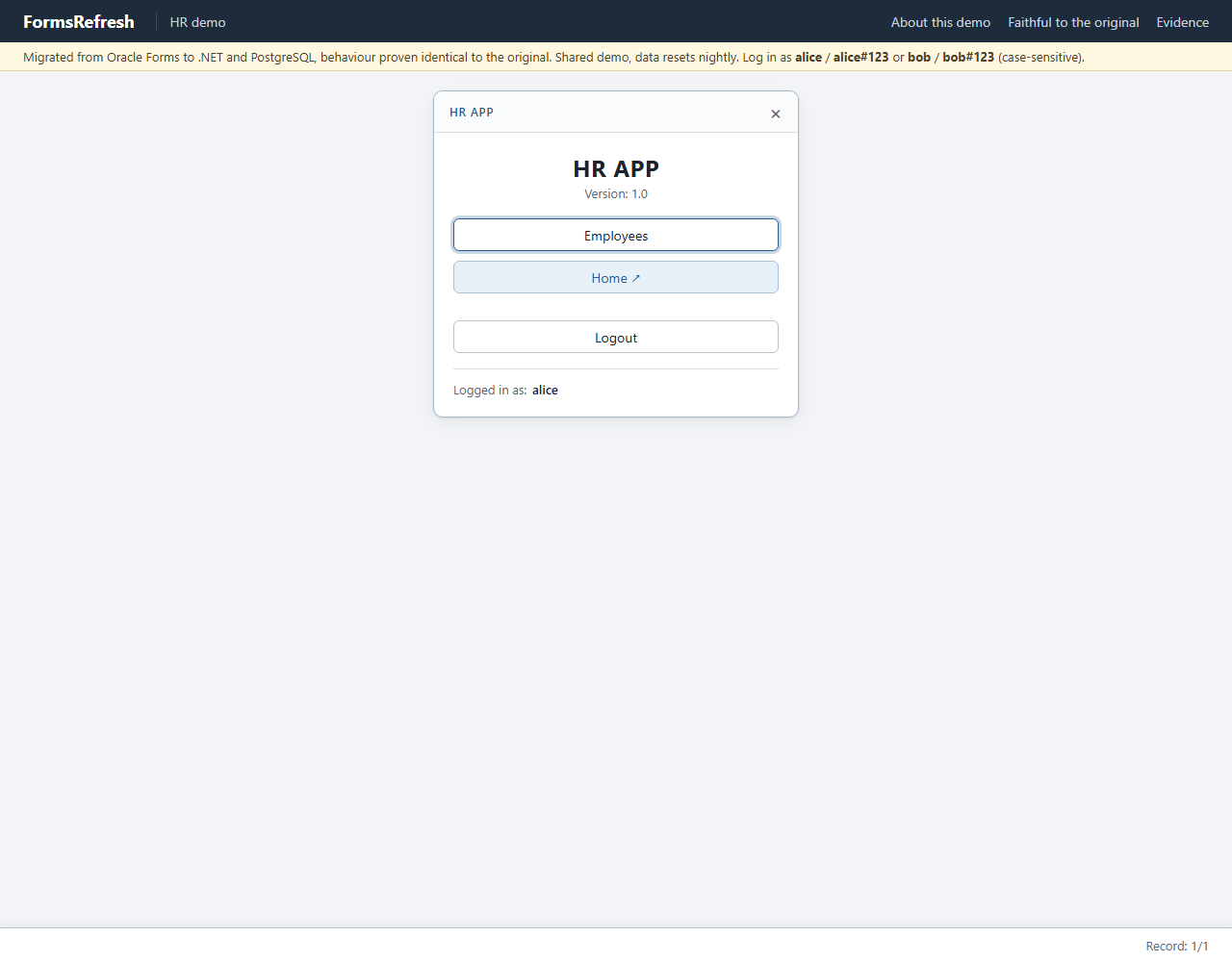

Migrated (.NET, PostgreSQL), step 02-login
Migrated (.NET, PostgreSQL)

Step 3: employees

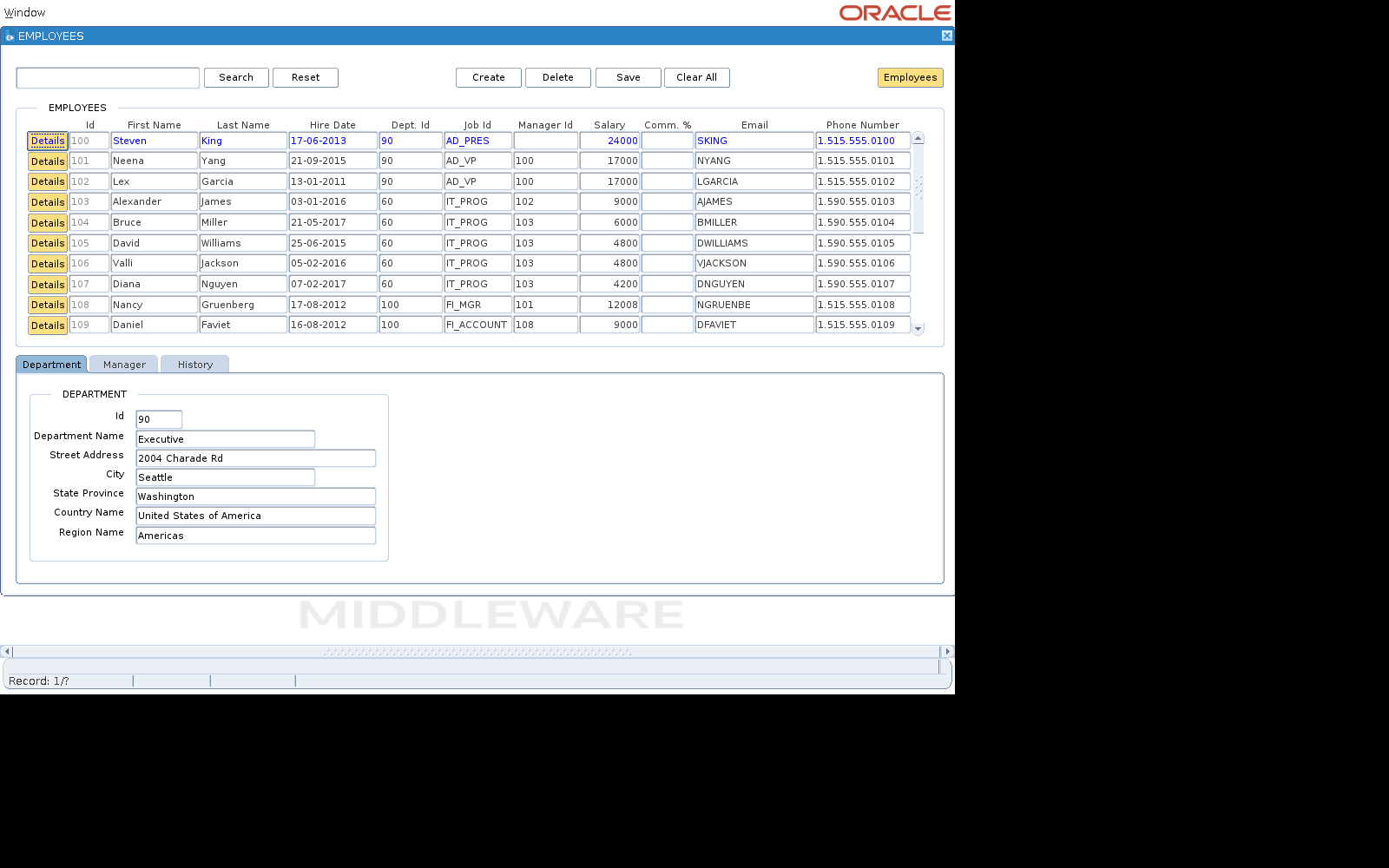

Original (Oracle Forms 14.1.2), step 03-employees
Original (Oracle Forms 14.1.2)

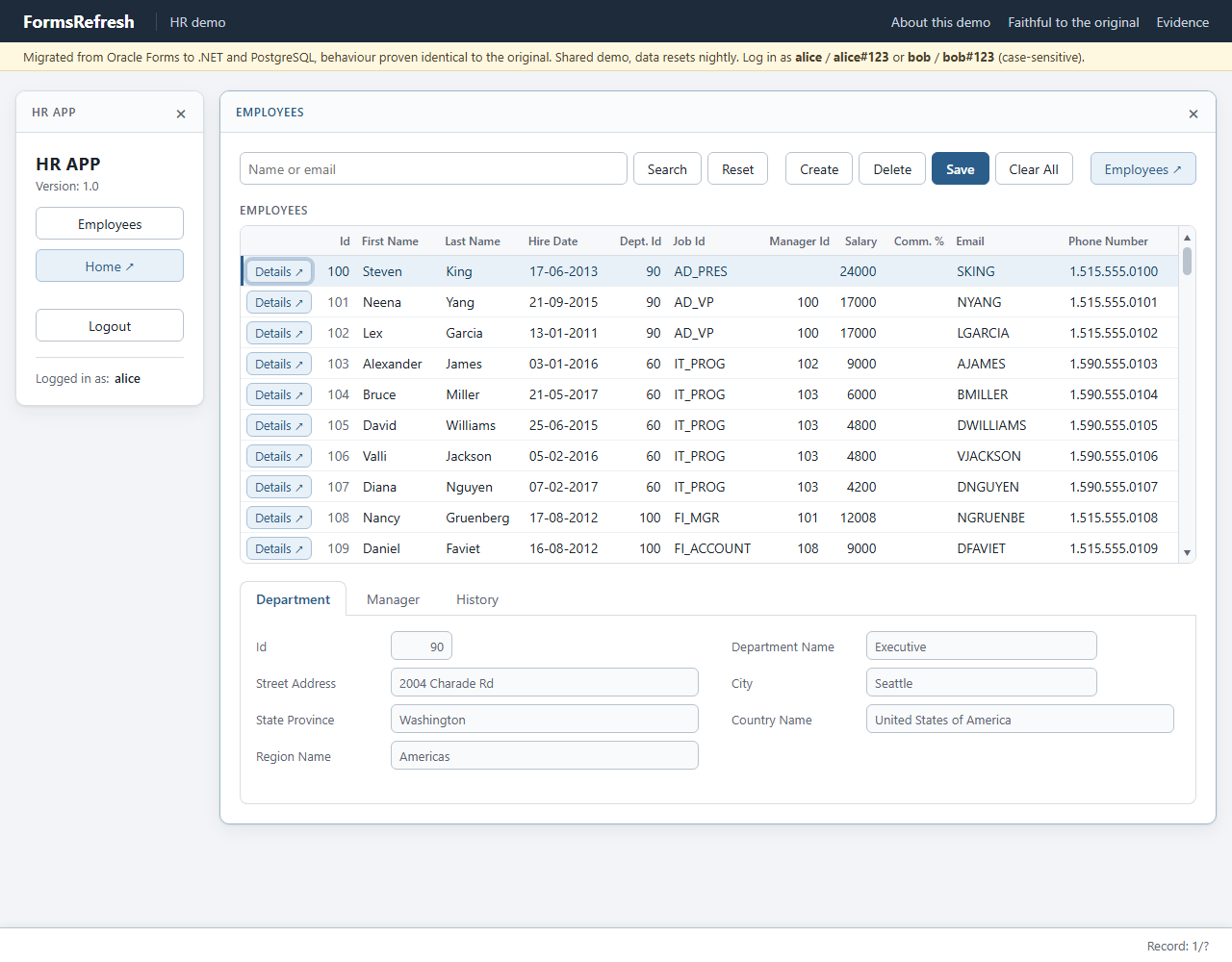

Migrated (.NET, PostgreSQL), step 03-employees
Migrated (.NET, PostgreSQL)

Step 4: clear unchanged

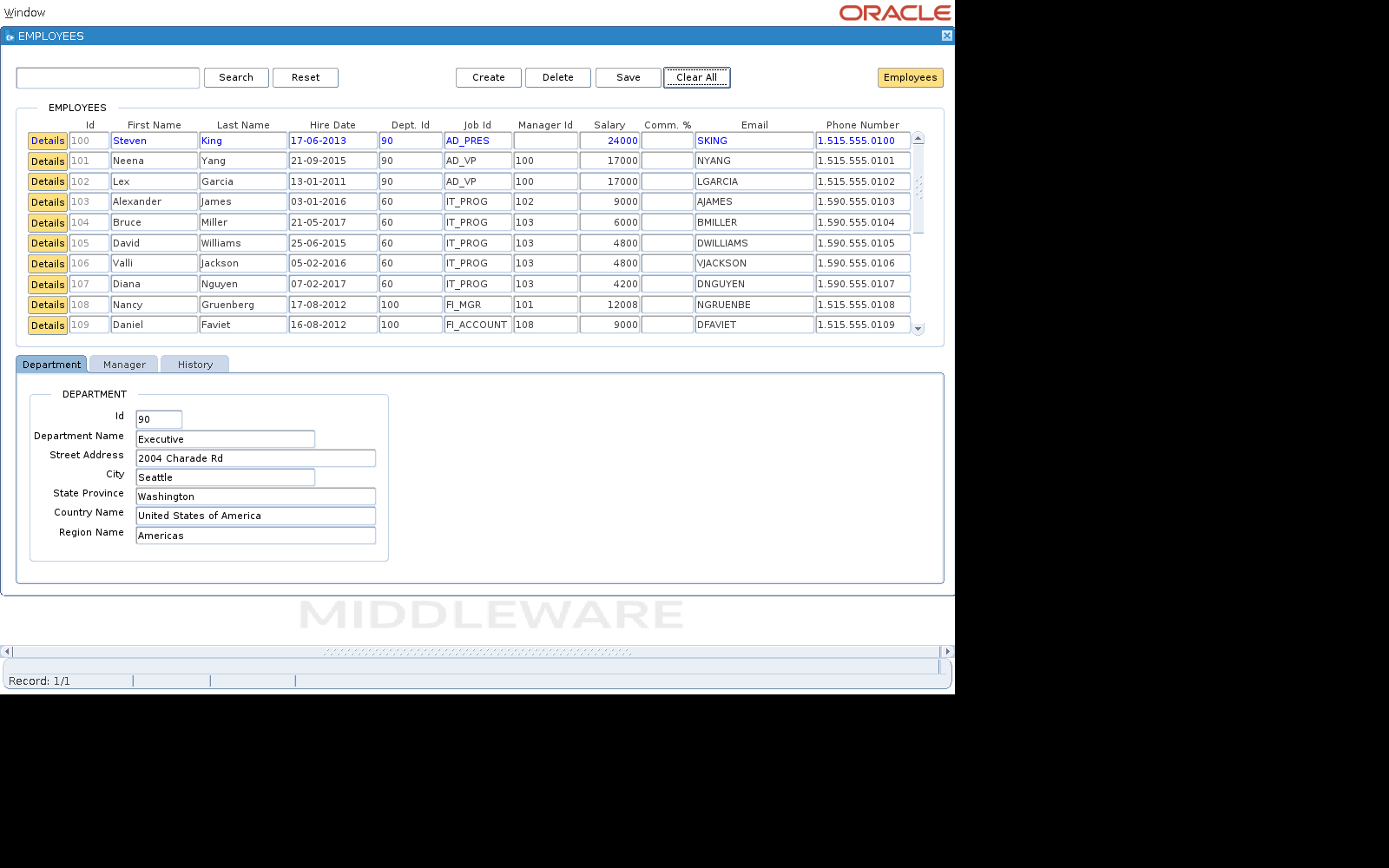

Original (Oracle Forms 14.1.2), step 04-clear-unchanged
Original (Oracle Forms 14.1.2)

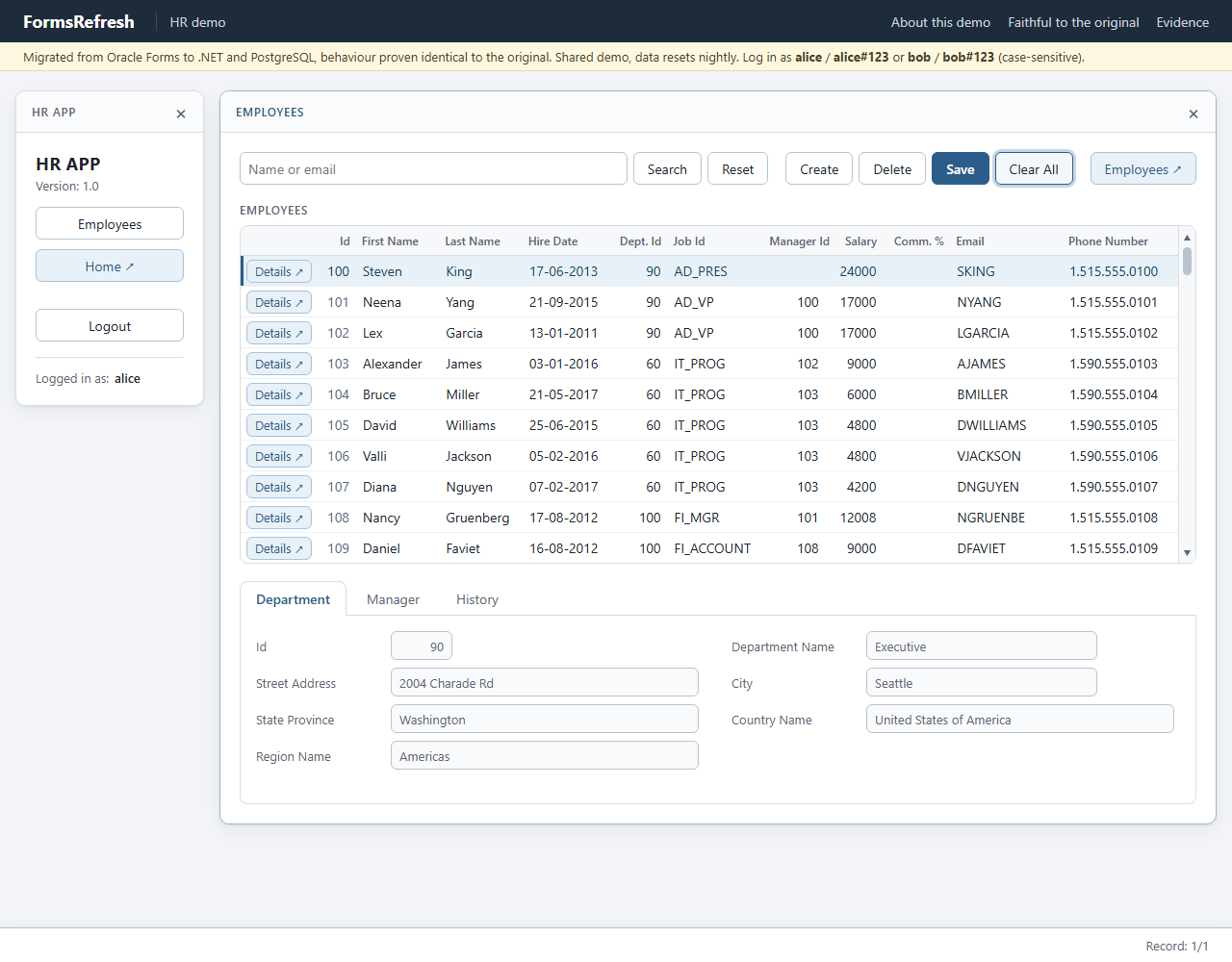

Migrated (.NET, PostgreSQL), step 04-clear-unchanged
Migrated (.NET, PostgreSQL)

Step 5: type

Original (Oracle Forms 14.1.2), step 05-type
Original (Oracle Forms 14.1.2)
Migrated (.NET, PostgreSQL), step 05-type
Migrated (.NET, PostgreSQL)

Step 6: clear changed

Original (Oracle Forms 14.1.2), step 06-clear-changed
Original (Oracle Forms 14.1.2)

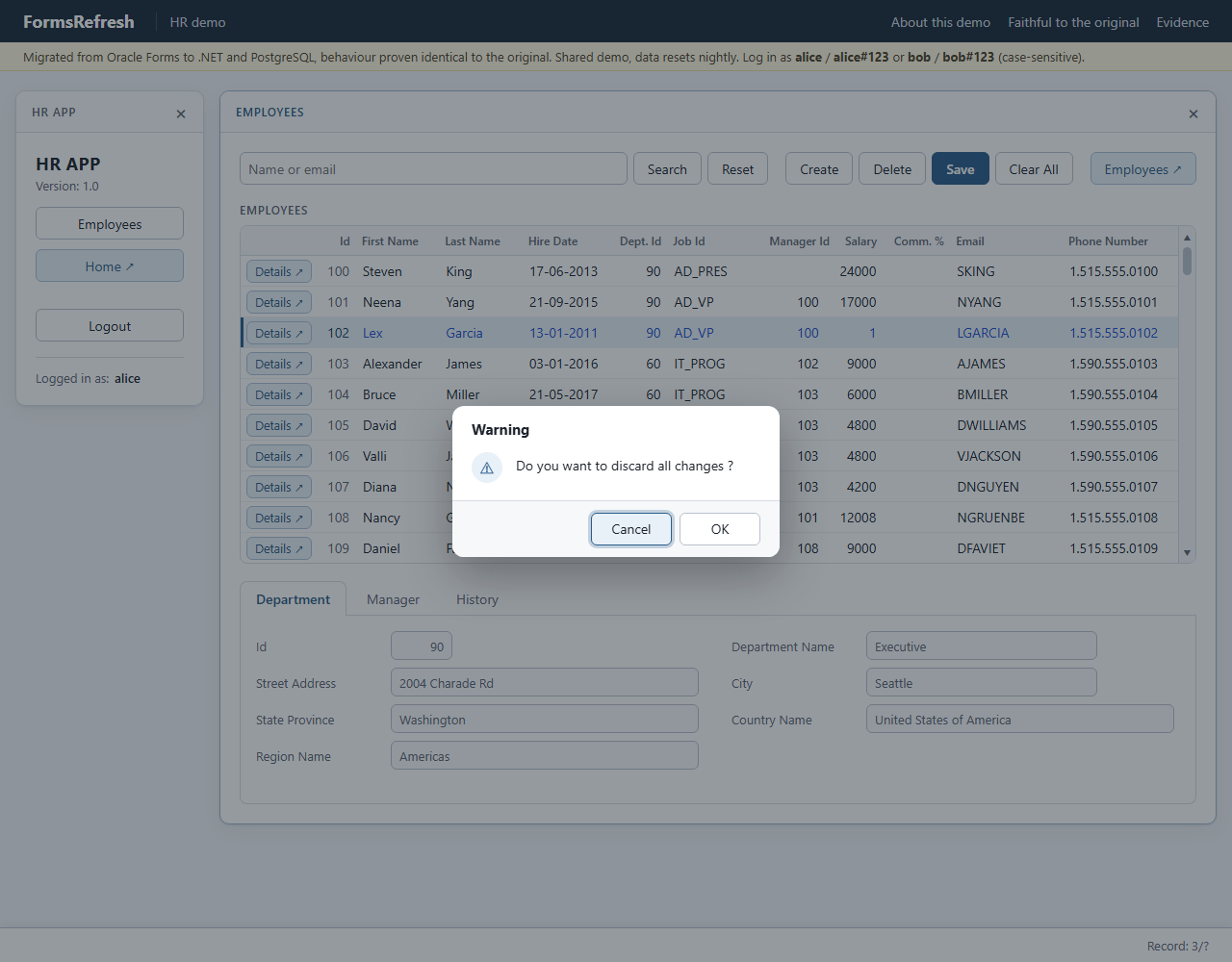

Migrated (.NET, PostgreSQL), step 06-clear-changed
Migrated (.NET, PostgreSQL)

Step 7: keep

Original (Oracle Forms 14.1.2), step 07-keep
Original (Oracle Forms 14.1.2)

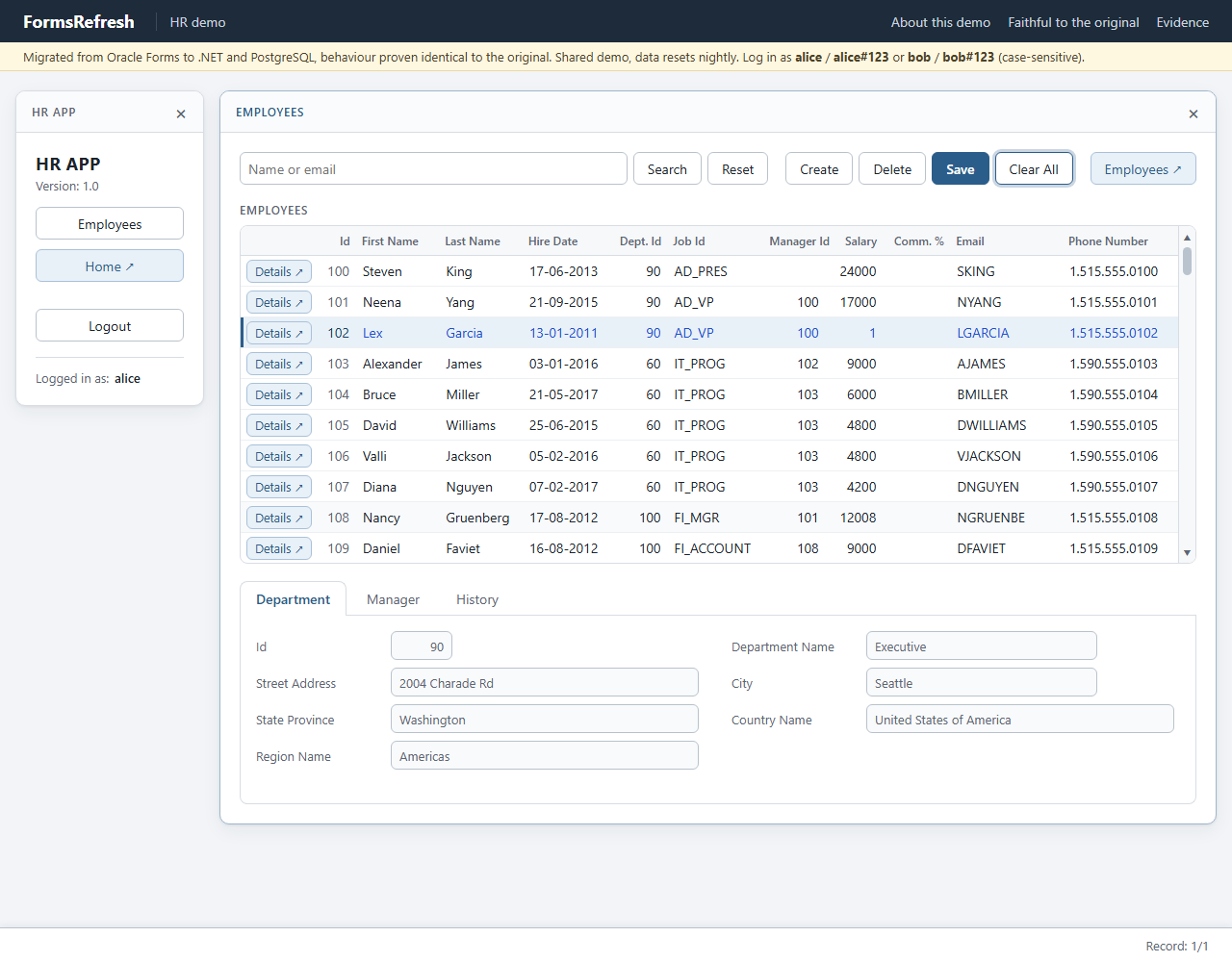

Migrated (.NET, PostgreSQL), step 07-keep
Migrated (.NET, PostgreSQL)

Step 8: clear again

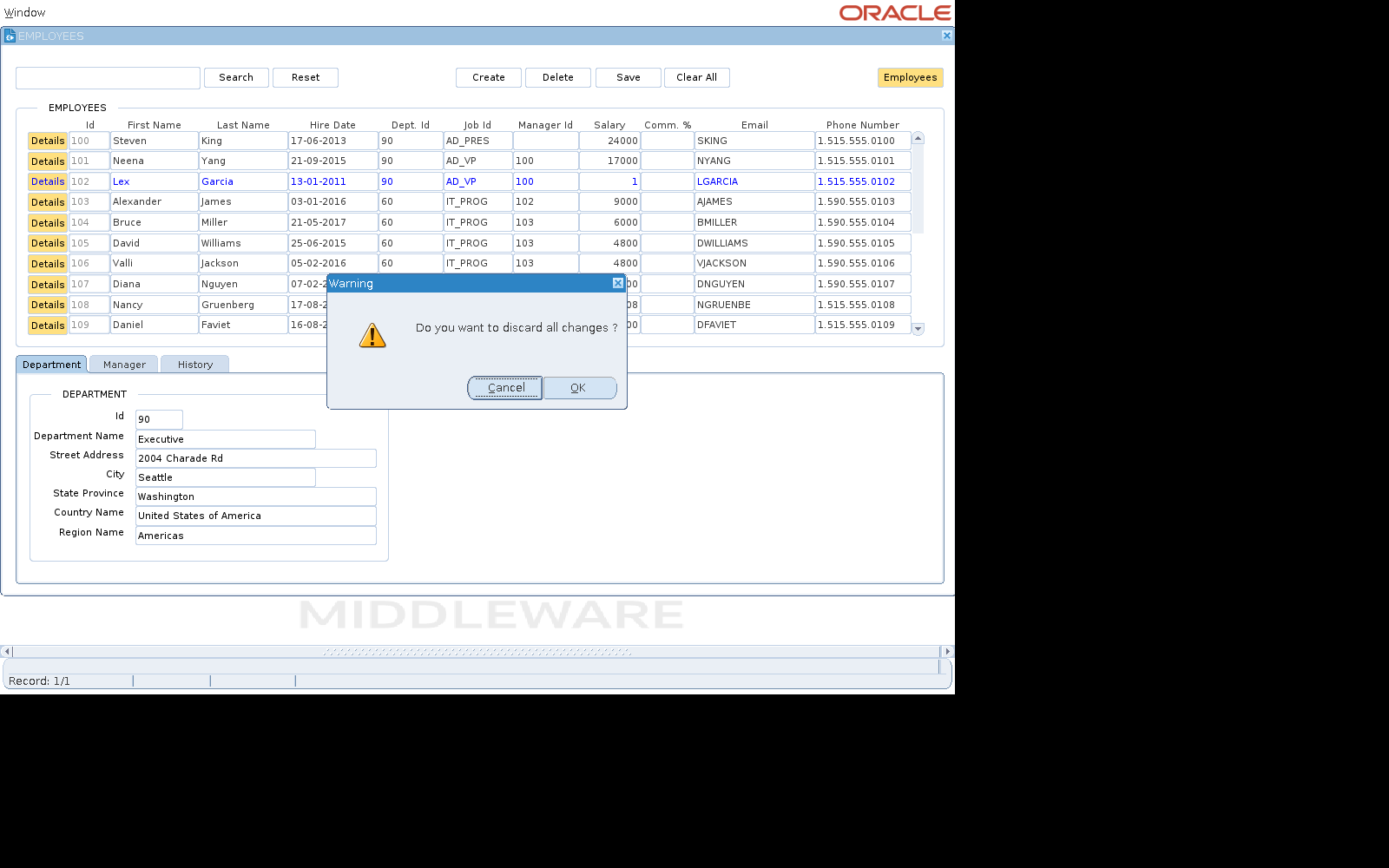

Original (Oracle Forms 14.1.2), step 08-clear-again
Original (Oracle Forms 14.1.2)
Migrated (.NET, PostgreSQL), step 08-clear-again
Migrated (.NET, PostgreSQL)

Step 9: discard

Original (Oracle Forms 14.1.2), step 09-discard
Original (Oracle Forms 14.1.2)
Migrated (.NET, PostgreSQL), step 09-discard
Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#StepAction (by name)Focus afterDisplayed values that changedMessage lineAlertExpect
0Open form loginLOGIN.USERNAME[0]
1Type LOGIN.USERNAME = alice, LOGIN.PASSWORD = alice#123LOGIN.PASSWORD[0]LOGIN.PASSWORD[0] = alice#123
LOGIN.USERNAME[0] = alice
2loginClick LOGIN.LOGINCONSOLE.EMPLOYEES[0]CONSOLE.USERNAME[0] = alice
3employeesClick CONSOLE.EMPLOYEESEMPLOYEES.APEX[0]DEPARTMENT.CITY[0] = Seattle
DEPARTMENT.COUNTRY_NAME[0] = United States of America
DEPARTMENT.DEPARTMENT_ID[0] = 90
DEPARTMENT.DEPARTMENT_NAME[0] = Executive
DEPARTMENT.REGION_NAME[0] = Americas
DEPARTMENT.STATE_PROVINCE[0] = Washington
DEPARTMENT.STREET_ADDRESS[0] = 2004 Charade Rd
EMPLOYEES.DEPARTMENT_ID[0] = 90
EMPLOYEES.DEPARTMENT_ID[1] = 90
EMPLOYEES.DEPARTMENT_ID[2] = 90
EMPLOYEES.DEPARTMENT_ID[3] = 60
EMPLOYEES.DEPARTMENT_ID[4] = 60
EMPLOYEES.DEPARTMENT_ID[5] = 60
EMPLOYEES.DEPARTMENT_ID[6] = 60
EMPLOYEES.DEPARTMENT_ID[7] = 60
EMPLOYEES.DEPARTMENT_ID[8] = 100
EMPLOYEES.DEPARTMENT_ID[9] = 100
EMPLOYEES.EMAIL[0] = SKING
EMPLOYEES.EMAIL[1] = NYANG
EMPLOYEES.EMAIL[2] = LGARCIA
EMPLOYEES.EMAIL[3] = AJAMES
EMPLOYEES.EMAIL[4] = BMILLER
EMPLOYEES.EMAIL[5] = DWILLIAMS
EMPLOYEES.EMAIL[6] = VJACKSON
EMPLOYEES.EMAIL[7] = DNGUYEN
EMPLOYEES.EMAIL[8] = NGRUENBE
EMPLOYEES.EMAIL[9] = DFAVIET
EMPLOYEES.EMPLOYEE_ID[0] = 100
EMPLOYEES.EMPLOYEE_ID[1] = 101
EMPLOYEES.EMPLOYEE_ID[2] = 102
EMPLOYEES.EMPLOYEE_ID[3] = 103
EMPLOYEES.EMPLOYEE_ID[4] = 104
EMPLOYEES.EMPLOYEE_ID[5] = 105
EMPLOYEES.EMPLOYEE_ID[6] = 106
EMPLOYEES.EMPLOYEE_ID[7] = 107
EMPLOYEES.EMPLOYEE_ID[8] = 108
EMPLOYEES.EMPLOYEE_ID[9] = 109
EMPLOYEES.FIRST_NAME[0] = Steven
EMPLOYEES.FIRST_NAME[1] = Neena
EMPLOYEES.FIRST_NAME[2] = Lex
EMPLOYEES.FIRST_NAME[3] = Alexander
EMPLOYEES.FIRST_NAME[4] = Bruce
EMPLOYEES.FIRST_NAME[5] = David
EMPLOYEES.FIRST_NAME[6] = Valli
EMPLOYEES.FIRST_NAME[7] = Diana
EMPLOYEES.FIRST_NAME[8] = Nancy
EMPLOYEES.FIRST_NAME[9] = Daniel
EMPLOYEES.HIRE_DATE[0] = 17-06-2013
EMPLOYEES.HIRE_DATE[1] = 21-09-2015
EMPLOYEES.HIRE_DATE[2] = 13-01-2011
EMPLOYEES.HIRE_DATE[3] = 03-01-2016
EMPLOYEES.HIRE_DATE[4] = 21-05-2017
EMPLOYEES.HIRE_DATE[5] = 25-06-2015
EMPLOYEES.HIRE_DATE[6] = 05-02-2016
EMPLOYEES.HIRE_DATE[7] = 07-02-2017
EMPLOYEES.HIRE_DATE[8] = 17-08-2012
EMPLOYEES.HIRE_DATE[9] = 16-08-2012
EMPLOYEES.JOB_ID[0] = AD_PRES
EMPLOYEES.JOB_ID[1] = AD_VP
EMPLOYEES.JOB_ID[2] = AD_VP
EMPLOYEES.JOB_ID[3] = IT_PROG
EMPLOYEES.JOB_ID[4] = IT_PROG
EMPLOYEES.JOB_ID[5] = IT_PROG
EMPLOYEES.JOB_ID[6] = IT_PROG
EMPLOYEES.JOB_ID[7] = IT_PROG
EMPLOYEES.JOB_ID[8] = FI_MGR
EMPLOYEES.JOB_ID[9] = FI_ACCOUNT
EMPLOYEES.LAST_NAME[0] = King
EMPLOYEES.LAST_NAME[1] = Yang
EMPLOYEES.LAST_NAME[2] = Garcia
EMPLOYEES.LAST_NAME[3] = James
EMPLOYEES.LAST_NAME[4] = Miller
EMPLOYEES.LAST_NAME[5] = Williams
EMPLOYEES.LAST_NAME[6] = Jackson
EMPLOYEES.LAST_NAME[7] = Nguyen
EMPLOYEES.LAST_NAME[8] = Gruenberg
EMPLOYEES.LAST_NAME[9] = Faviet
EMPLOYEES.MANAGER_ID[1] = 100
EMPLOYEES.MANAGER_ID[2] = 100
EMPLOYEES.MANAGER_ID[3] = 102
EMPLOYEES.MANAGER_ID[4] = 103
EMPLOYEES.MANAGER_ID[5] = 103
EMPLOYEES.MANAGER_ID[6] = 103
EMPLOYEES.MANAGER_ID[7] = 103
EMPLOYEES.MANAGER_ID[8] = 101
EMPLOYEES.MANAGER_ID[9] = 108
EMPLOYEES.PHONE_NUMBER[0] = 1.515.555.0100
EMPLOYEES.PHONE_NUMBER[1] = 1.515.555.0101
EMPLOYEES.PHONE_NUMBER[2] = 1.515.555.0102
EMPLOYEES.PHONE_NUMBER[3] = 1.590.555.0103
EMPLOYEES.PHONE_NUMBER[4] = 1.590.555.0104
EMPLOYEES.PHONE_NUMBER[5] = 1.590.555.0105
EMPLOYEES.PHONE_NUMBER[6] = 1.590.555.0106
EMPLOYEES.PHONE_NUMBER[7] = 1.590.555.0107
EMPLOYEES.PHONE_NUMBER[8] = 1.515.555.0108
EMPLOYEES.PHONE_NUMBER[9] = 1.515.555.0109
EMPLOYEES.SALARY[0] = 24000
EMPLOYEES.SALARY[1] = 17000
EMPLOYEES.SALARY[2] = 17000
EMPLOYEES.SALARY[3] = 9000
EMPLOYEES.SALARY[4] = 6000
EMPLOYEES.SALARY[5] = 4800
EMPLOYEES.SALARY[6] = 4800
EMPLOYEES.SALARY[7] = 4200
EMPLOYEES.SALARY[8] = 12008
EMPLOYEES.SALARY[9] = 9000
4clear unchangedClick BUTTONS.CLEAR_BUTTONBUTTONS.CLEAR_BUTTON[0]
5Type EMPLOYEES.SALARY[2] = 1EMPLOYEES.SALARY[2]EMPLOYEES.SALARY[2] = 1
6clear changedClick BUTTONS.CLEAR_BUTTONCONFIRM_CLEAR/PushButton:CancelDo you want to discard all changes ?
7keepAnswer the alert CancelBUTTONS.CLEAR_BUTTON[0]
8clear againClick BUTTONS.CLEAR_BUTTONCONFIRM_CLEAR/PushButton:CancelDo you want to discard all changes ?
9discardAnswer the alert OKEMPLOYEES.APEX[0]EMPLOYEES.SALARY[2] = 17000

Database effects

None: the scenario changes no row and draws no sequence value.

Classified diff against the migrated app

Diff: employees-clear
counts: match 921, tolerated 0, waived 0, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  H1 [proposed] APEX links fail with FRM-92022 instead of opening the page: applied to 0 value(s)
  H2 [proposed] Department tab keeps the previous department number: applied to 0 value(s)

Waivers

No waiver applies to this scenario: every compared value matches or is within the tolerance policy.
