HR application / employees-search

employees-search

Search employees by a name fragment (the first hit has no department, so its DEPARTMENT detail is not queried), Reset back to the full list, then Search with an empty field.

0defects

660values match

0tolerated by policy

1waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action
0		Open form `login`
1		Type `LOGIN.USERNAME` = alice, `LOGIN.PASSWORD` = alice#123
2	login	Click `LOGIN.LOGIN`
3	employees	Click `CONSOLE.EMPLOYEES`
4		Type `BUTTONS.SEARCH_FIELD` = grant
5	search	Click `BUTTONS.SEARCH_BUTTON`
6	reset	Click `BUTTONS.RESET_BUTTON`
7	search empty	Click `BUTTONS.SEARCH_BUTTON`

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

Step 0: open login

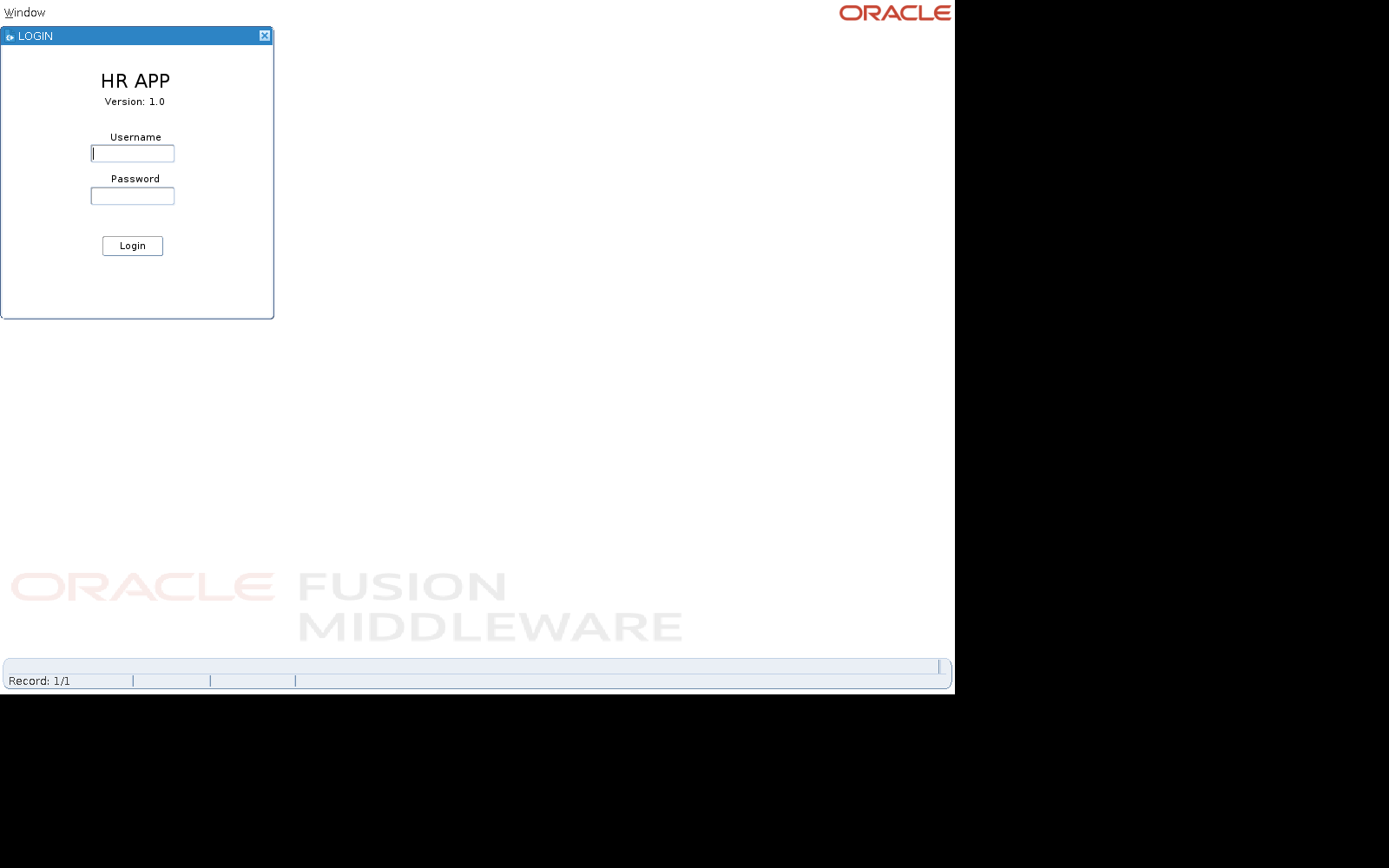

Original (Oracle Forms 14.1.2), step 00-open — Original (Oracle Forms 14.1.2)

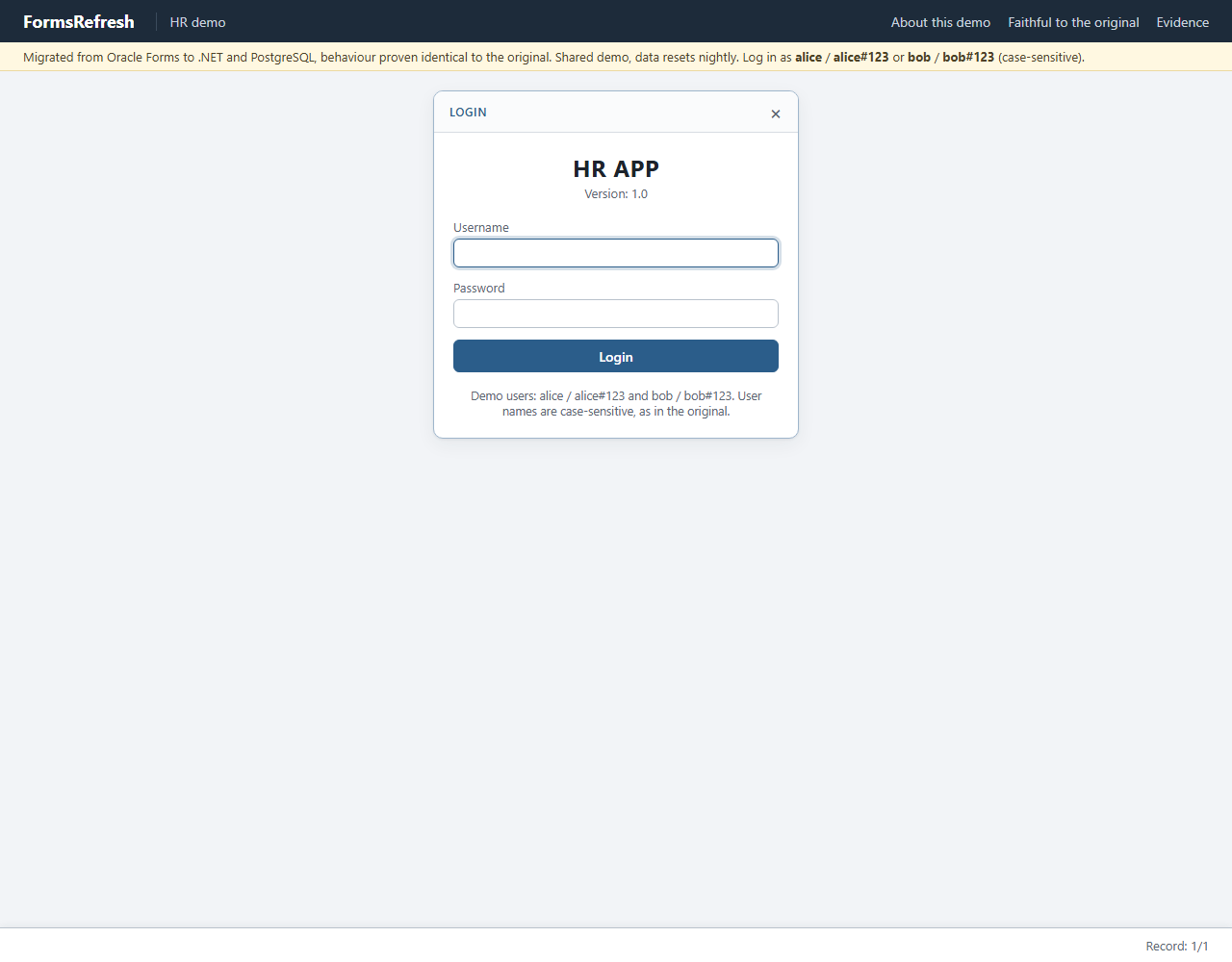

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

Step 1: type

Original (Oracle Forms 14.1.2), step 01-type — Original (Oracle Forms 14.1.2)

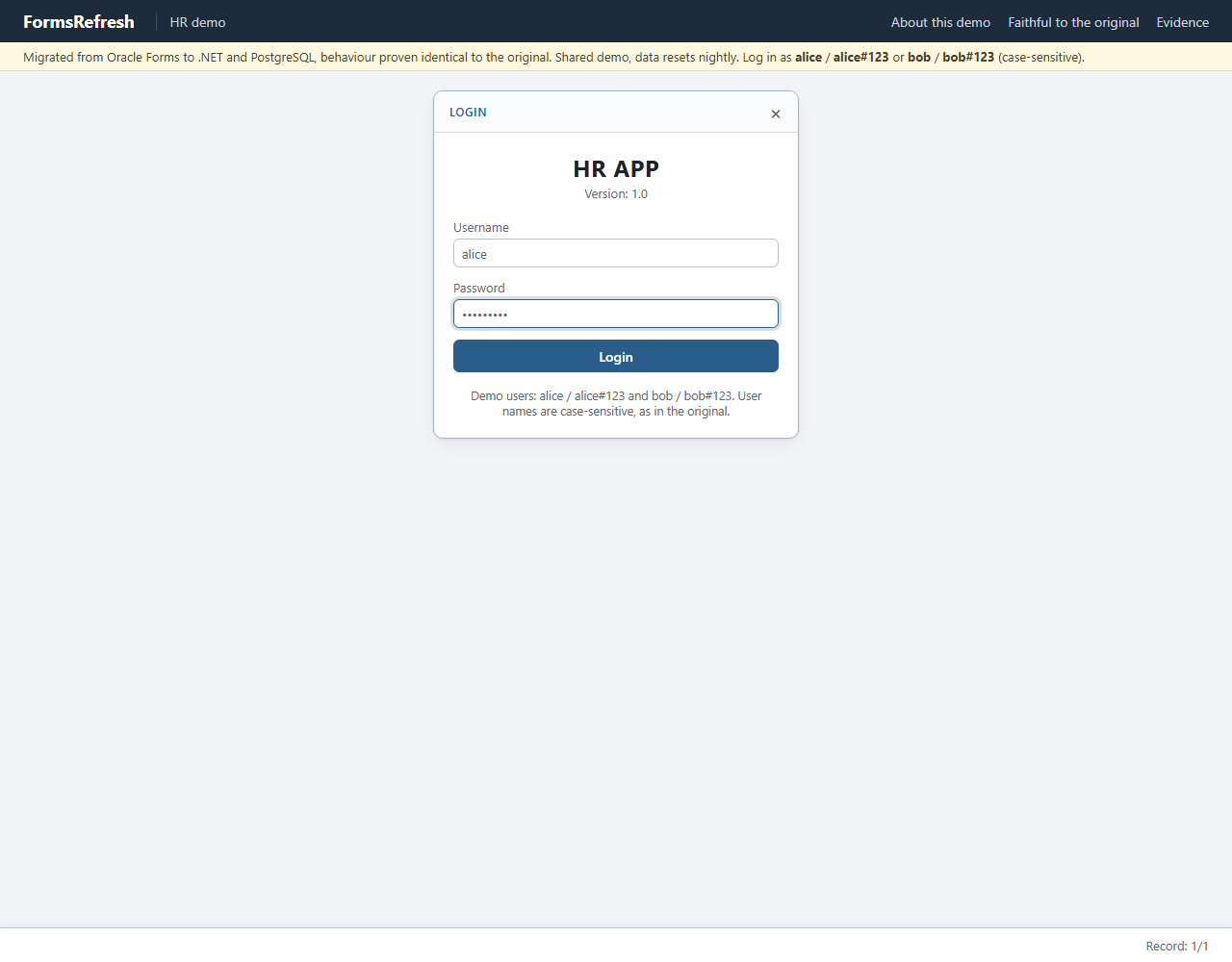

Migrated (.NET, PostgreSQL), step 01-type — Migrated (.NET, PostgreSQL)

Step 2: login

Original (Oracle Forms 14.1.2), step 02-login — Original (Oracle Forms 14.1.2)

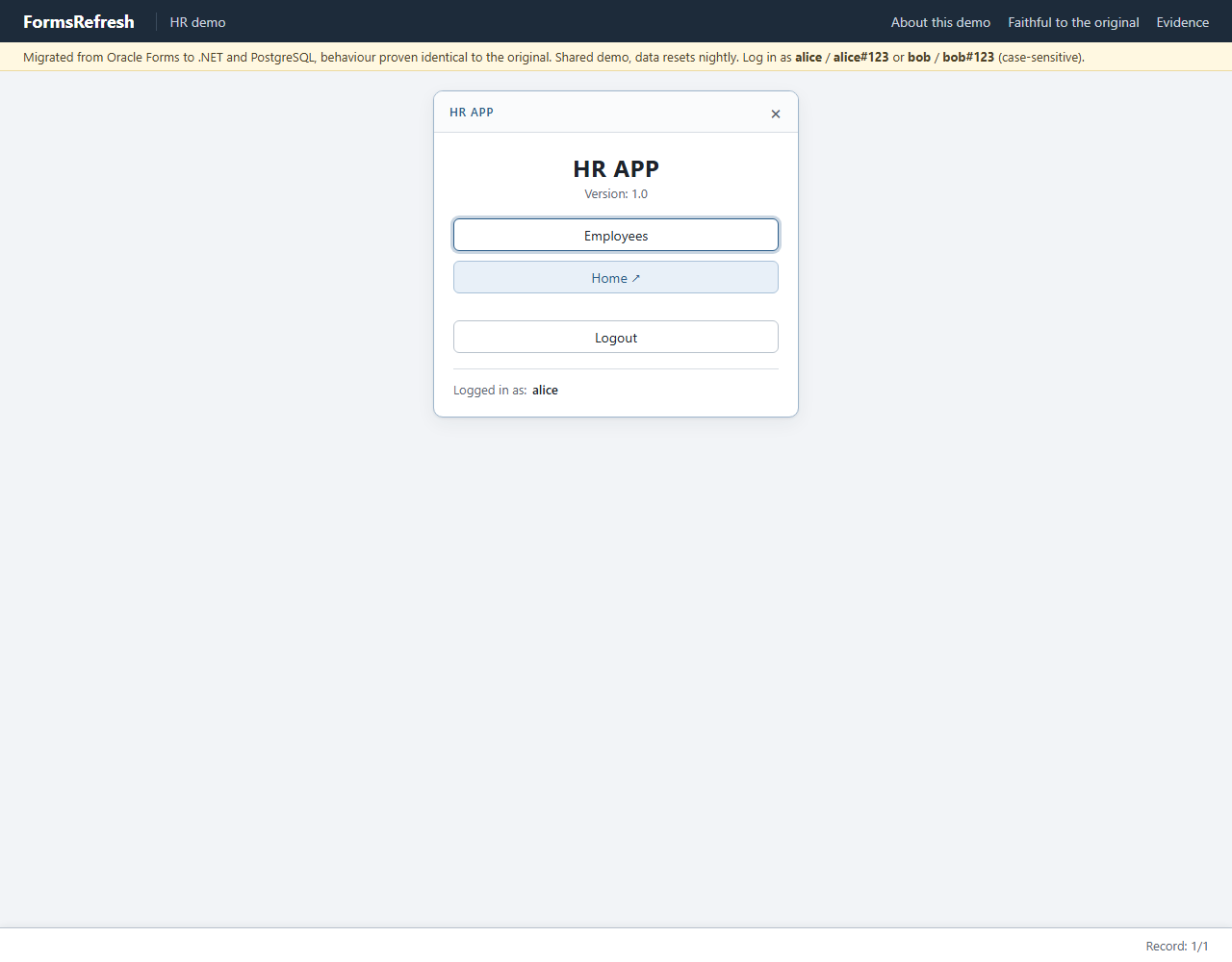

Migrated (.NET, PostgreSQL), step 02-login — Migrated (.NET, PostgreSQL)

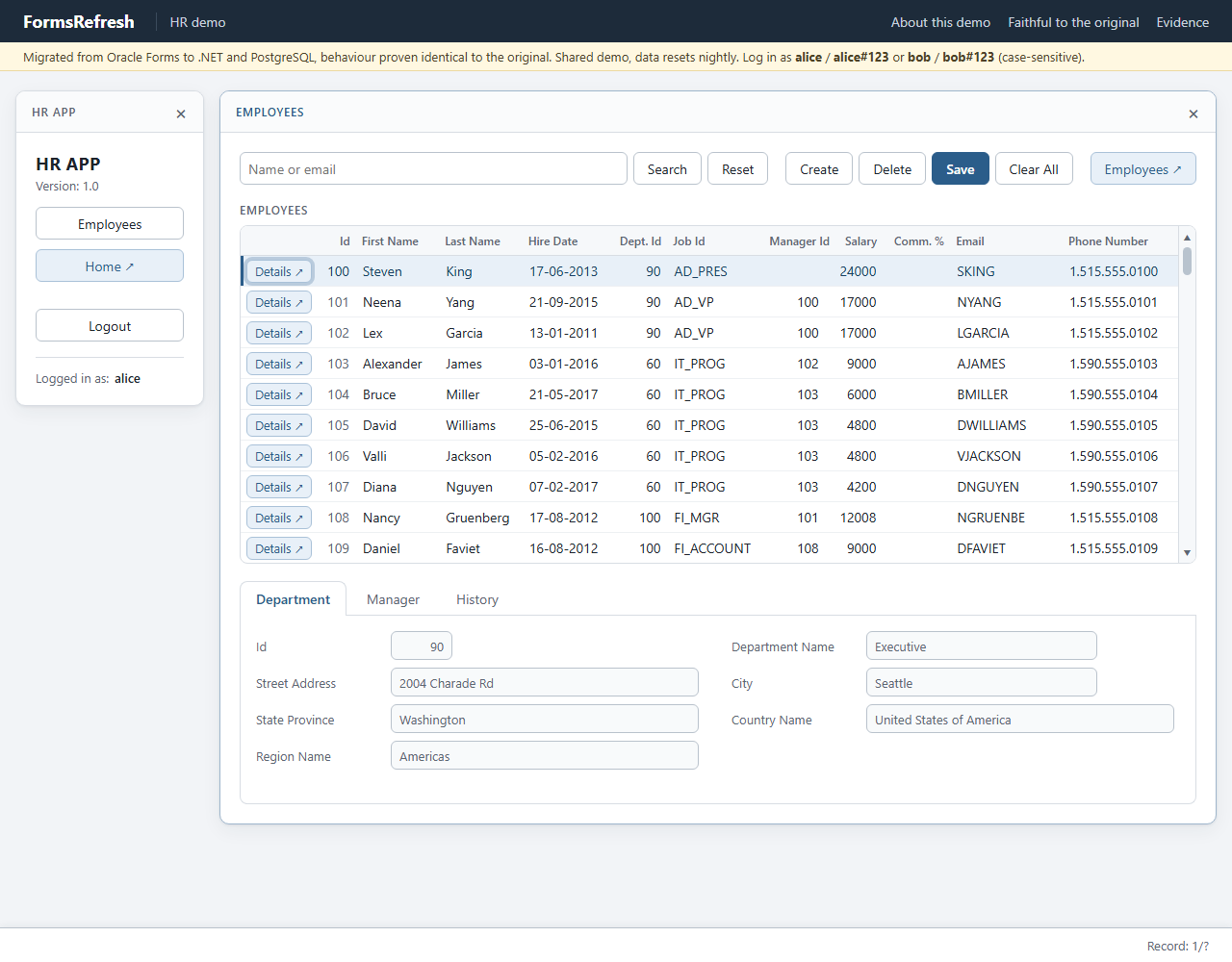

Step 3: employees

Original (Oracle Forms 14.1.2), step 03-employees — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 03-employees — Migrated (.NET, PostgreSQL)

Step 4: type

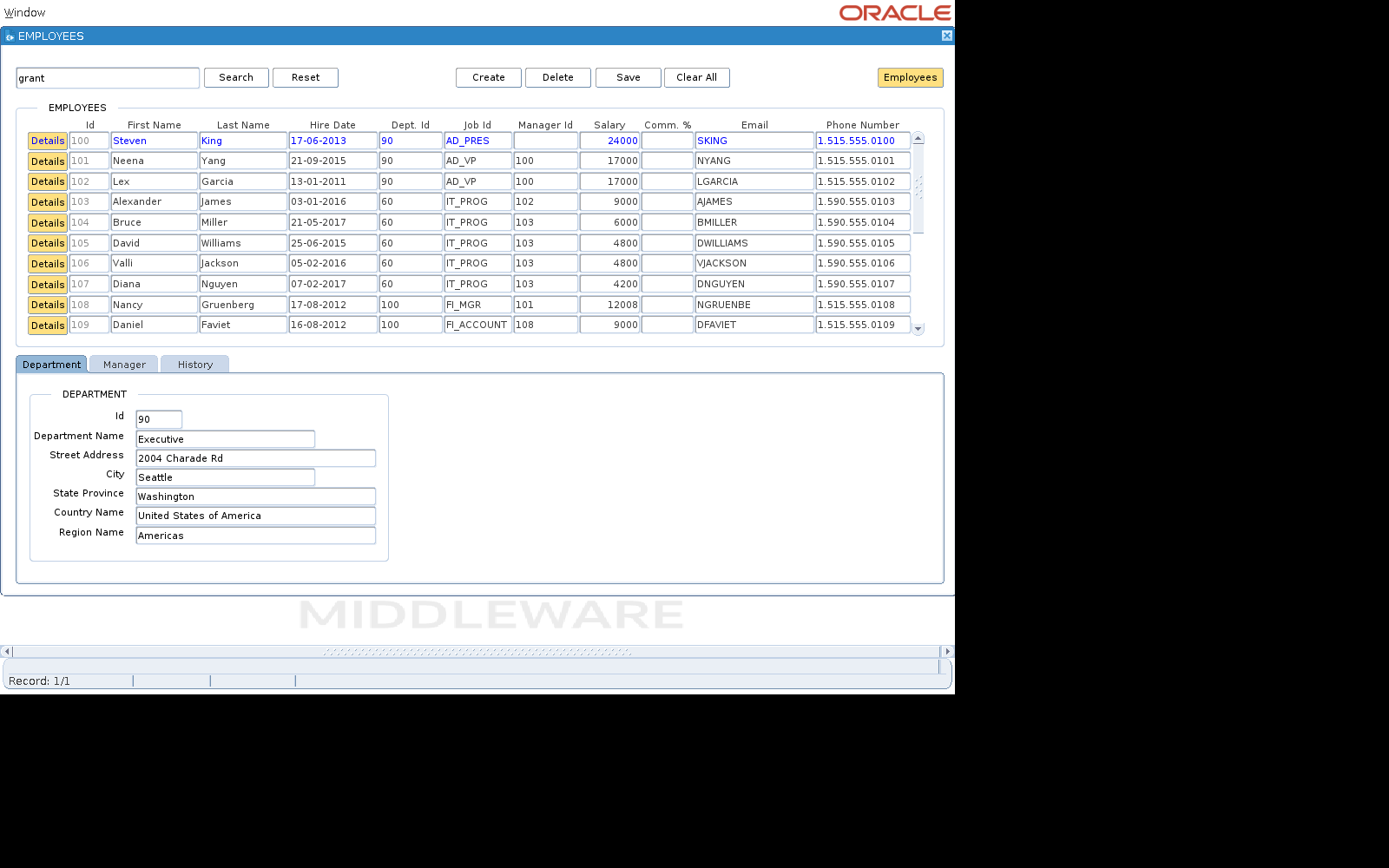

Original (Oracle Forms 14.1.2), step 04-type — Original (Oracle Forms 14.1.2)

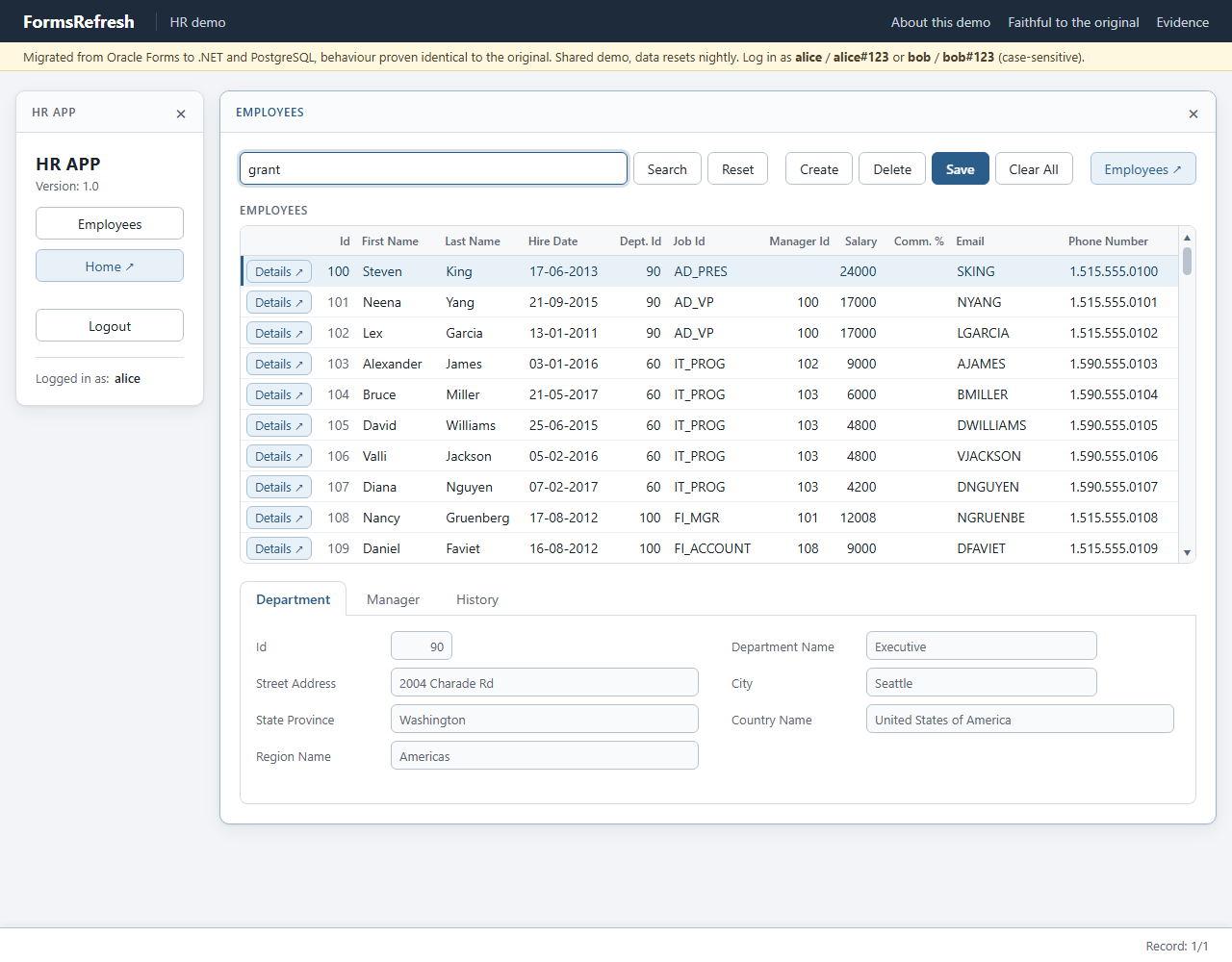

Migrated (.NET, PostgreSQL), step 04-type — Migrated (.NET, PostgreSQL)

Step 5: search

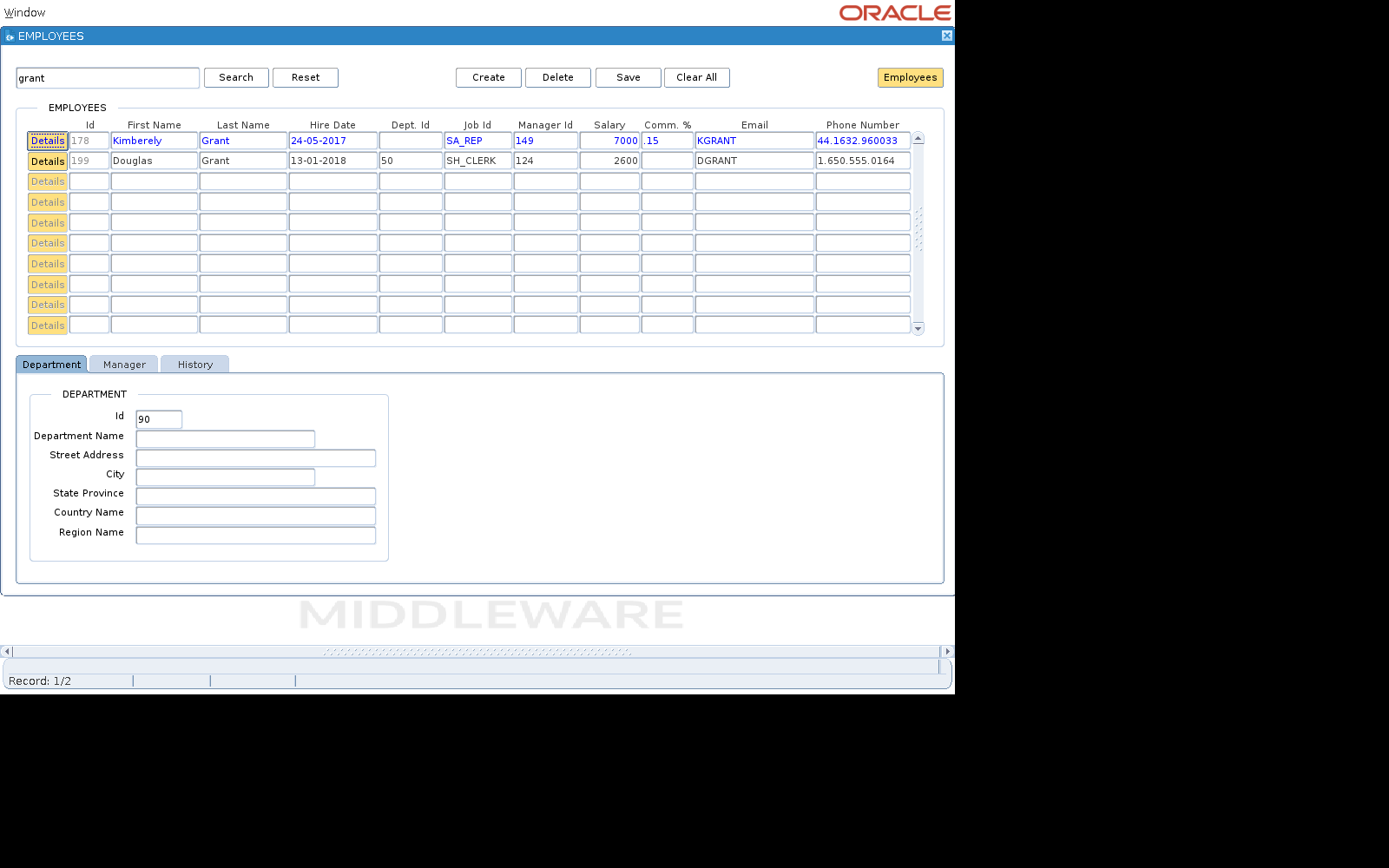

Original (Oracle Forms 14.1.2), step 05-search — Original (Oracle Forms 14.1.2)

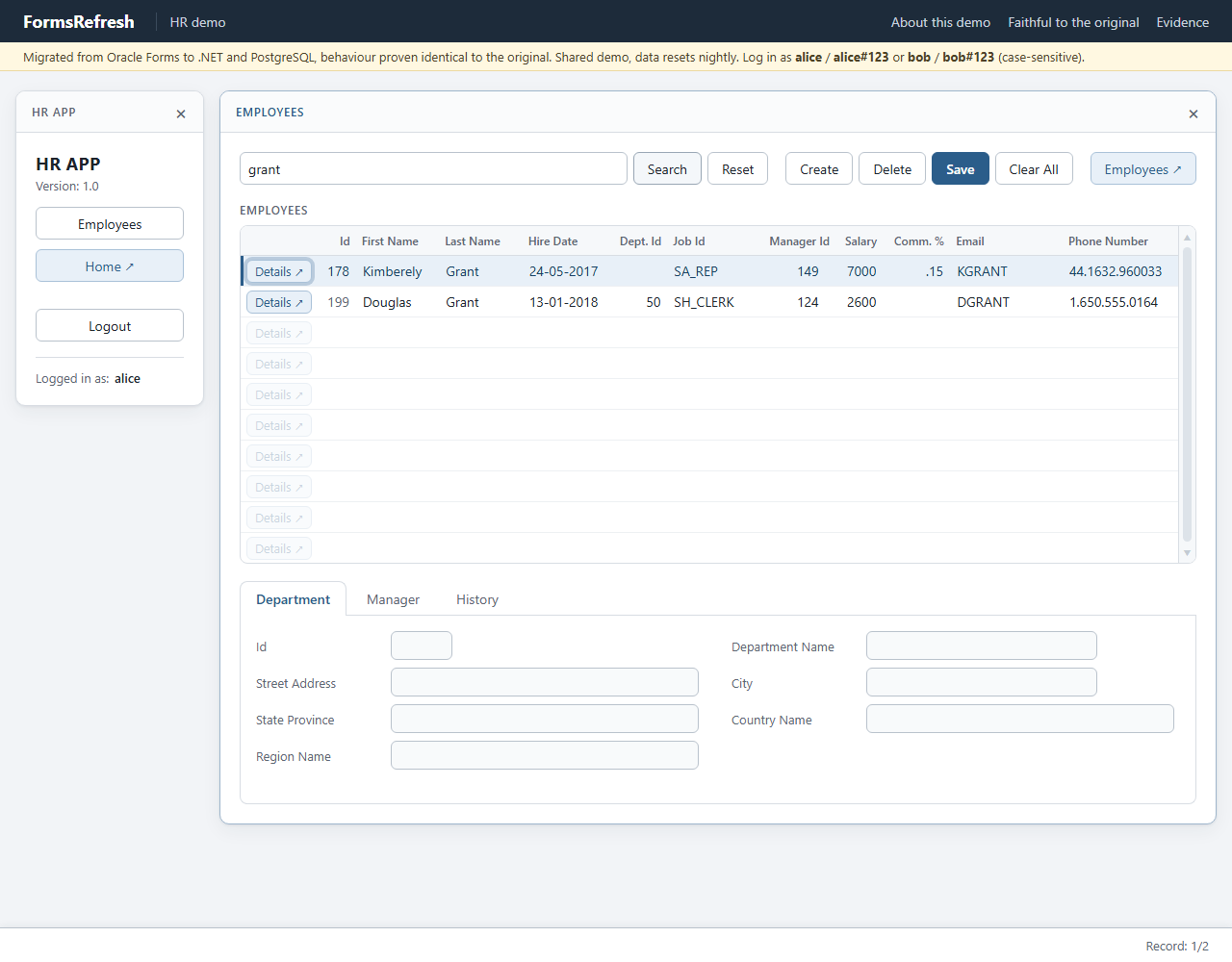

Migrated (.NET, PostgreSQL), step 05-search — Migrated (.NET, PostgreSQL)

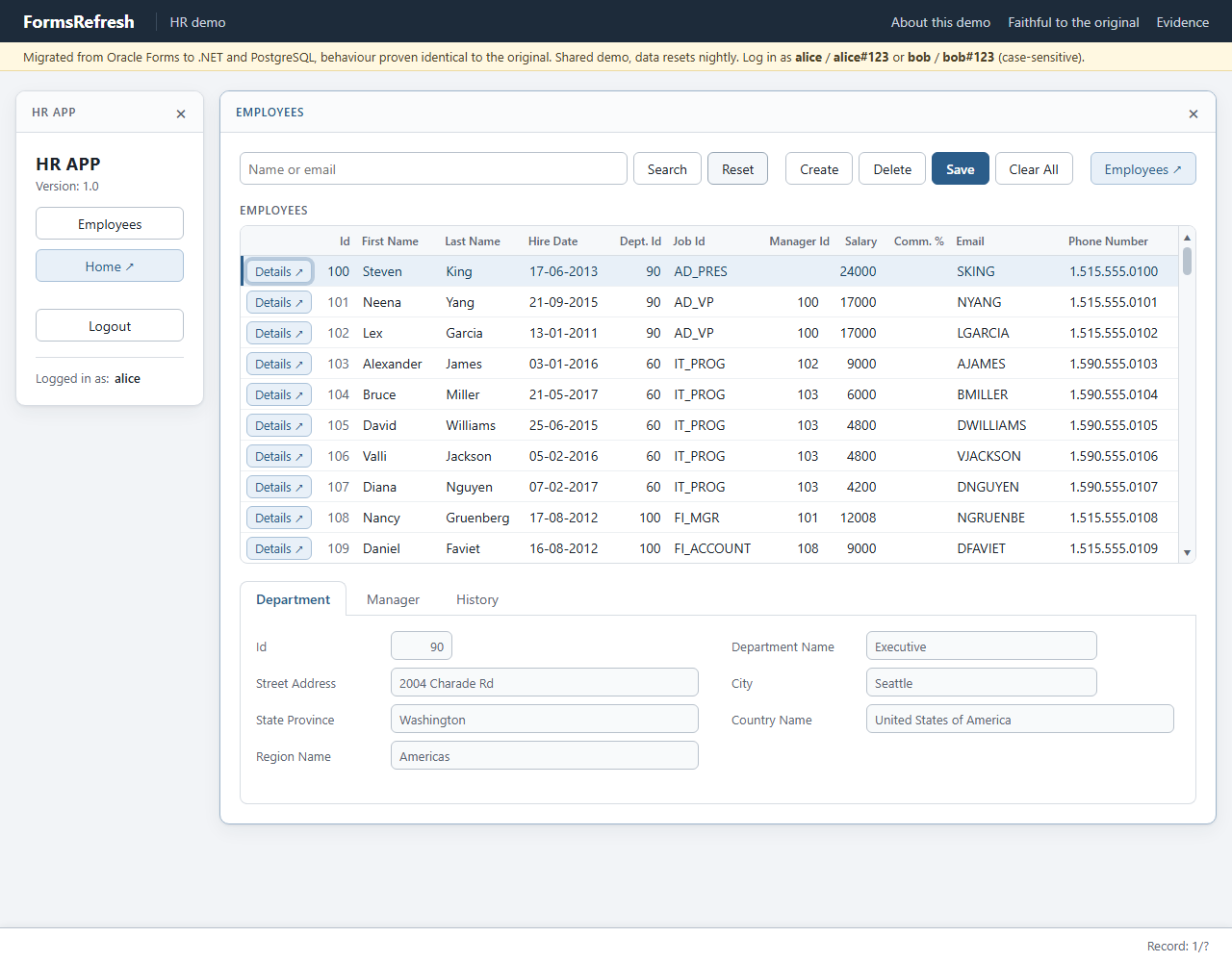

Step 6: reset

Original (Oracle Forms 14.1.2), step 06-reset — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 06-reset — Migrated (.NET, PostgreSQL)

Step 7: search empty

Original (Oracle Forms 14.1.2), step 07-search-empty — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 07-search-empty — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed
0		`Open form login`	`LOGIN.USERNAME[0]`
1		`Type LOGIN.USERNAME = alice, LOGIN.PASSWORD = alice#123`	`LOGIN.PASSWORD[0]`	`LOGIN.PASSWORD[0]` = alice#123 `LOGIN.USERNAME[0]` = alice
2	login	`Click LOGIN.LOGIN`	`CONSOLE.EMPLOYEES[0]`	`CONSOLE.USERNAME[0]` = alice
3	employees	`Click CONSOLE.EMPLOYEES`	`EMPLOYEES.APEX[0]`	`DEPARTMENT.CITY[0]` = Seattle `DEPARTMENT.COUNTRY_NAME[0]` = United States of America `DEPARTMENT.DEPARTMENT_ID[0]` = 90 `DEPARTMENT.DEPARTMENT_NAME[0]` = Executive `DEPARTMENT.REGION_NAME[0]` = Americas `DEPARTMENT.STATE_PROVINCE[0]` = Washington `DEPARTMENT.STREET_ADDRESS[0]` = 2004 Charade Rd `EMPLOYEES.DEPARTMENT_ID[0]` = 90 `EMPLOYEES.DEPARTMENT_ID[1]` = 90 `EMPLOYEES.DEPARTMENT_ID[2]` = 90 `EMPLOYEES.DEPARTMENT_ID[3]` = 60 `EMPLOYEES.DEPARTMENT_ID[4]` = 60 `EMPLOYEES.DEPARTMENT_ID[5]` = 60 `EMPLOYEES.DEPARTMENT_ID[6]` = 60 `EMPLOYEES.DEPARTMENT_ID[7]` = 60 `EMPLOYEES.DEPARTMENT_ID[8]` = 100 `EMPLOYEES.DEPARTMENT_ID[9]` = 100 `EMPLOYEES.EMAIL[0]` = SKING `EMPLOYEES.EMAIL[1]` = NYANG `EMPLOYEES.EMAIL[2]` = LGARCIA `EMPLOYEES.EMAIL[3]` = AJAMES `EMPLOYEES.EMAIL[4]` = BMILLER `EMPLOYEES.EMAIL[5]` = DWILLIAMS `EMPLOYEES.EMAIL[6]` = VJACKSON `EMPLOYEES.EMAIL[7]` = DNGUYEN `EMPLOYEES.EMAIL[8]` = NGRUENBE `EMPLOYEES.EMAIL[9]` = DFAVIET `EMPLOYEES.EMPLOYEE_ID[0]` = 100 `EMPLOYEES.EMPLOYEE_ID[1]` = 101 `EMPLOYEES.EMPLOYEE_ID[2]` = 102 `EMPLOYEES.EMPLOYEE_ID[3]` = 103 `EMPLOYEES.EMPLOYEE_ID[4]` = 104 `EMPLOYEES.EMPLOYEE_ID[5]` = 105 `EMPLOYEES.EMPLOYEE_ID[6]` = 106 `EMPLOYEES.EMPLOYEE_ID[7]` = 107 `EMPLOYEES.EMPLOYEE_ID[8]` = 108 `EMPLOYEES.EMPLOYEE_ID[9]` = 109 `EMPLOYEES.FIRST_NAME[0]` = Steven `EMPLOYEES.FIRST_NAME[1]` = Neena `EMPLOYEES.FIRST_NAME[2]` = Lex `EMPLOYEES.FIRST_NAME[3]` = Alexander `EMPLOYEES.FIRST_NAME[4]` = Bruce `EMPLOYEES.FIRST_NAME[5]` = David `EMPLOYEES.FIRST_NAME[6]` = Valli `EMPLOYEES.FIRST_NAME[7]` = Diana `EMPLOYEES.FIRST_NAME[8]` = Nancy `EMPLOYEES.FIRST_NAME[9]` = Daniel `EMPLOYEES.HIRE_DATE[0]` = 17-06-2013 `EMPLOYEES.HIRE_DATE[1]` = 21-09-2015 `EMPLOYEES.HIRE_DATE[2]` = 13-01-2011 `EMPLOYEES.HIRE_DATE[3]` = 03-01-2016 `EMPLOYEES.HIRE_DATE[4]` = 21-05-2017 `EMPLOYEES.HIRE_DATE[5]` = 25-06-2015 `EMPLOYEES.HIRE_DATE[6]` = 05-02-2016 `EMPLOYEES.HIRE_DATE[7]` = 07-02-2017 `EMPLOYEES.HIRE_DATE[8]` = 17-08-2012 `EMPLOYEES.HIRE_DATE[9]` = 16-08-2012 `EMPLOYEES.JOB_ID[0]` = AD_PRES `EMPLOYEES.JOB_ID[1]` = AD_VP `EMPLOYEES.JOB_ID[2]` = AD_VP `EMPLOYEES.JOB_ID[3]` = IT_PROG `EMPLOYEES.JOB_ID[4]` = IT_PROG `EMPLOYEES.JOB_ID[5]` = IT_PROG `EMPLOYEES.JOB_ID[6]` = IT_PROG `EMPLOYEES.JOB_ID[7]` = IT_PROG `EMPLOYEES.JOB_ID[8]` = FI_MGR `EMPLOYEES.JOB_ID[9]` = FI_ACCOUNT `EMPLOYEES.LAST_NAME[0]` = King `EMPLOYEES.LAST_NAME[1]` = Yang `EMPLOYEES.LAST_NAME[2]` = Garcia `EMPLOYEES.LAST_NAME[3]` = James `EMPLOYEES.LAST_NAME[4]` = Miller `EMPLOYEES.LAST_NAME[5]` = Williams `EMPLOYEES.LAST_NAME[6]` = Jackson `EMPLOYEES.LAST_NAME[7]` = Nguyen `EMPLOYEES.LAST_NAME[8]` = Gruenberg `EMPLOYEES.LAST_NAME[9]` = Faviet `EMPLOYEES.MANAGER_ID[1]` = 100 `EMPLOYEES.MANAGER_ID[2]` = 100 `EMPLOYEES.MANAGER_ID[3]` = 102 `EMPLOYEES.MANAGER_ID[4]` = 103 `EMPLOYEES.MANAGER_ID[5]` = 103 `EMPLOYEES.MANAGER_ID[6]` = 103 `EMPLOYEES.MANAGER_ID[7]` = 103 `EMPLOYEES.MANAGER_ID[8]` = 101 `EMPLOYEES.MANAGER_ID[9]` = 108 `EMPLOYEES.PHONE_NUMBER[0]` = 1.515.555.0100 `EMPLOYEES.PHONE_NUMBER[1]` = 1.515.555.0101 `EMPLOYEES.PHONE_NUMBER[2]` = 1.515.555.0102 `EMPLOYEES.PHONE_NUMBER[3]` = 1.590.555.0103 `EMPLOYEES.PHONE_NUMBER[4]` = 1.590.555.0104 `EMPLOYEES.PHONE_NUMBER[5]` = 1.590.555.0105 `EMPLOYEES.PHONE_NUMBER[6]` = 1.590.555.0106 `EMPLOYEES.PHONE_NUMBER[7]` = 1.590.555.0107 `EMPLOYEES.PHONE_NUMBER[8]` = 1.515.555.0108 `EMPLOYEES.PHONE_NUMBER[9]` = 1.515.555.0109 `EMPLOYEES.SALARY[0]` = 24000 `EMPLOYEES.SALARY[1]` = 17000 `EMPLOYEES.SALARY[2]` = 17000 `EMPLOYEES.SALARY[3]` = 9000 `EMPLOYEES.SALARY[4]` = 6000 `EMPLOYEES.SALARY[5]` = 4800 `EMPLOYEES.SALARY[6]` = 4800 `EMPLOYEES.SALARY[7]` = 4200 `EMPLOYEES.SALARY[8]` = 12008 `EMPLOYEES.SALARY[9]` = 9000
4		`Type BUTTONS.SEARCH_FIELD = grant`	`BUTTONS.SEARCH_FIELD[0]`	`BUTTONS.SEARCH_FIELD[0]` = grant
5	search	`Click BUTTONS.SEARCH_BUTTON`	`EMPLOYEES.APEX[0]`	`EMPLOYEES.COMMISSION_PCT[0]` = .15 `EMPLOYEES.DEPARTMENT_ID[1]` = 50 `EMPLOYEES.EMAIL[0]` = KGRANT `EMPLOYEES.EMAIL[1]` = DGRANT `EMPLOYEES.EMPLOYEE_ID[0]` = 178 `EMPLOYEES.EMPLOYEE_ID[1]` = 199 `EMPLOYEES.FIRST_NAME[0]` = Kimberely `EMPLOYEES.FIRST_NAME[1]` = Douglas `EMPLOYEES.HIRE_DATE[0]` = 24-05-2017 `EMPLOYEES.HIRE_DATE[1]` = 13-01-2018 `EMPLOYEES.JOB_ID[0]` = SA_REP `EMPLOYEES.JOB_ID[1]` = SH_CLERK `EMPLOYEES.LAST_NAME[0]` = Grant `EMPLOYEES.LAST_NAME[1]` = Grant `EMPLOYEES.MANAGER_ID[0]` = 149 `EMPLOYEES.MANAGER_ID[1]` = 124 `EMPLOYEES.PHONE_NUMBER[0]` = 44.1632.960033 `EMPLOYEES.PHONE_NUMBER[1]` = 1.650.555.0164 `EMPLOYEES.SALARY[0]` = 7000 `EMPLOYEES.SALARY[1]` = 2600
6	reset	`Click BUTTONS.RESET_BUTTON`	`EMPLOYEES.APEX[0]`	`DEPARTMENT.CITY[0]` = Seattle `DEPARTMENT.COUNTRY_NAME[0]` = United States of America `DEPARTMENT.DEPARTMENT_NAME[0]` = Executive `DEPARTMENT.REGION_NAME[0]` = Americas `DEPARTMENT.STATE_PROVINCE[0]` = Washington `DEPARTMENT.STREET_ADDRESS[0]` = 2004 Charade Rd `EMPLOYEES.DEPARTMENT_ID[0]` = 90 `EMPLOYEES.DEPARTMENT_ID[1]` = 90 `EMPLOYEES.DEPARTMENT_ID[2]` = 90 `EMPLOYEES.DEPARTMENT_ID[3]` = 60 `EMPLOYEES.DEPARTMENT_ID[4]` = 60 `EMPLOYEES.DEPARTMENT_ID[5]` = 60 `EMPLOYEES.DEPARTMENT_ID[6]` = 60 `EMPLOYEES.DEPARTMENT_ID[7]` = 60 `EMPLOYEES.DEPARTMENT_ID[8]` = 100 `EMPLOYEES.DEPARTMENT_ID[9]` = 100 `EMPLOYEES.EMAIL[0]` = SKING `EMPLOYEES.EMAIL[1]` = NYANG `EMPLOYEES.EMAIL[2]` = LGARCIA `EMPLOYEES.EMAIL[3]` = AJAMES `EMPLOYEES.EMAIL[4]` = BMILLER `EMPLOYEES.EMAIL[5]` = DWILLIAMS `EMPLOYEES.EMAIL[6]` = VJACKSON `EMPLOYEES.EMAIL[7]` = DNGUYEN `EMPLOYEES.EMAIL[8]` = NGRUENBE `EMPLOYEES.EMAIL[9]` = DFAVIET `EMPLOYEES.EMPLOYEE_ID[0]` = 100 `EMPLOYEES.EMPLOYEE_ID[1]` = 101 `EMPLOYEES.EMPLOYEE_ID[2]` = 102 `EMPLOYEES.EMPLOYEE_ID[3]` = 103 `EMPLOYEES.EMPLOYEE_ID[4]` = 104 `EMPLOYEES.EMPLOYEE_ID[5]` = 105 `EMPLOYEES.EMPLOYEE_ID[6]` = 106 `EMPLOYEES.EMPLOYEE_ID[7]` = 107 `EMPLOYEES.EMPLOYEE_ID[8]` = 108 `EMPLOYEES.EMPLOYEE_ID[9]` = 109 `EMPLOYEES.FIRST_NAME[0]` = Steven `EMPLOYEES.FIRST_NAME[1]` = Neena `EMPLOYEES.FIRST_NAME[2]` = Lex `EMPLOYEES.FIRST_NAME[3]` = Alexander `EMPLOYEES.FIRST_NAME[4]` = Bruce `EMPLOYEES.FIRST_NAME[5]` = David `EMPLOYEES.FIRST_NAME[6]` = Valli `EMPLOYEES.FIRST_NAME[7]` = Diana `EMPLOYEES.FIRST_NAME[8]` = Nancy `EMPLOYEES.FIRST_NAME[9]` = Daniel `EMPLOYEES.HIRE_DATE[0]` = 17-06-2013 `EMPLOYEES.HIRE_DATE[1]` = 21-09-2015 `EMPLOYEES.HIRE_DATE[2]` = 13-01-2011 `EMPLOYEES.HIRE_DATE[3]` = 03-01-2016 `EMPLOYEES.HIRE_DATE[4]` = 21-05-2017 `EMPLOYEES.HIRE_DATE[5]` = 25-06-2015 `EMPLOYEES.HIRE_DATE[6]` = 05-02-2016 `EMPLOYEES.HIRE_DATE[7]` = 07-02-2017 `EMPLOYEES.HIRE_DATE[8]` = 17-08-2012 `EMPLOYEES.HIRE_DATE[9]` = 16-08-2012 `EMPLOYEES.JOB_ID[0]` = AD_PRES `EMPLOYEES.JOB_ID[1]` = AD_VP `EMPLOYEES.JOB_ID[2]` = AD_VP `EMPLOYEES.JOB_ID[3]` = IT_PROG `EMPLOYEES.JOB_ID[4]` = IT_PROG `EMPLOYEES.JOB_ID[5]` = IT_PROG `EMPLOYEES.JOB_ID[6]` = IT_PROG `EMPLOYEES.JOB_ID[7]` = IT_PROG `EMPLOYEES.JOB_ID[8]` = FI_MGR `EMPLOYEES.JOB_ID[9]` = FI_ACCOUNT `EMPLOYEES.LAST_NAME[0]` = King `EMPLOYEES.LAST_NAME[1]` = Yang `EMPLOYEES.LAST_NAME[2]` = Garcia `EMPLOYEES.LAST_NAME[3]` = James `EMPLOYEES.LAST_NAME[4]` = Miller `EMPLOYEES.LAST_NAME[5]` = Williams `EMPLOYEES.LAST_NAME[6]` = Jackson `EMPLOYEES.LAST_NAME[7]` = Nguyen `EMPLOYEES.LAST_NAME[8]` = Gruenberg `EMPLOYEES.LAST_NAME[9]` = Faviet `EMPLOYEES.MANAGER_ID[1]` = 100 `EMPLOYEES.MANAGER_ID[2]` = 100 `EMPLOYEES.MANAGER_ID[3]` = 102 `EMPLOYEES.MANAGER_ID[4]` = 103 `EMPLOYEES.MANAGER_ID[5]` = 103 `EMPLOYEES.MANAGER_ID[6]` = 103 `EMPLOYEES.MANAGER_ID[7]` = 103 `EMPLOYEES.MANAGER_ID[8]` = 101 `EMPLOYEES.MANAGER_ID[9]` = 108 `EMPLOYEES.PHONE_NUMBER[0]` = 1.515.555.0100 `EMPLOYEES.PHONE_NUMBER[1]` = 1.515.555.0101 `EMPLOYEES.PHONE_NUMBER[2]` = 1.515.555.0102 `EMPLOYEES.PHONE_NUMBER[3]` = 1.590.555.0103 `EMPLOYEES.PHONE_NUMBER[4]` = 1.590.555.0104 `EMPLOYEES.PHONE_NUMBER[5]` = 1.590.555.0105 `EMPLOYEES.PHONE_NUMBER[6]` = 1.590.555.0106 `EMPLOYEES.PHONE_NUMBER[7]` = 1.590.555.0107 `EMPLOYEES.PHONE_NUMBER[8]` = 1.515.555.0108 `EMPLOYEES.PHONE_NUMBER[9]` = 1.515.555.0109 `EMPLOYEES.SALARY[0]` = 24000 `EMPLOYEES.SALARY[1]` = 17000 `EMPLOYEES.SALARY[2]` = 17000 `EMPLOYEES.SALARY[3]` = 9000 `EMPLOYEES.SALARY[4]` = 6000 `EMPLOYEES.SALARY[5]` = 4800 `EMPLOYEES.SALARY[6]` = 4800 `EMPLOYEES.SALARY[7]` = 4200 `EMPLOYEES.SALARY[8]` = 12008 `EMPLOYEES.SALARY[9]` = 9000
7	search empty	`Click BUTTONS.SEARCH_BUTTON`	`EMPLOYEES.APEX[0]`

Database effects

None: the scenario changes no row and draws no sequence value.

Classified diff against the migrated app

Diff: employees-search
counts: match 660, tolerated 0, waived 1, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  H1 [proposed] APEX links fail with FRM-92022 instead of opening the page: applied to 0 value(s)
  H2 [proposed] Department tab keeps the previous department number: applied to 1 value(s)

[waived] ui.values.DEPARTMENT.DEPARTMENT_ID  rule=waiver:H2  x1
    step05.values.DEPARTMENT.DEPARTMENT_ID[0]: source '90' | target ''

Waivers

Id	Waiver	Values	Reason
H2	Department tab keeps the previous department number	1	When the current employee has no department (a new record, or Kimberely Grant, whose DEPARTMENT_ID is NULL), Forms clears the DEPARTMENT detail block, yet DEPARTMENT_ID on the Department tab keeps showing the number of the department shown before (90, Executive) while name, address, city and region are blank. The number belongs to another employee's department; the target clears the whole tab.
