login-fail

A wrong password raises ALERT_FAILURE (NO_DATA_FOUND in LOGIN.LOGIN); LOGIN stays open.

0defects

50values match

0tolerated by policy

0waived

0unmapped

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action	Checked on the original
0		Open form `login`
1		Type `LOGIN.USERNAME` = alice, `LOGIN.PASSWORD` = wrong
2	login	Click `LOGIN.LOGIN`	alert Invalid username or password
3	acknowledge	Answer the alert OK

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

Step 0: open login

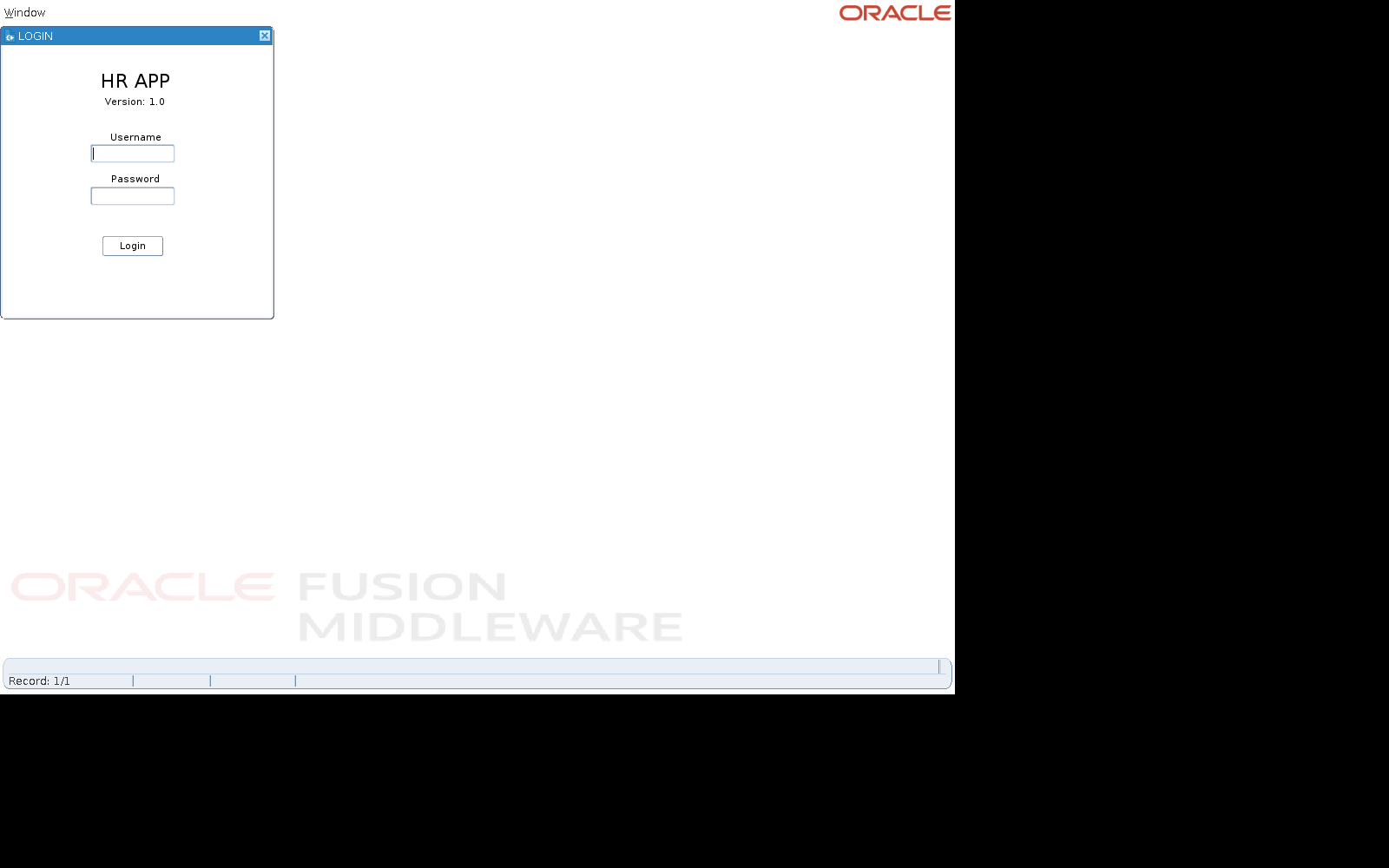

Original (Oracle Forms 14.1.2), step 00-open — Original (Oracle Forms 14.1.2)

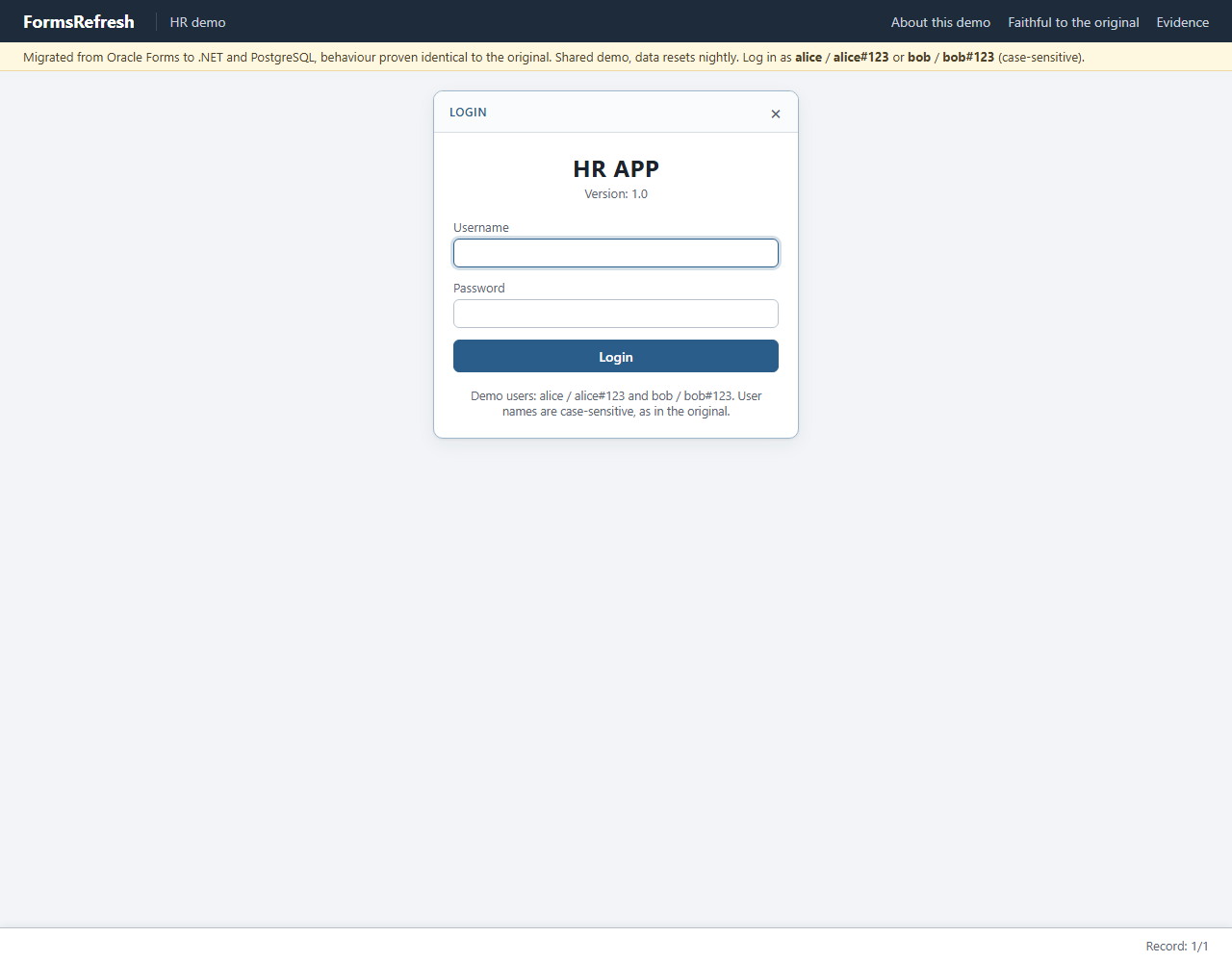

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

Step 1: type

Original (Oracle Forms 14.1.2), step 01-type — Original (Oracle Forms 14.1.2)

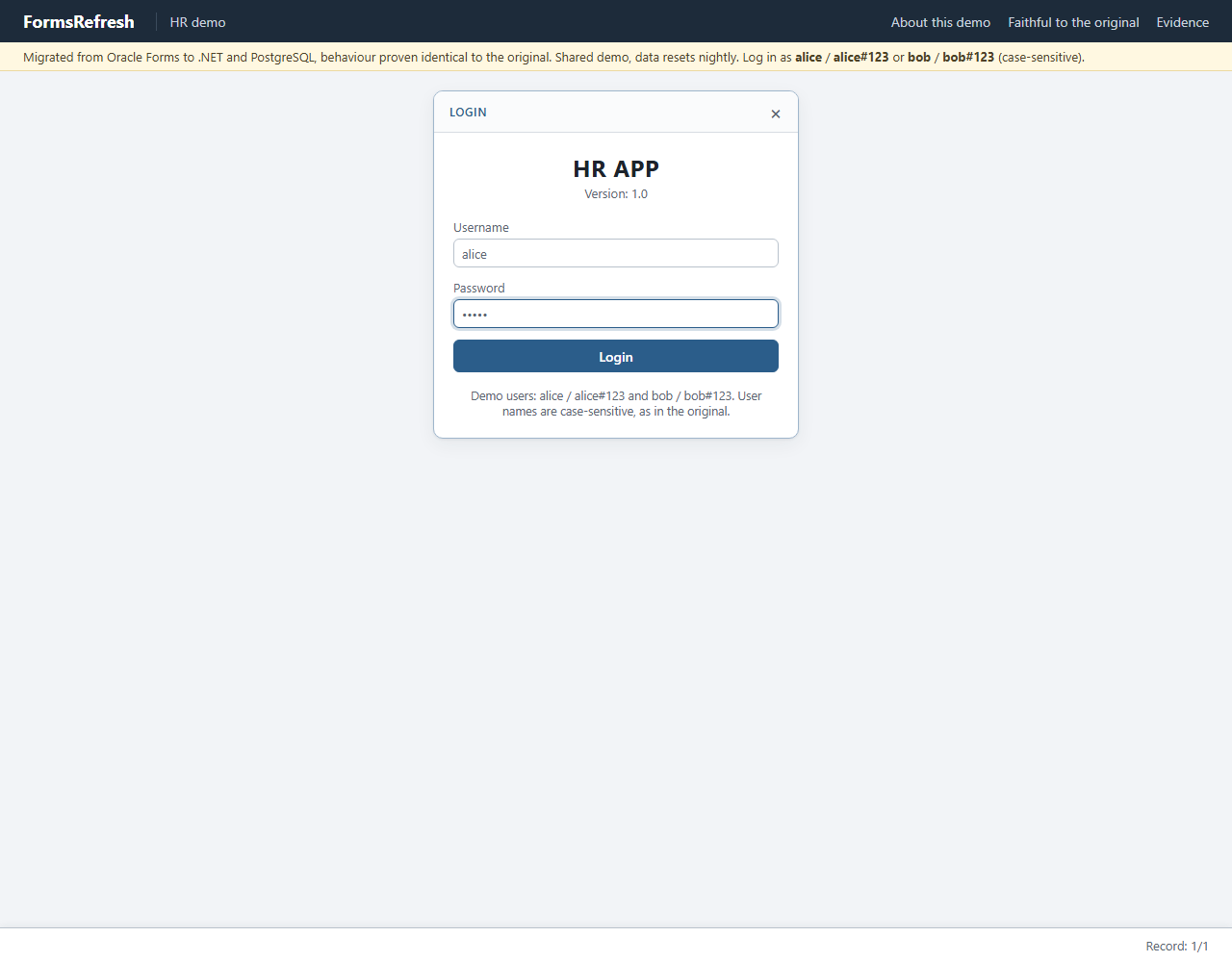

Migrated (.NET, PostgreSQL), step 01-type — Migrated (.NET, PostgreSQL)

Step 2: login

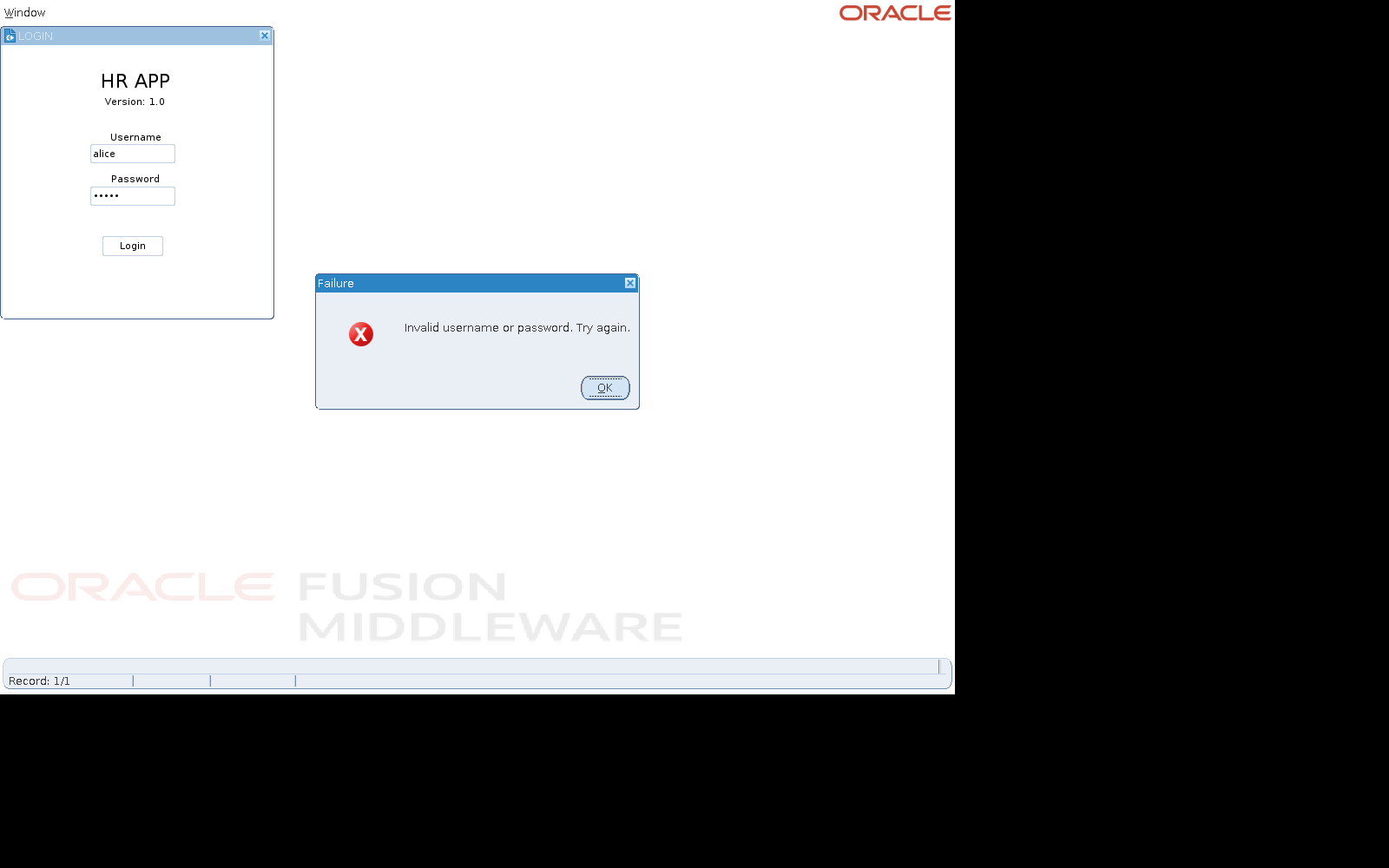

Original (Oracle Forms 14.1.2), step 02-login — Original (Oracle Forms 14.1.2)

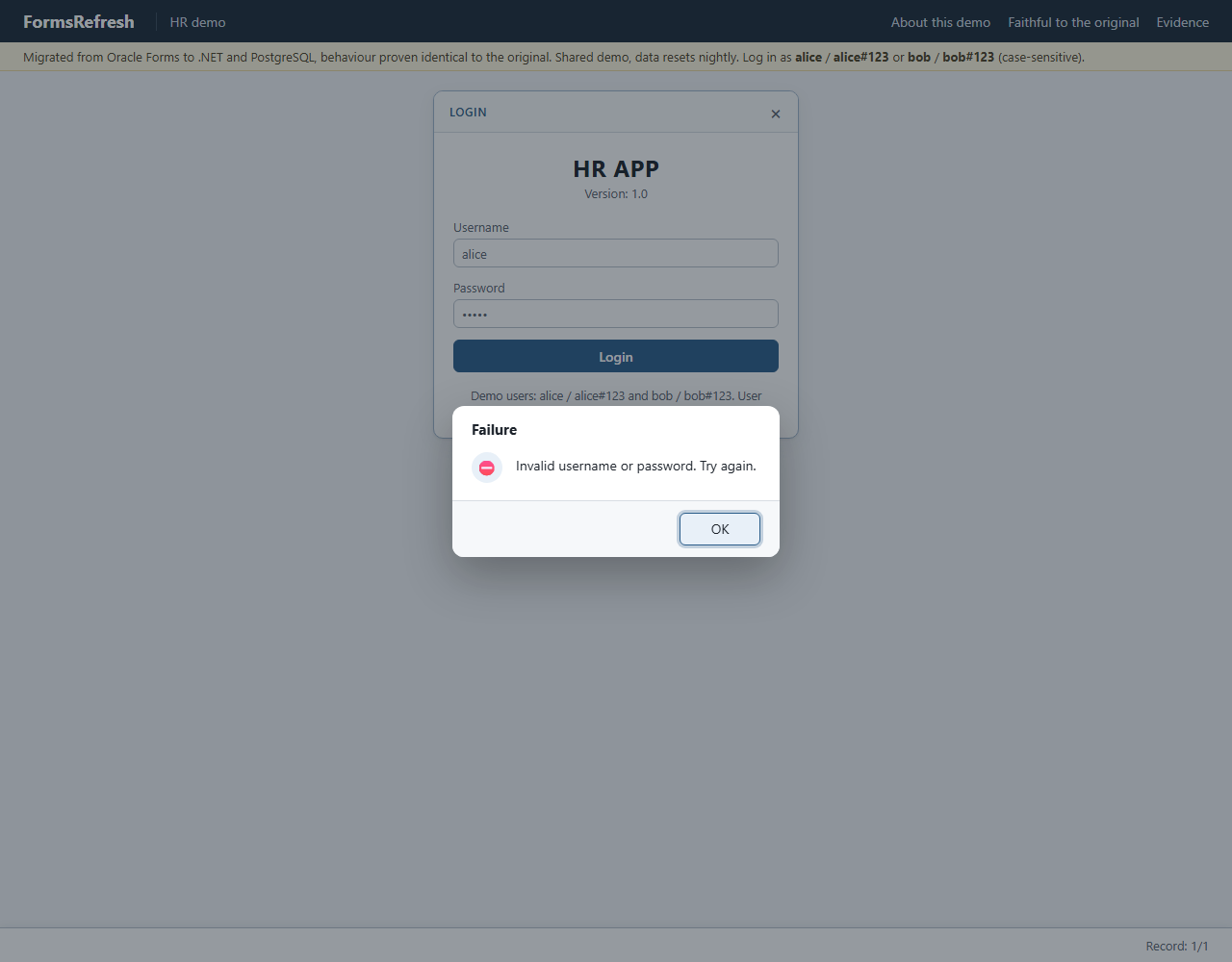

Migrated (.NET, PostgreSQL), step 02-login — Migrated (.NET, PostgreSQL)

Step 3: acknowledge

Original (Oracle Forms 14.1.2), step 03-acknowledge — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 03-acknowledge — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed	Alert	Expect
0		`Open form login`	`LOGIN.USERNAME[0]`
1		`Type LOGIN.USERNAME = alice, LOGIN.PASSWORD = wrong`	`LOGIN.PASSWORD[0]`	`LOGIN.PASSWORD[0]` = wrong `LOGIN.USERNAME[0]` = alice
2	login	`Click LOGIN.LOGIN`	`ALERT_FAILURE/PushButton:OK`		Invalid username or password. Try again.	pass
3	acknowledge	`Answer the alert OK`	`LOGIN.LOGIN[0]`

Database effects

None: the scenario changes no row and draws no sequence value.

Classified diff against the migrated app

Diff: login-fail
counts: match 50, tolerated 0, waived 0, defect 0, unmapped 0, harness 0
generated-id pairs (source -> target): none

waivers:
  H1 [proposed] APEX links fail with FRM-92022 instead of opening the page: applied to 0 value(s)
  H2 [proposed] Department tab keeps the previous department number: applied to 0 value(s)

Waivers

No waiver applies to this scenario: every compared value matches or is within the tolerance policy.
