order-two-lines

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

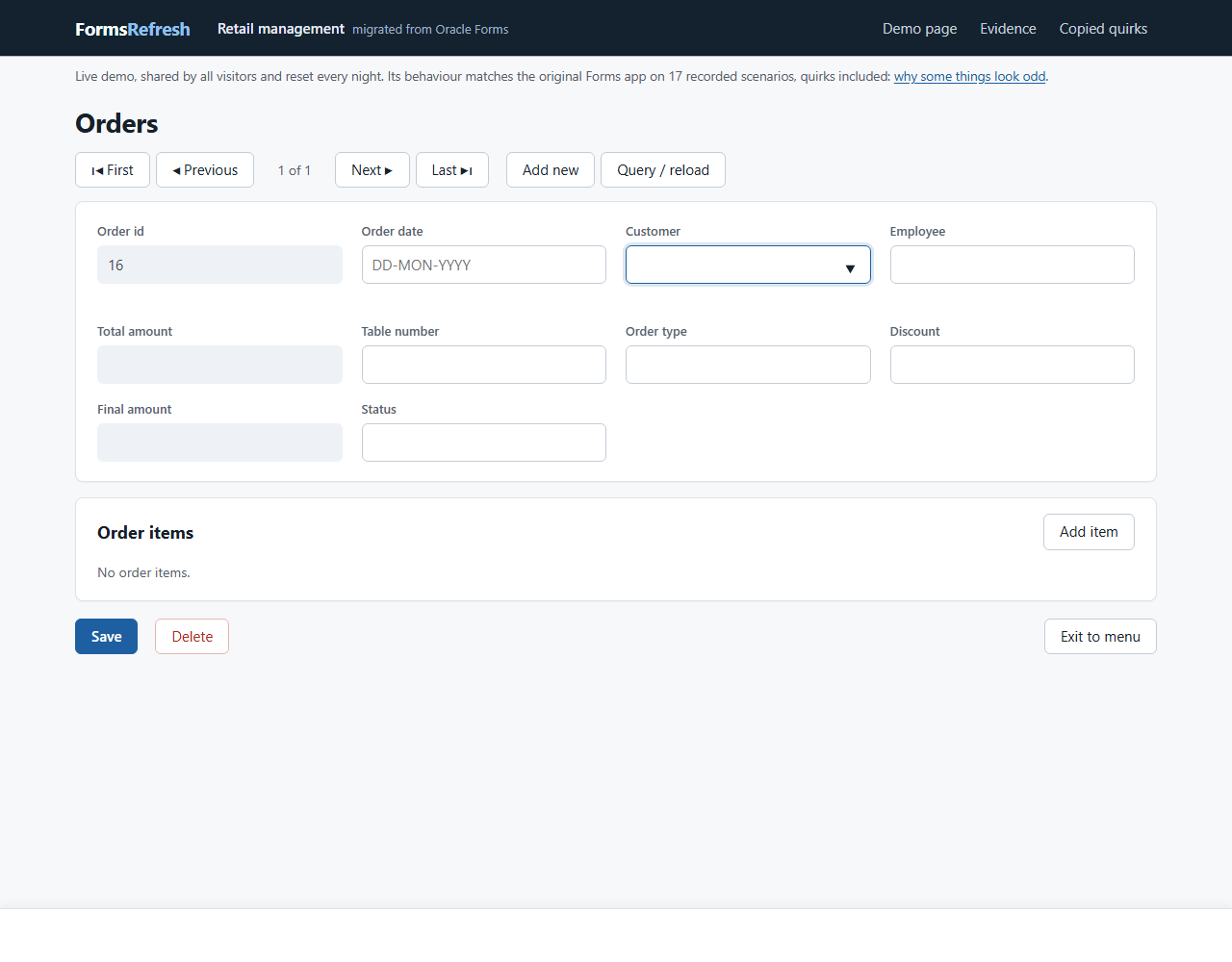

Step 0: open ORDERS

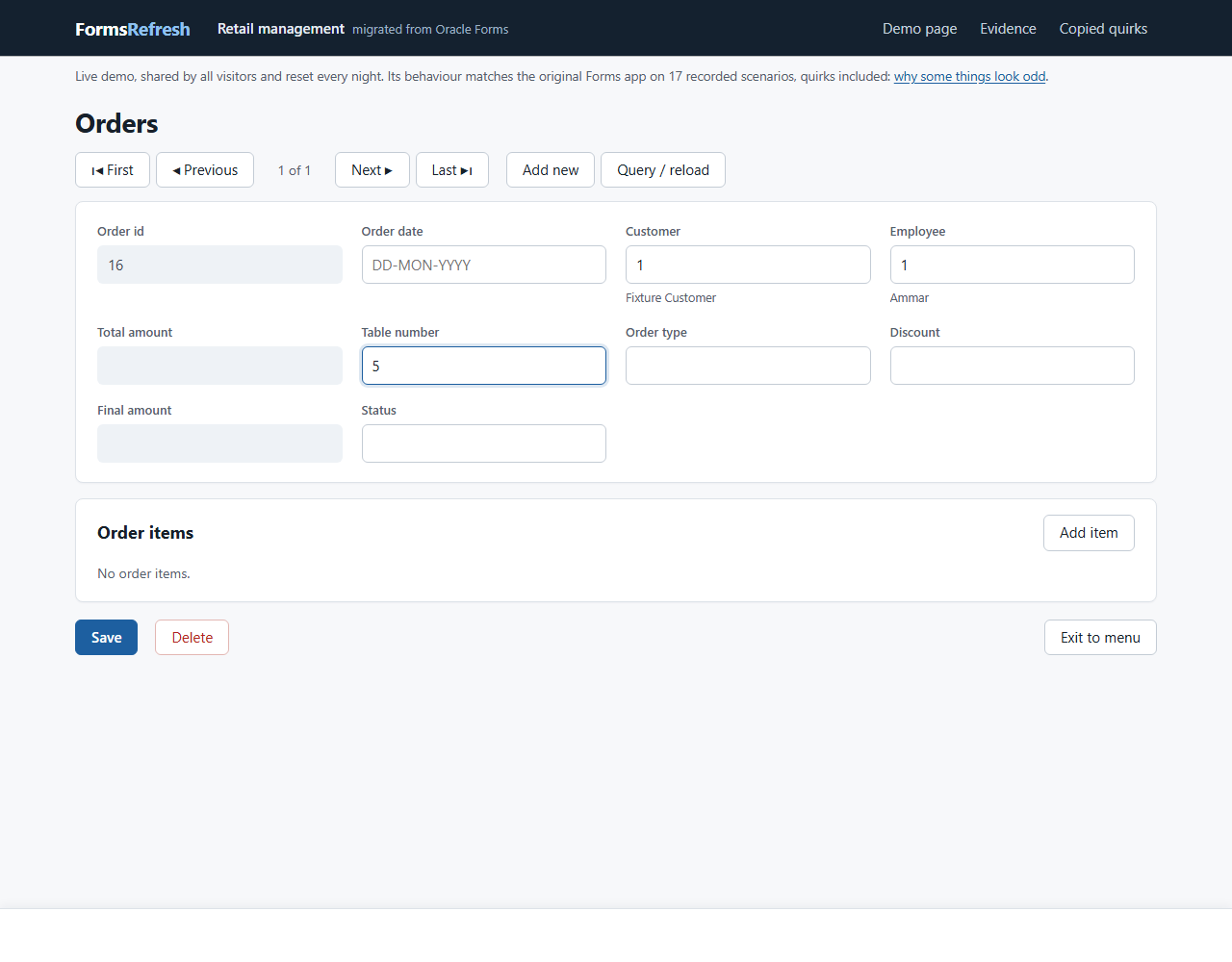

Step 1: header

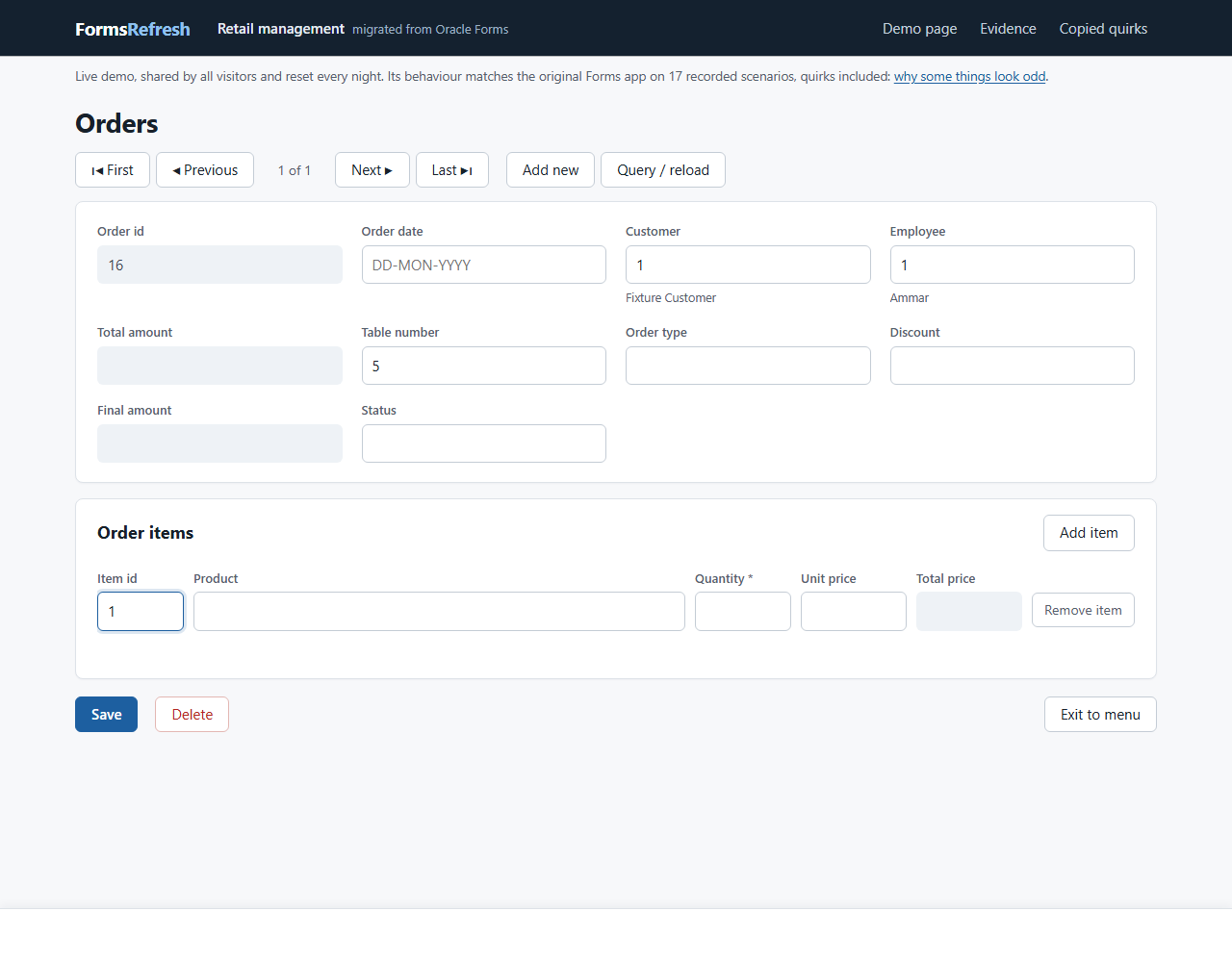

Step 2: line 1 id

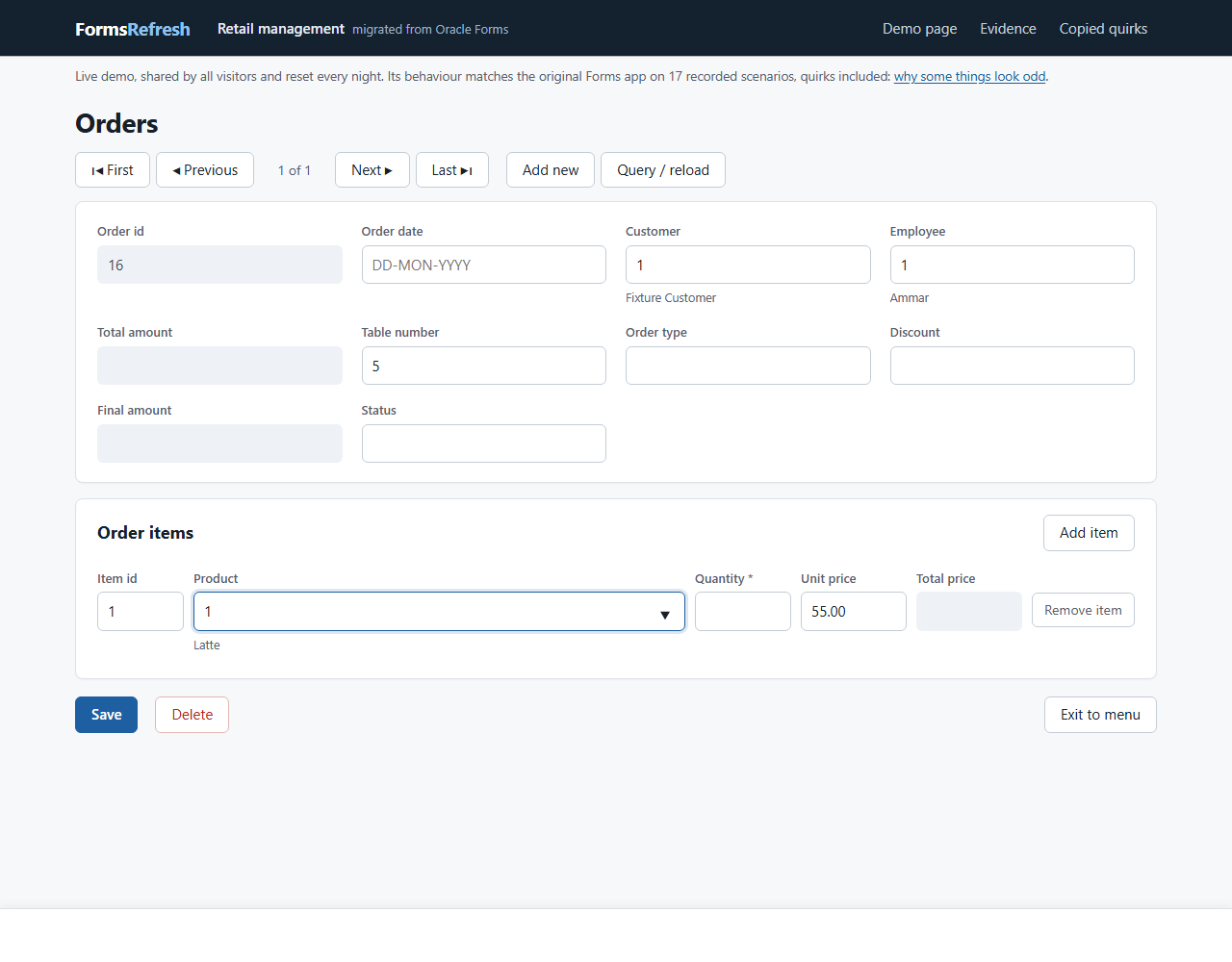

Step 3: line 1 product

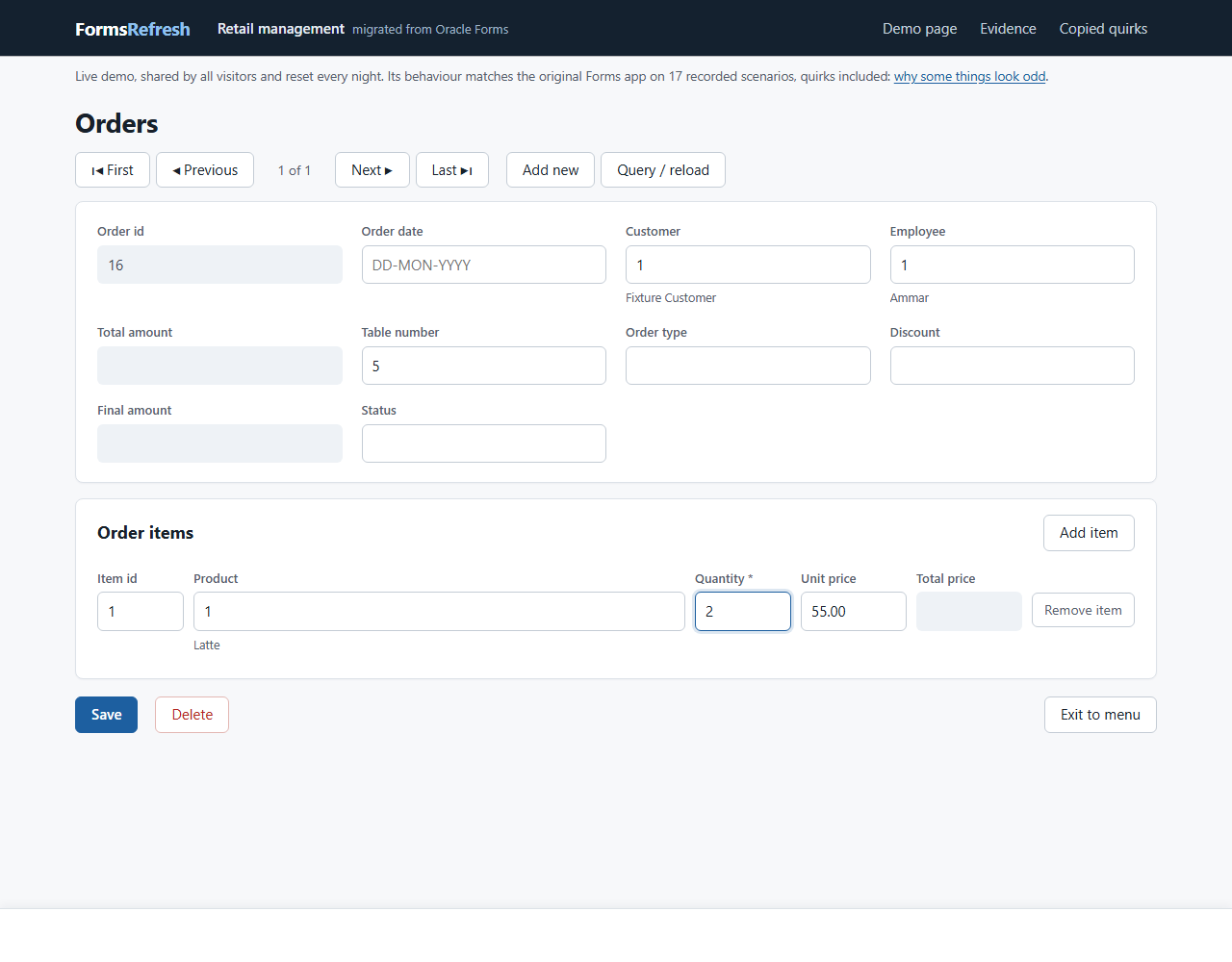

Step 4: line 1 quantity

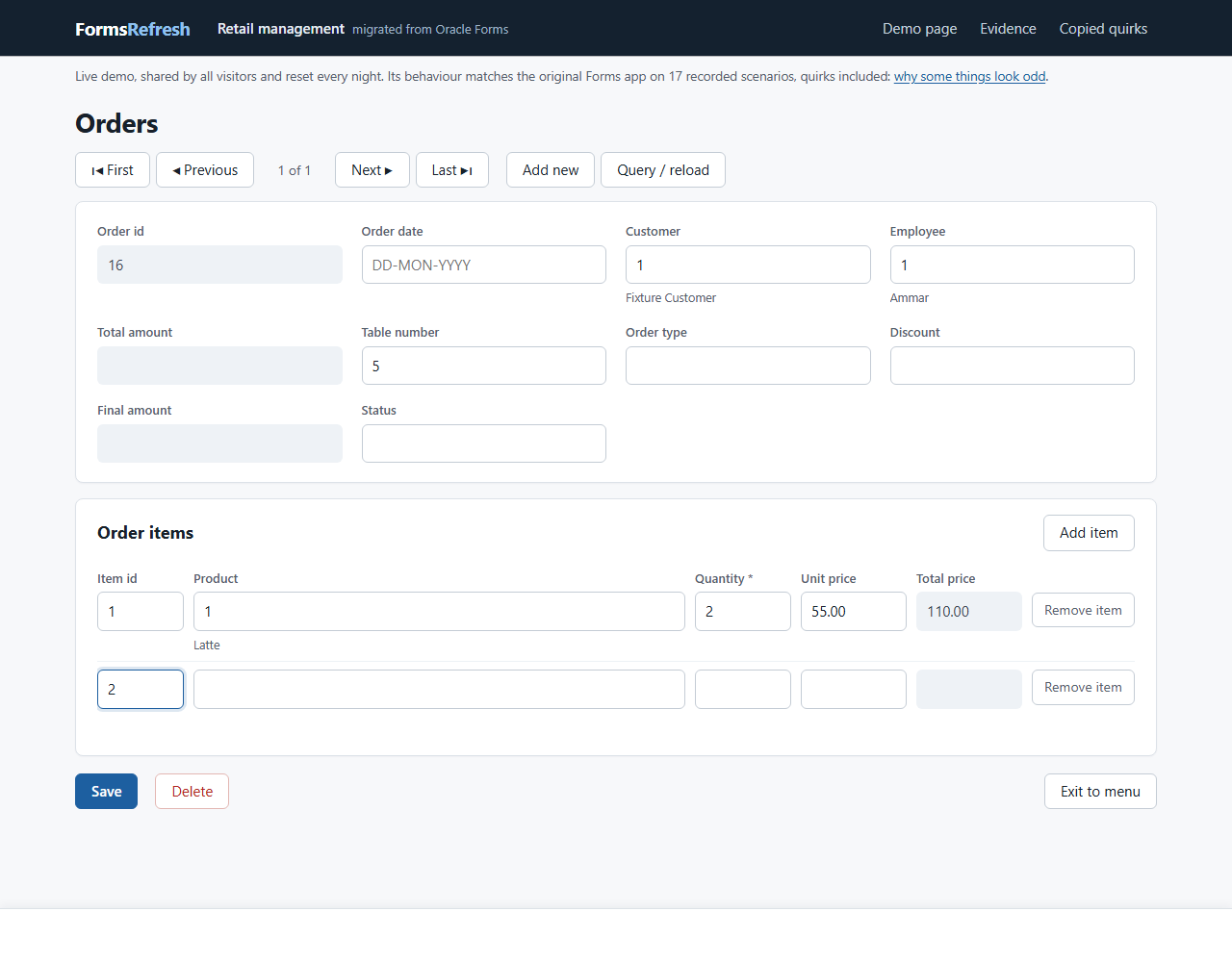

Step 5: line 2 id

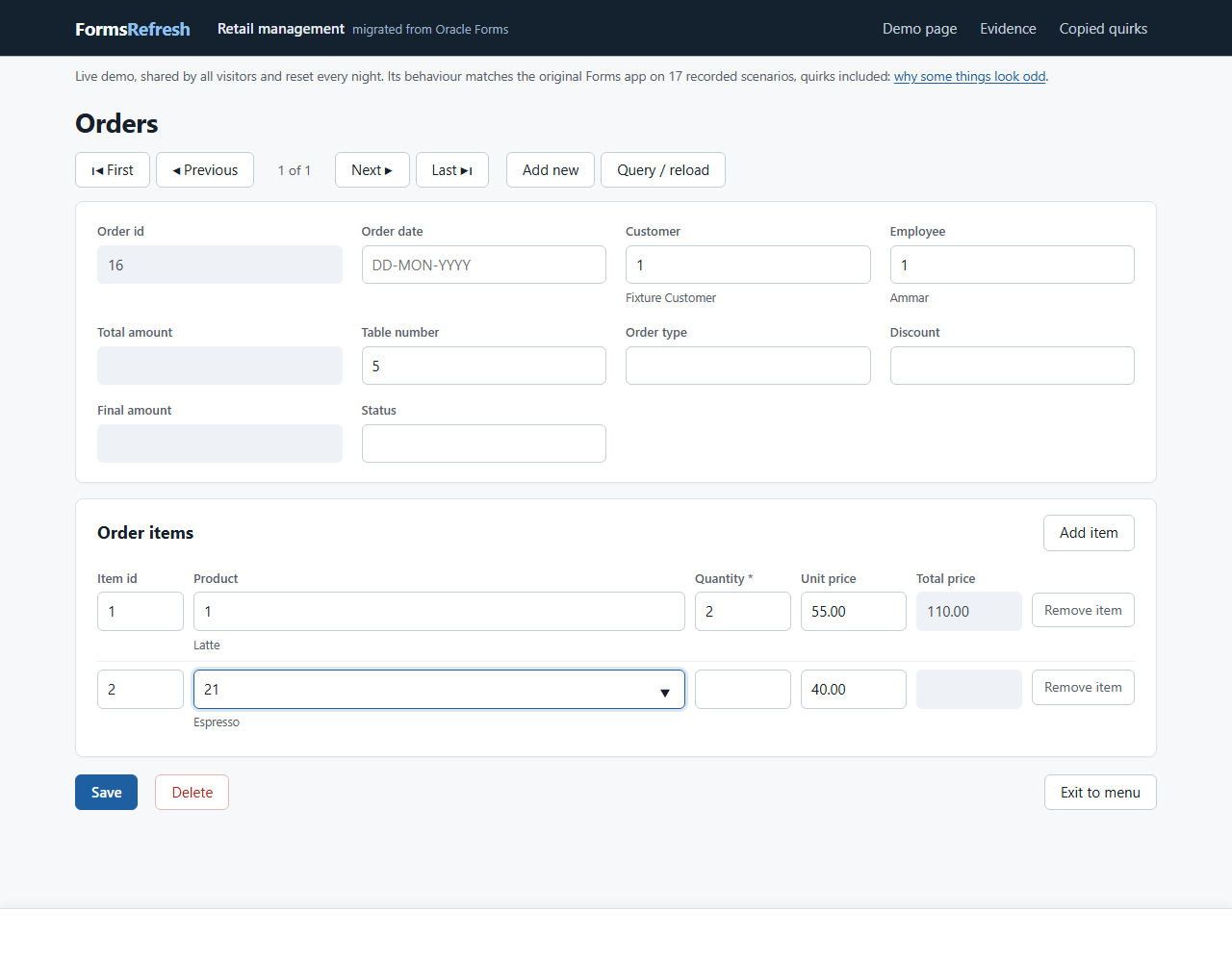

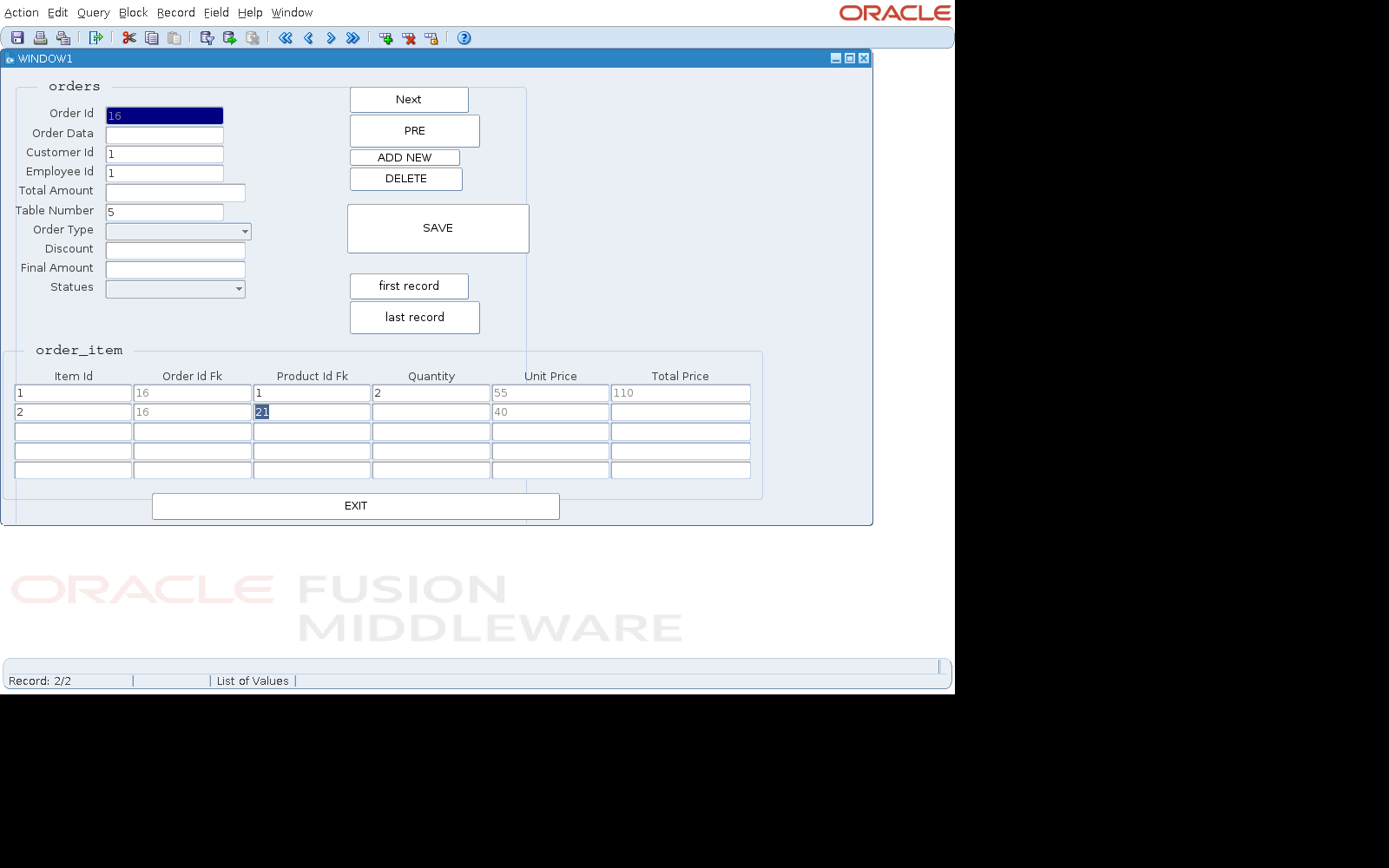

Step 6: line 2 product

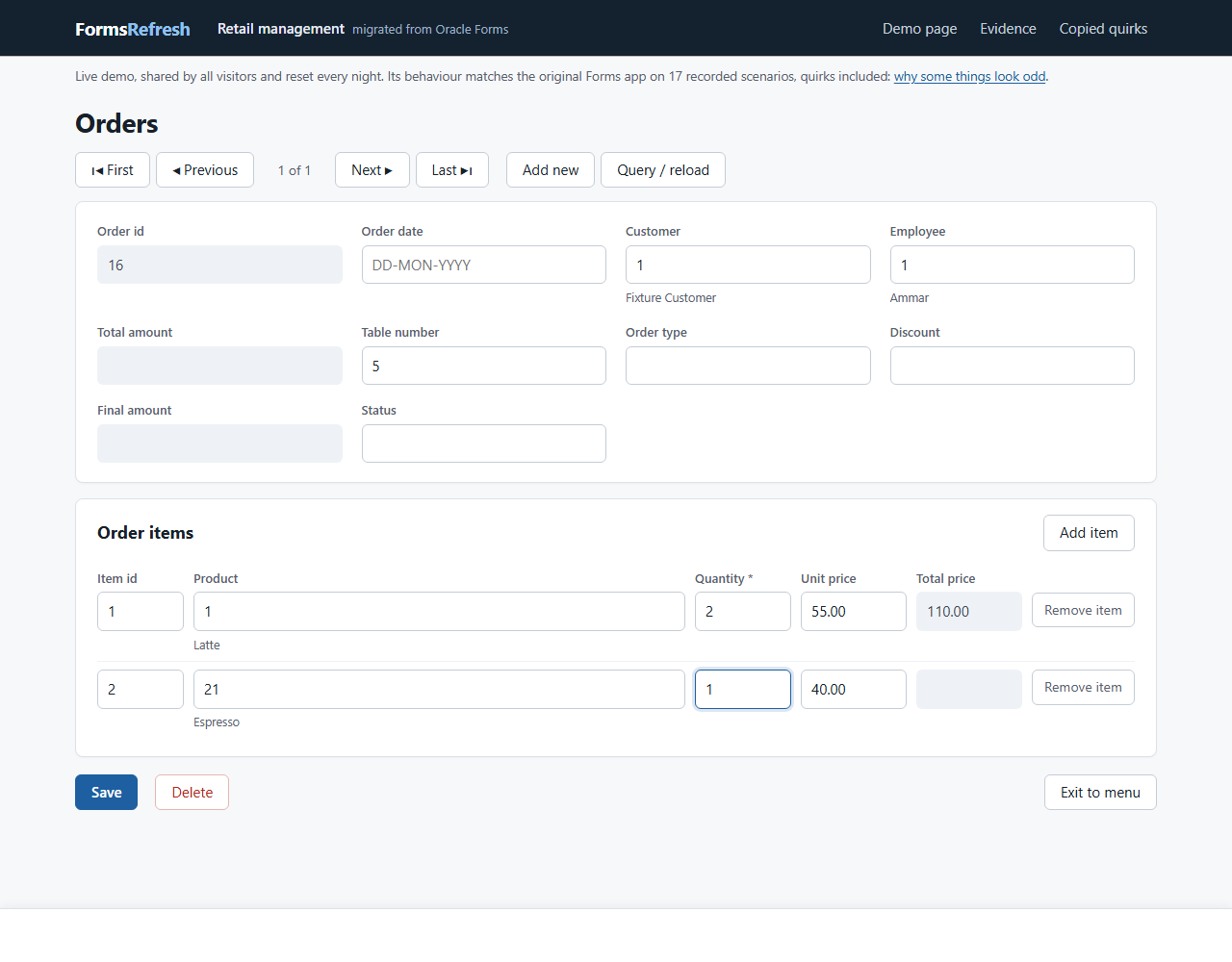

Step 7: line 2 quantity

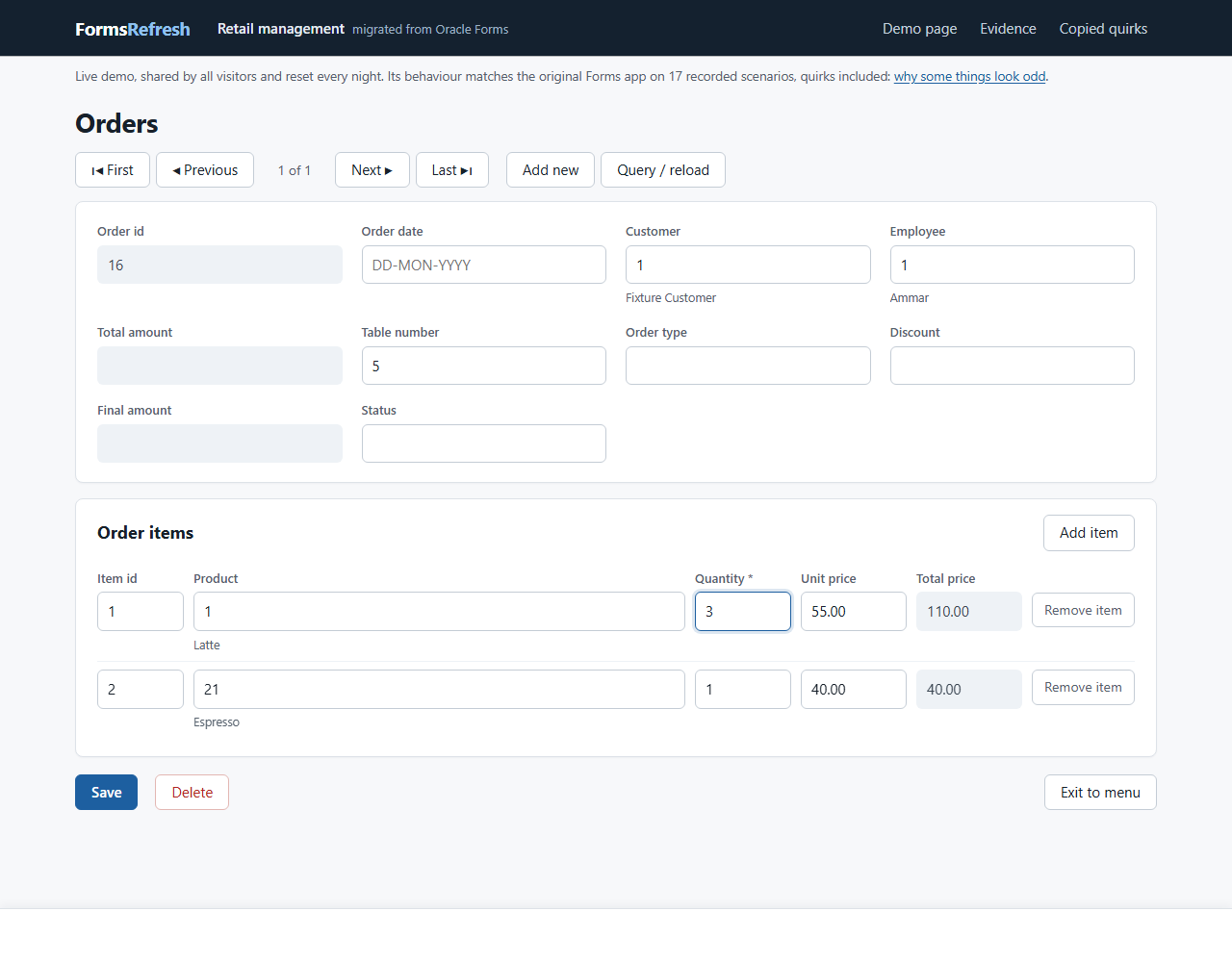

Step 8: change line 1 quantity

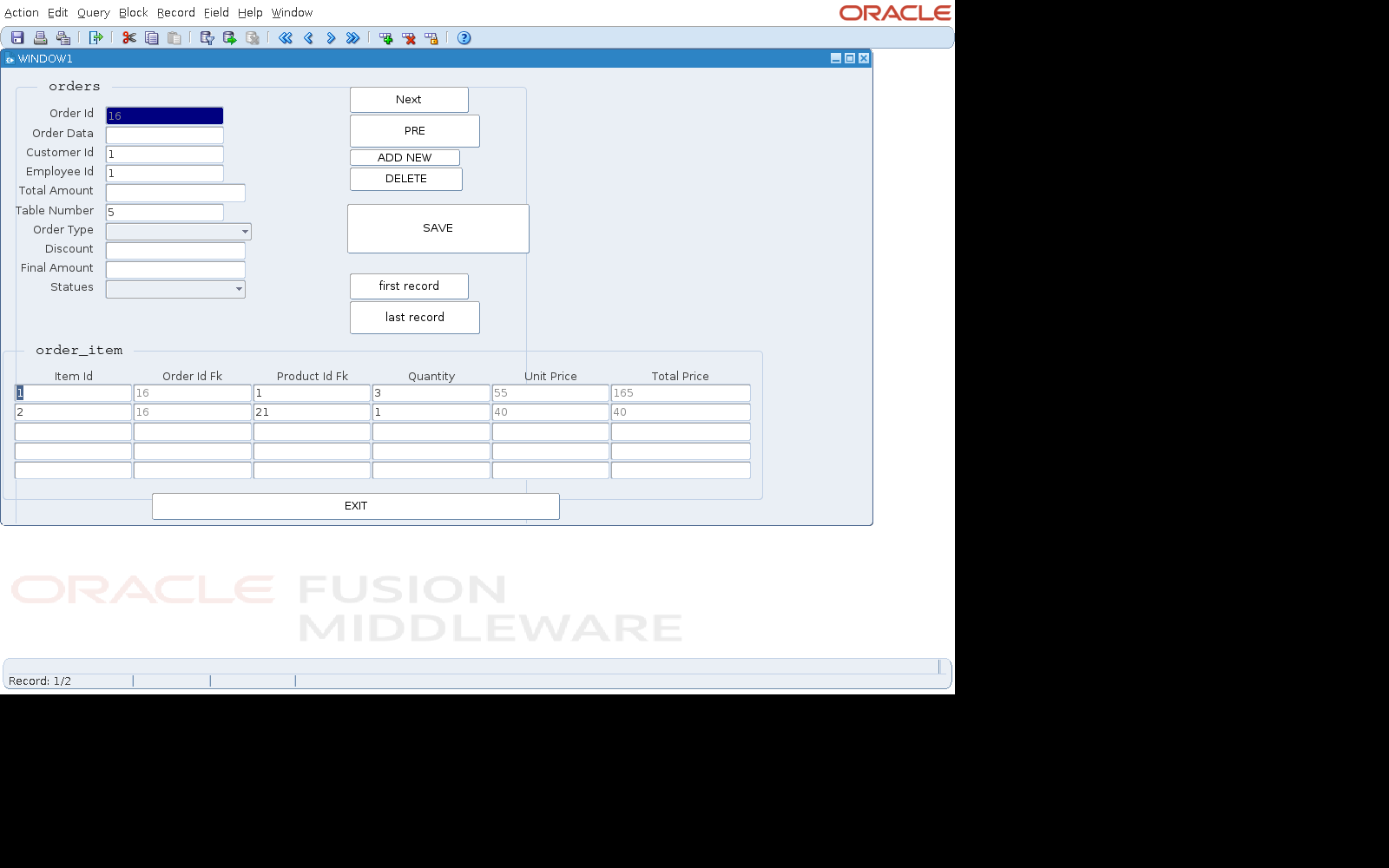

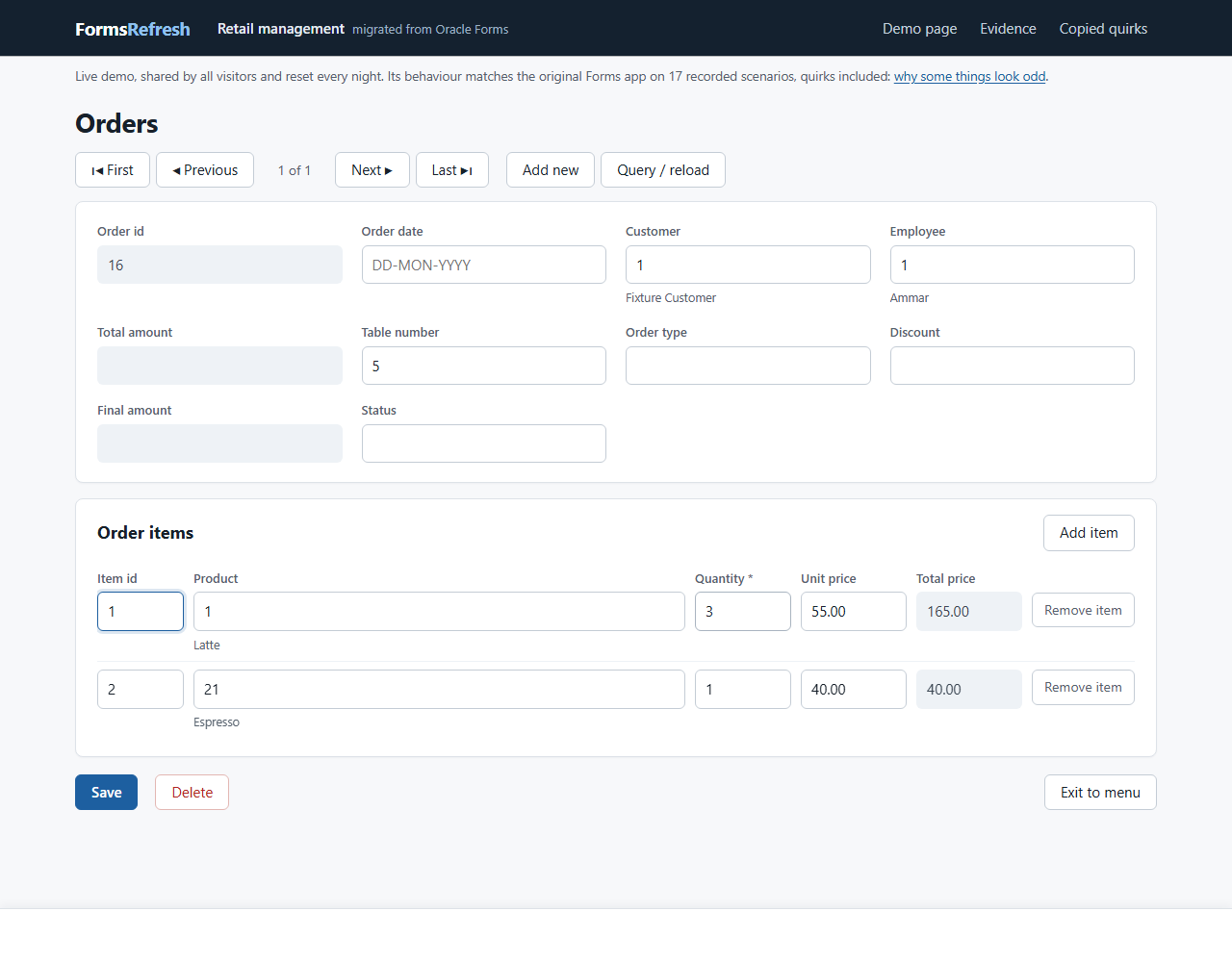

Step 9: leave quantity

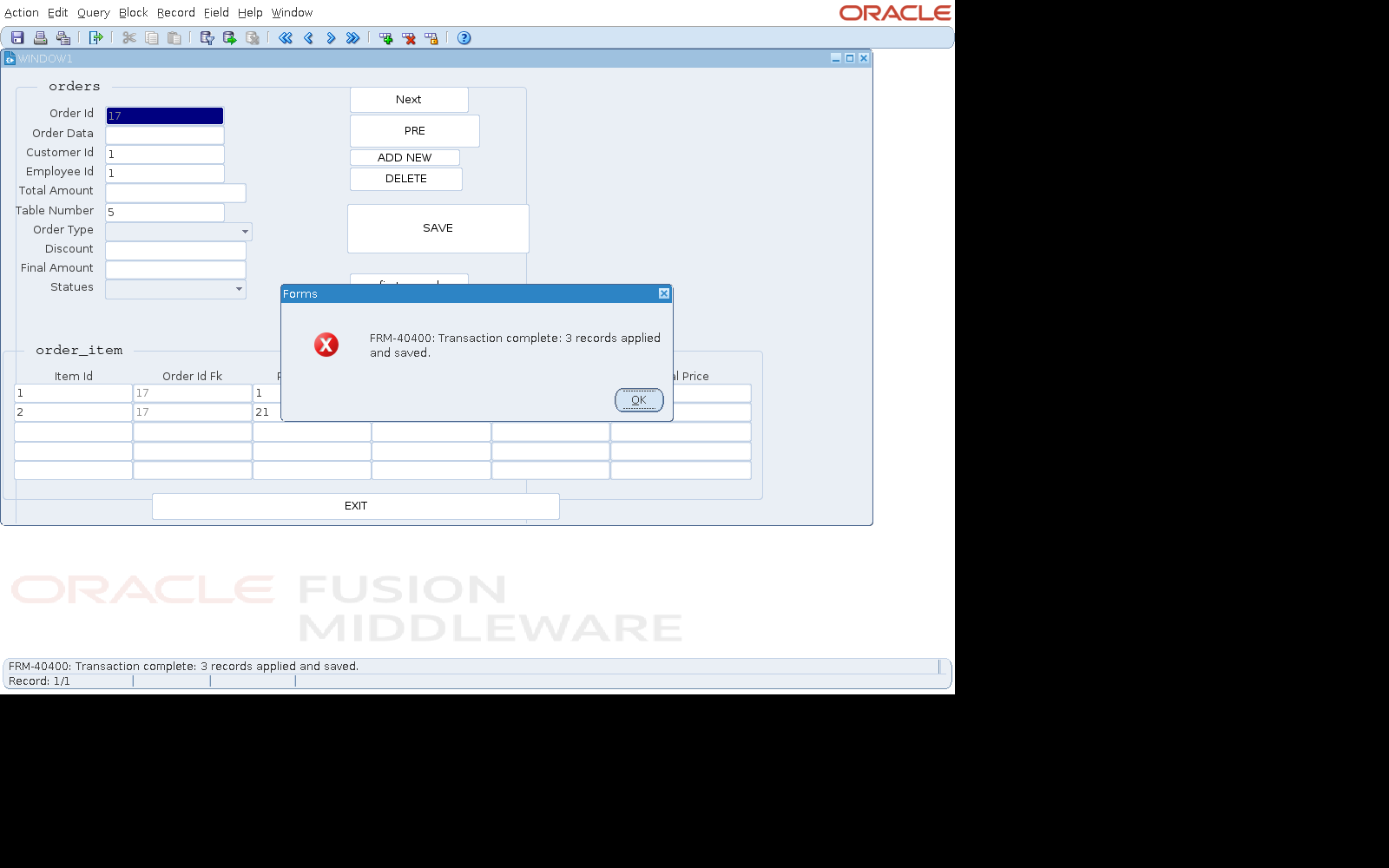

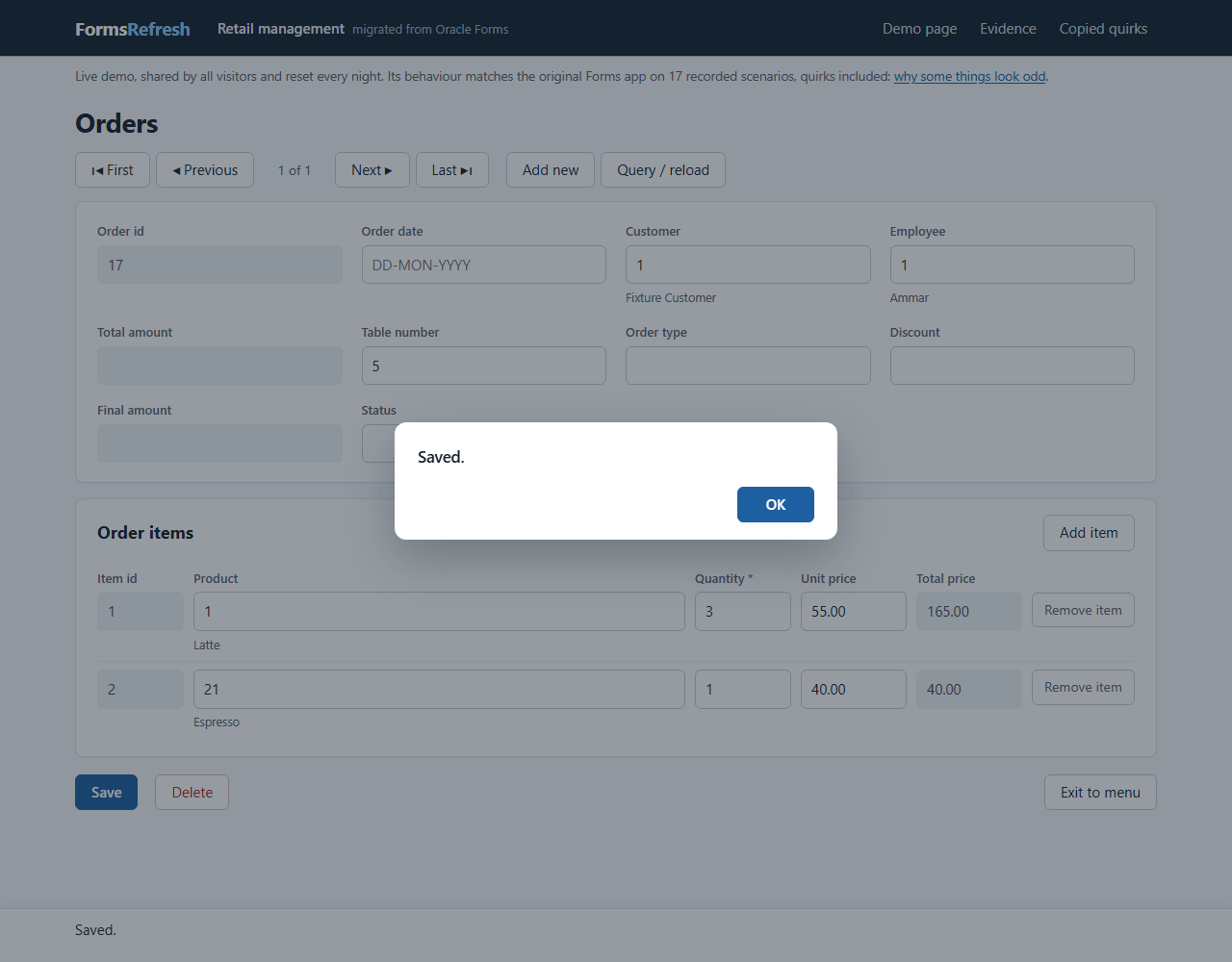

Step 10: save

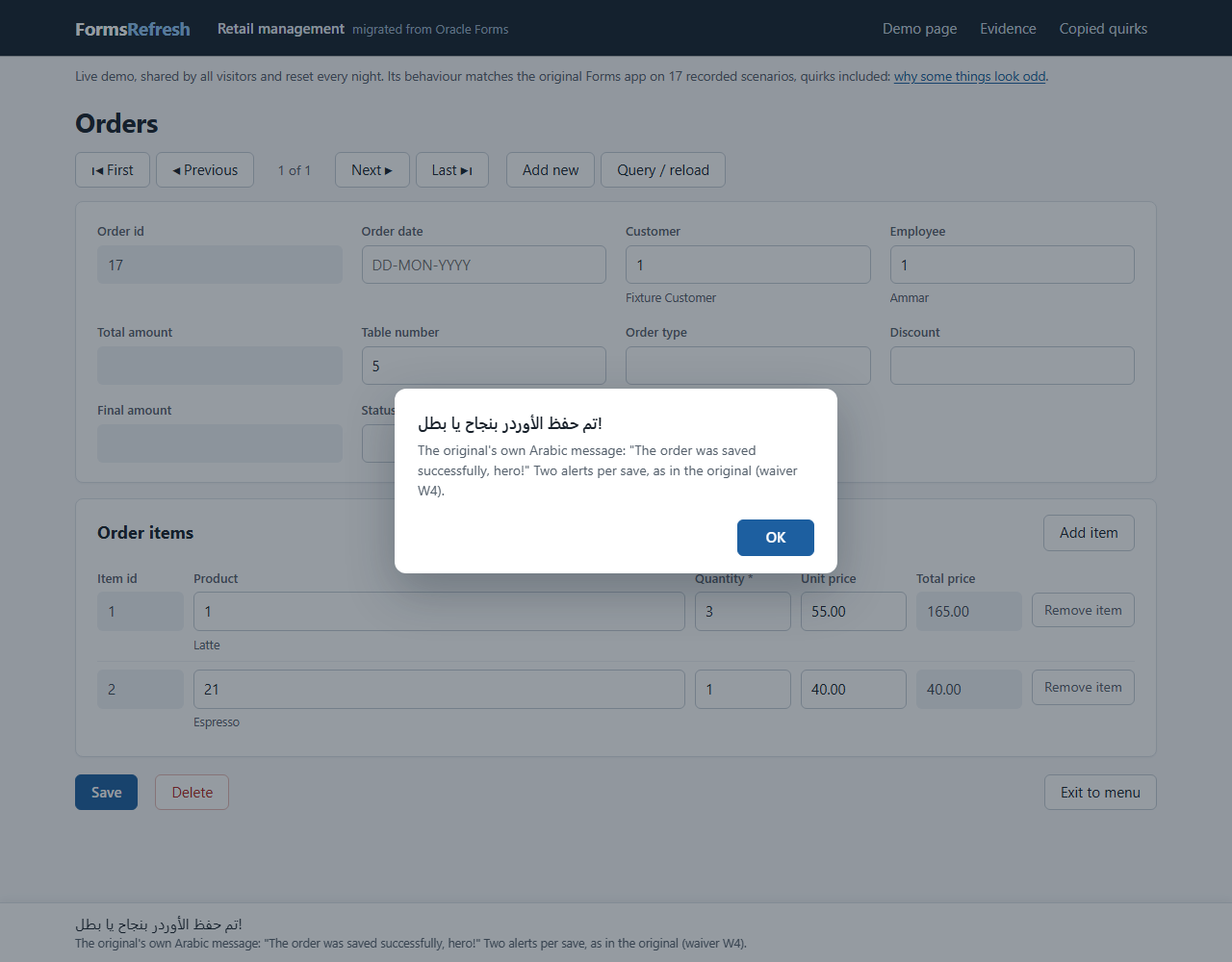

Step 11: acknowledge commit

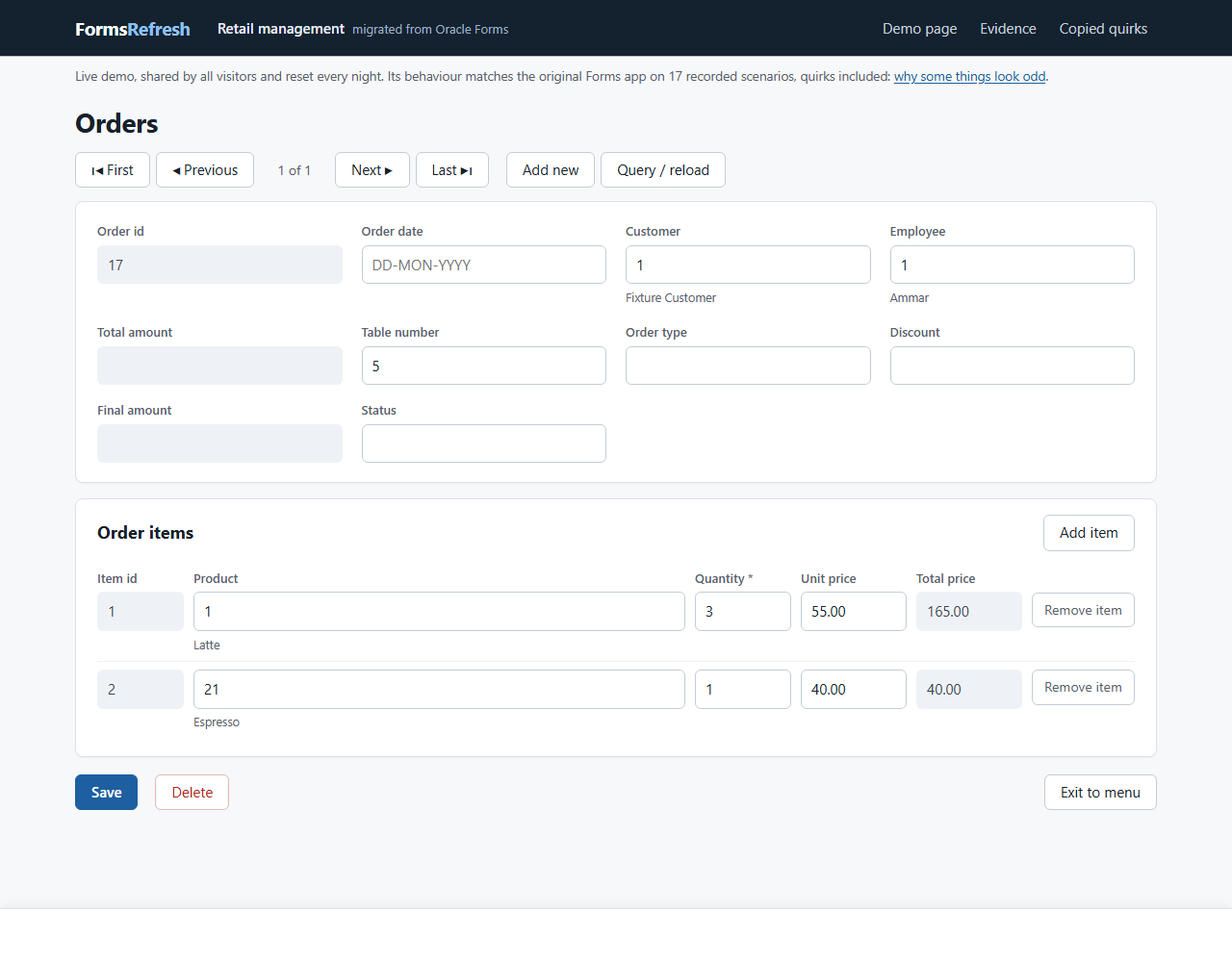

Step 12: acknowledge message

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

Database effects

ORDERS inserted: {"ORDER_ID": 17, "ORDER_DATA": null, "CUSTOMER_ID": 1, "EMPLOYEE_ID": 1, "TOTAL_AMOUNT": null, "TABLE_NUMBER": 5, "ORDER_TYPE": null, "DISCOUNT": null, "FINAL_AMOUNT": null, "STATUES": null}
ORDER_ITEMS inserted: {"ITEM_ID": 1, "ORDER_ID_FK": 17, "PRODUCT_ID_FK": 1, "QUANTITY": 3, "UNIT_PRICE": 55, "TOTAL_PRICE": 165}
ORDER_ITEMS inserted: {"ITEM_ID": 2, "ORDER_ID_FK": 17, "PRODUCT_ID_FK": 21, "QUANTITY": 1, "UNIT_PRICE": 40, "TOTAL_PRICE": 40}
sequence ORD_SEQ: next 16 -> 18, drawn [16, 17]
generated: ORDERS.ORDER_ID = 17 is ORD_SEQ#2
generated: ORDER_ITEMS.ORDER_ID_FK = 17 is ORD_SEQ#2
generated: ORDER_ITEMS.ORDER_ID_FK = 17 is ORD_SEQ#2

Classified diff against the migrated app

Diff: order-two-lines
counts: match 259, tolerated 290, waived 0, defect 0, unmapped 99, harness 0
generated-id pairs (source -> target): ORD_SEQ#1 -> ORD_SEQ#1 (draw order), ORD_SEQ#2 -> ORD_SEQ#2

waivers:
  W1 [proposed] ORDER_DATA saved as NULL: applied to 0 value(s)
  W2 [proposed] Order number consumed when the form opens: applied to 0 value(s)
  W3 [proposed] Line ITEM_ID typed by the user: applied to 0 value(s)
  W4 [proposed] Two modal alerts after saving: applied to 0 value(s)
  W5 [proposed] Key debug message on record navigation (single-table forms): applied to 0 value(s)
  W6 [proposed] Customer debug message in ORDERS: applied to 0 value(s)
  W7 [proposed] Placeholder alert on leaving Employees: applied to 0 value(s)
  W8 [proposed] Error message when the application starts: applied to 0 value(s)
  W9 [proposed] Keyboard hint of the Forms client while a question is open: applied to 0 value(s)
  W10 [proposed] An order added with Add cannot be saved: applied to 0 value(s)

[tolerated] db.ORDER_ITEMS.inserted.TOTAL_PRICE  rule=money  x2
[tolerated] db.ORDER_ITEMS.inserted.UNIT_PRICE  rule=money  x2
[tolerated] ui.values.ORDERS.ORDER_TYPE  rule=text  x13
[tolerated] ui.values.ORDERS.STATUES  rule=text  x13
[tolerated] ui.values.ORDER_ITEMS.ITEM_ID  rule=blank_rows  x46
[tolerated] ui.values.ORDER_ITEMS.PRODUCT_ID_FK  rule=blank_rows  x46
[tolerated] ui.values.ORDER_ITEMS.QUANTITY  rule=blank_rows  x46
[tolerated] ui.values.ORDER_ITEMS.TOTAL_PRICE  rule=blank_rows  x46
[tolerated] ui.values.ORDER_ITEMS.TOTAL_PRICE  rule=money  x13
[tolerated] ui.values.ORDER_ITEMS.UNIT_PRICE  rule=blank_rows  x46
[tolerated] ui.values.ORDER_ITEMS.UNIT_PRICE  rule=money  x17
[unmapped] ui.alert.title  (browser dialogs have no title)  x2
[unmapped] ui.record  (no target counterpart)  x13
[unmapped] ui.seen.alert.title  (browser dialogs have no title)  x2
[unmapped] ui.seen.lov.column.Price  (column not shown in the target)  x2
[unmapped] ui.seen.lov.title  x2
[unmapped] ui.values.ORDER_ITEMS.ORDER_ID_FK  (no target item)  x65
[unmapped] ui.windows  (no target counterpart)  x13

Waivers

No waiver applies to this scenario: every compared value matches or is within the tolerance policy.
