Retail order system / orders-navigate-unsaved

orders-navigate-unsaved

Query, change a line quantity, press Next; Cancel, then Next again and No.

0defects

140values match

189tolerated by policy

0waived

62unmapped

Unmapped values are recorded on the original but have no counterpart the mapping names in the migrated app, so they are listed, not compared, and are not defects. Here: alert titles (6); the Forms record indicator ("Record: 1/2" in the status bar) (8); ORDER_ITEMS.ORDER_ID_FK, a Forms item with no field in the migrated screen (40); the list of open Forms windows (8).

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action	Checked on the original
0		Open form `ORDERS`
1	execute query	Click `Toolbar.Execute Query`
2	do not save	Answer the alert No	`ORDERS.ORDER_ID[0]` = 901, `ORDER_ITEMS.QUANTITY[0]` = 2
3	change quantity	Type `ORDER_ITEMS.QUANTITY[0]` = 4
4	next order	Click `ORDERS.NEXT_BTN`	alert Do you want to save the changes you have made?
5	cancel	Answer the alert Cancel	`ORDERS.ORDER_ID[0]` = 901, `ORDER_ITEMS.QUANTITY[0]` = 4
6	next order again	Click `ORDERS.NEXT_BTN`	alert Do you want to save the changes you have made?
7	discard	Answer the alert No	`ORDERS.ORDER_ID[0]` = 902

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

Step 0: open ORDERS

Original (Oracle Forms 14.1.2), step 00-open — Original (Oracle Forms 14.1.2)

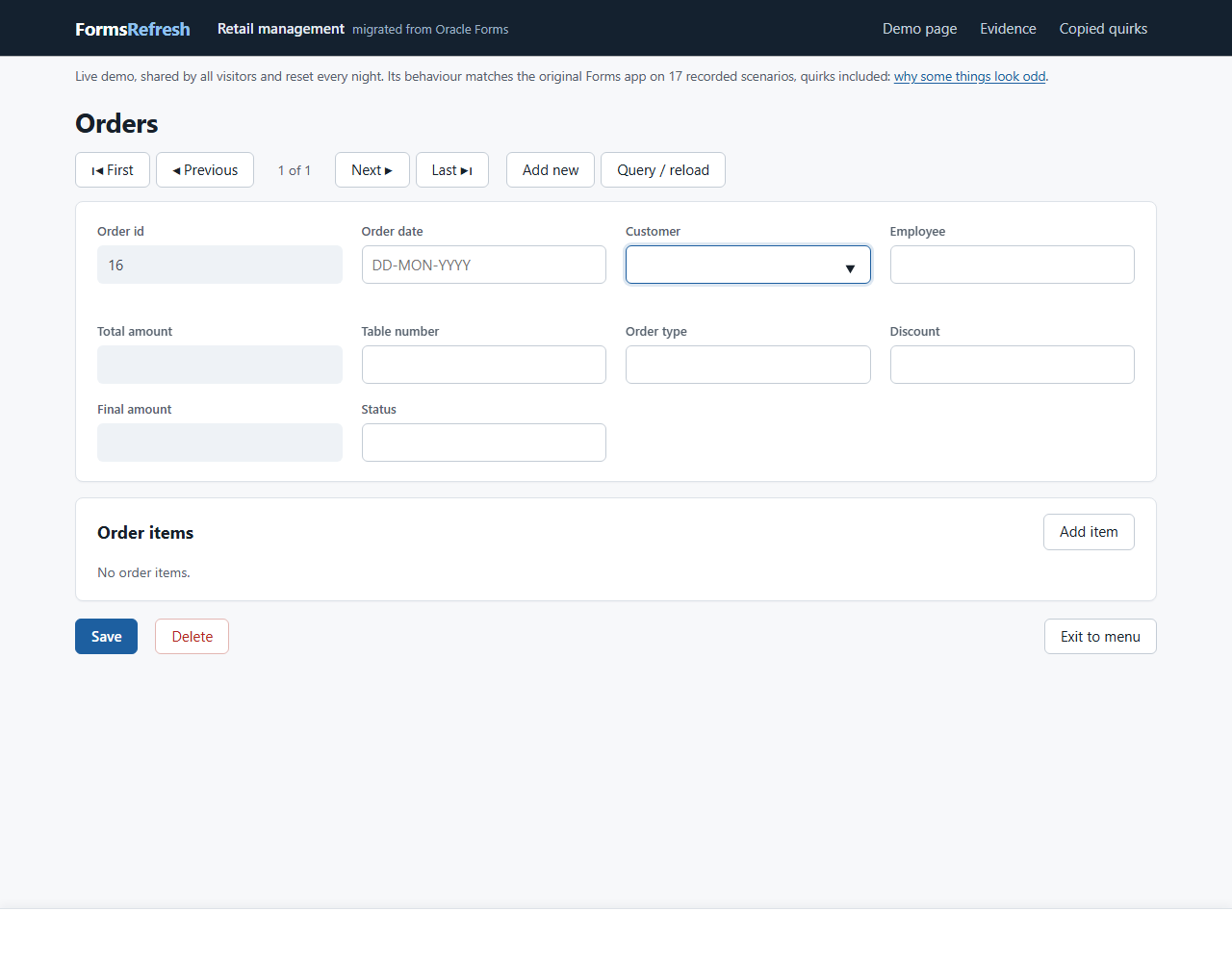

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

Step 1: execute query

Original (Oracle Forms 14.1.2), step 01-execute-query — Original (Oracle Forms 14.1.2)

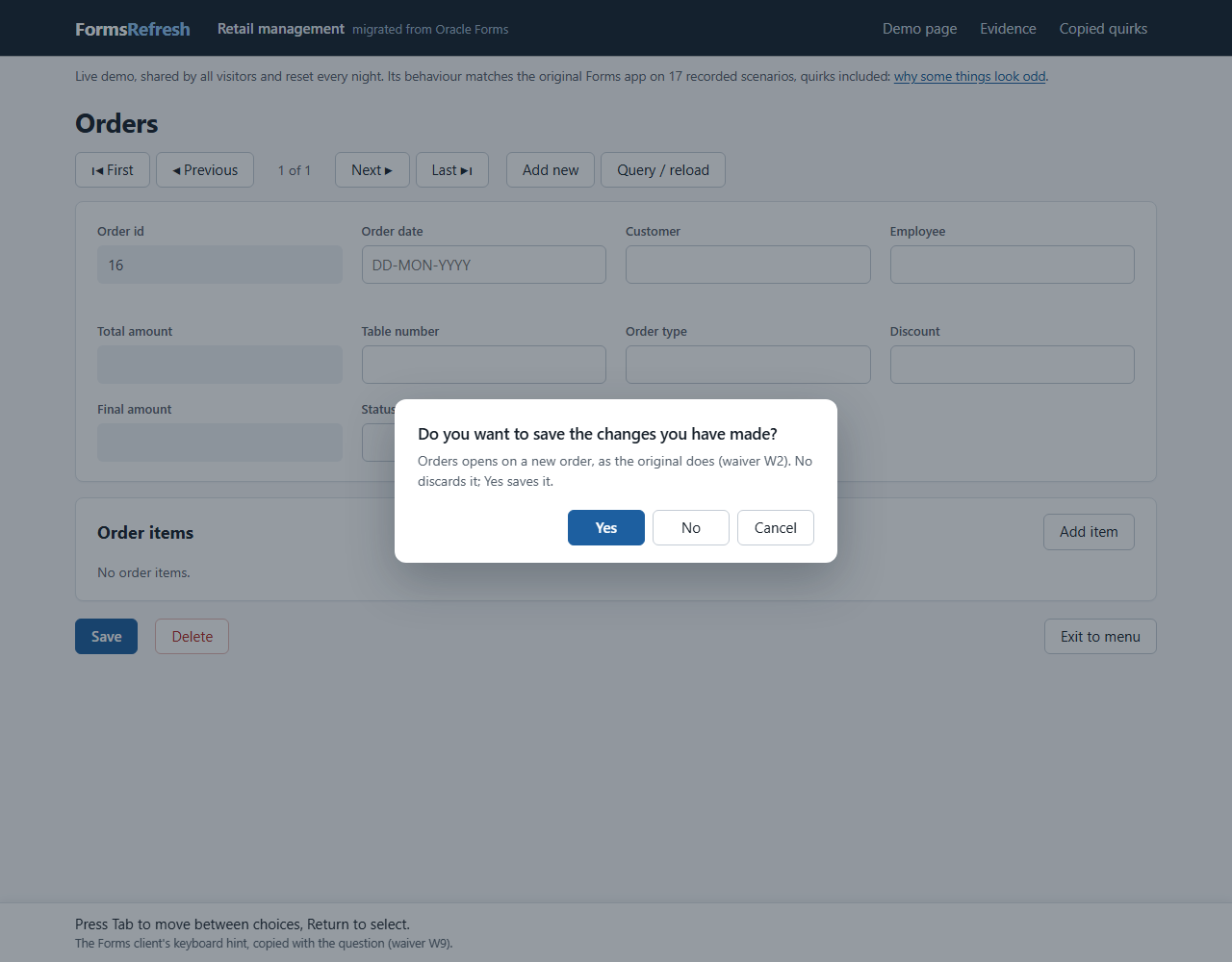

Migrated (.NET, PostgreSQL), step 01-execute-query — Migrated (.NET, PostgreSQL)

Step 2: do not save

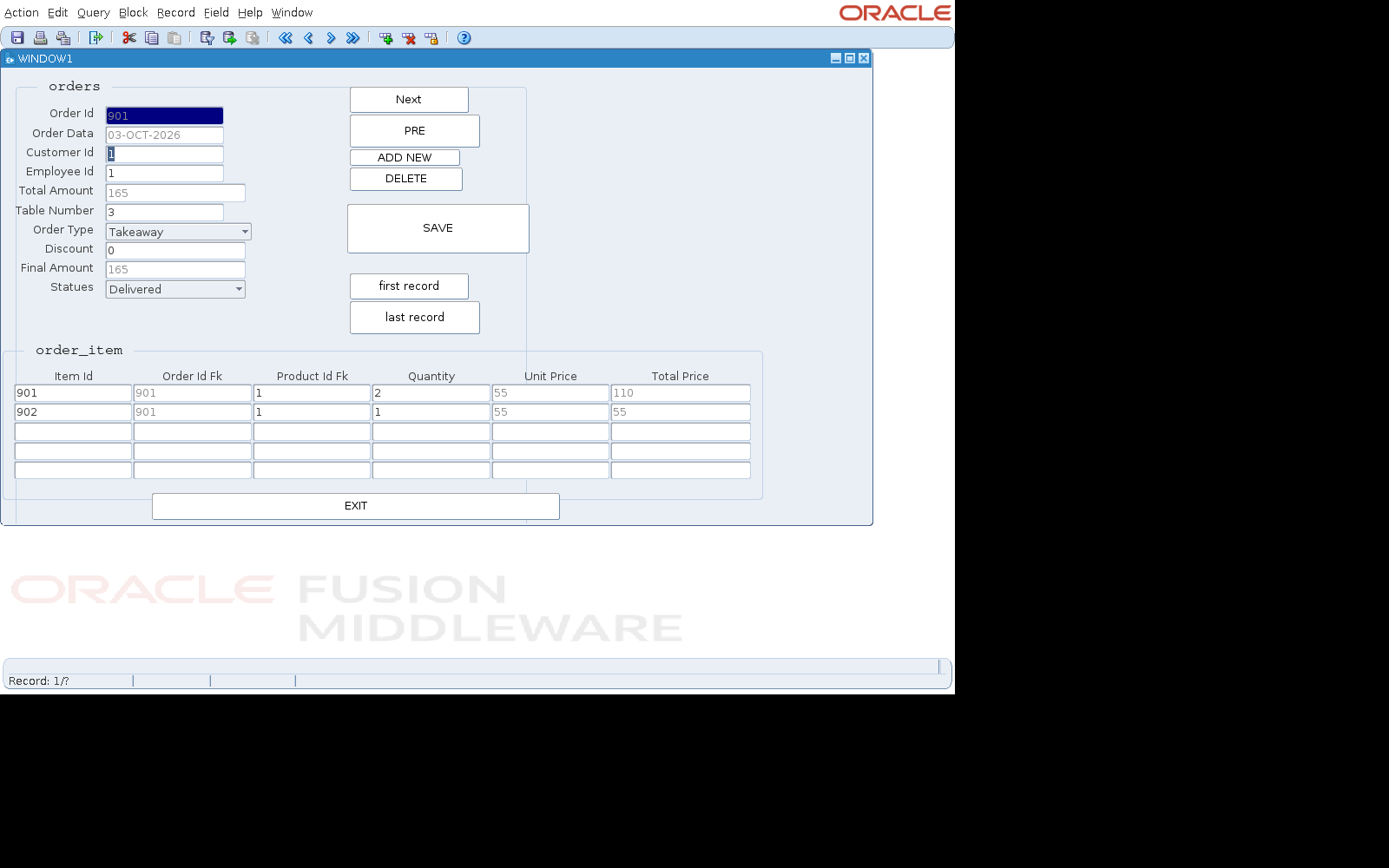

Original (Oracle Forms 14.1.2), step 02-do-not-save — Original (Oracle Forms 14.1.2)

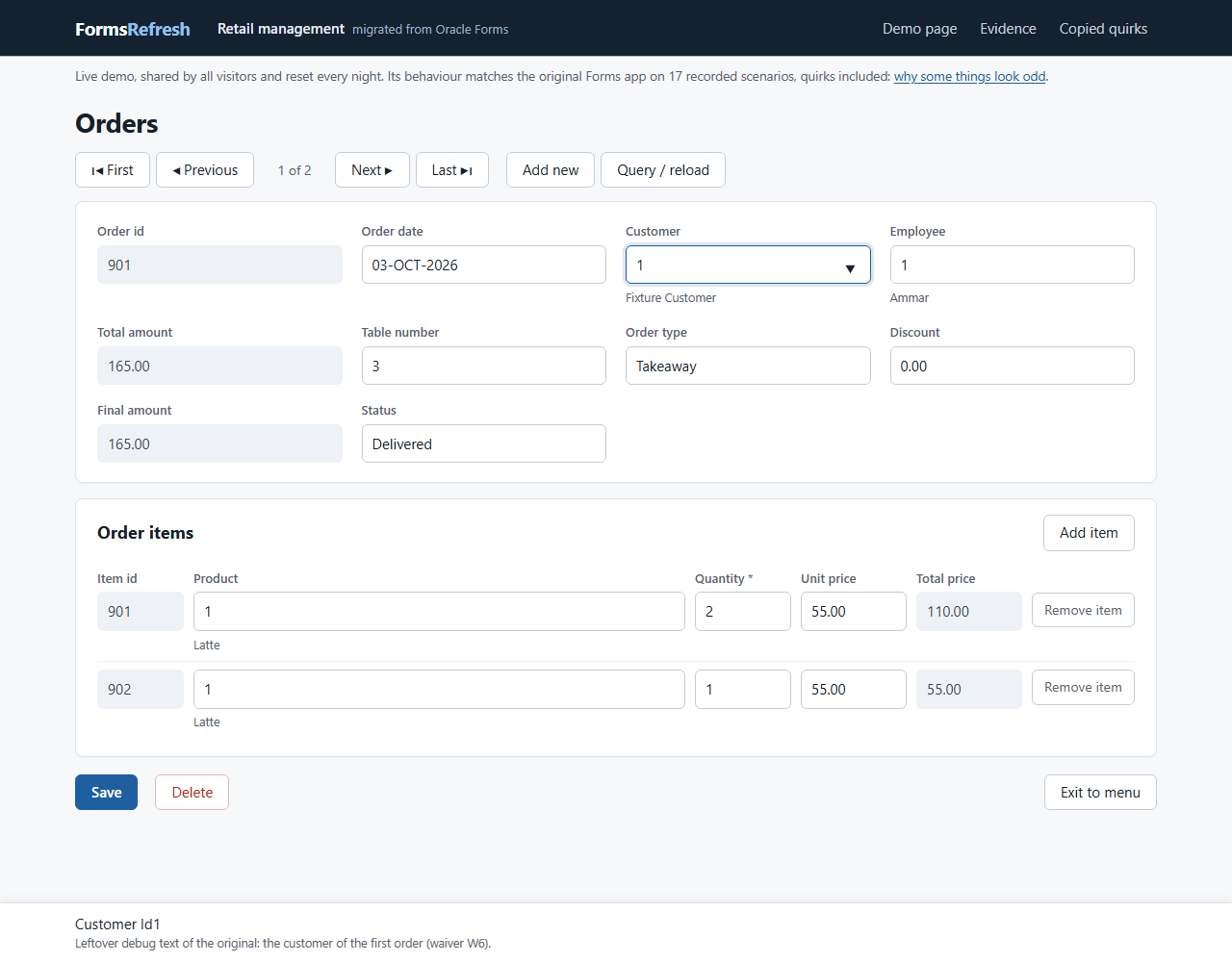

Migrated (.NET, PostgreSQL), step 02-do-not-save — Migrated (.NET, PostgreSQL)

Step 3: change quantity

Original (Oracle Forms 14.1.2), step 03-change-quantity — Original (Oracle Forms 14.1.2)

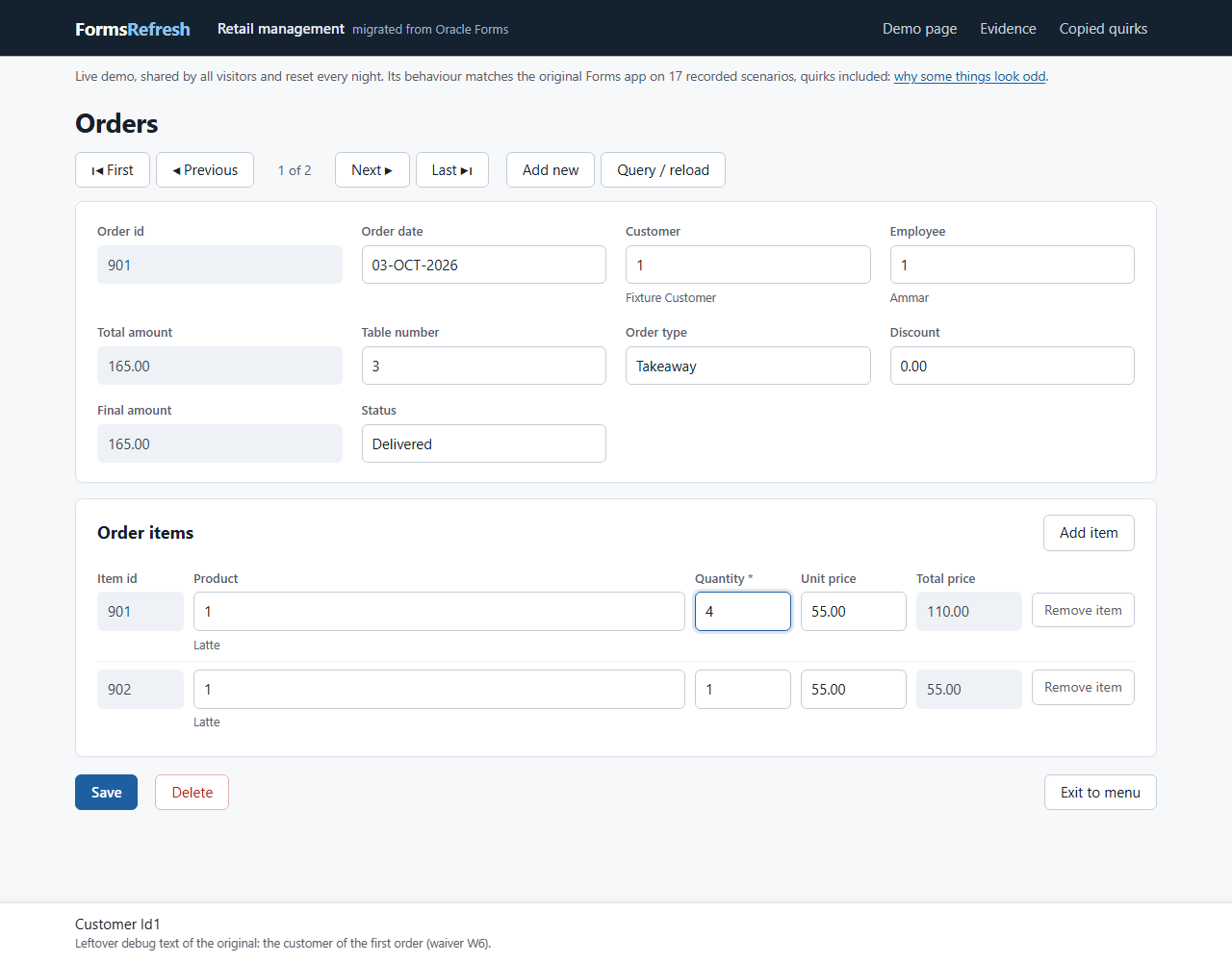

Migrated (.NET, PostgreSQL), step 03-change-quantity — Migrated (.NET, PostgreSQL)

Step 4: next order

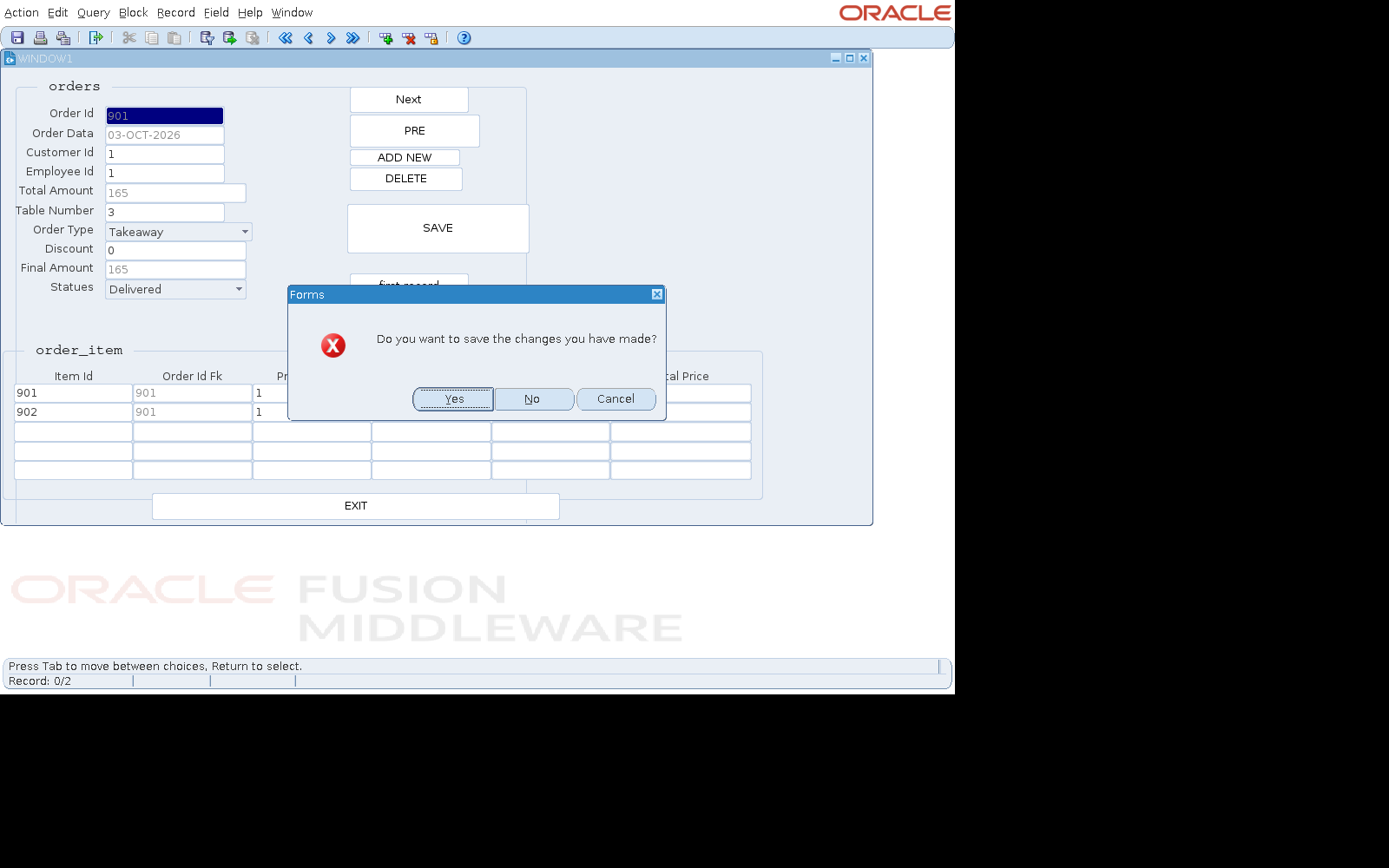

Original (Oracle Forms 14.1.2), step 04-next-order — Original (Oracle Forms 14.1.2)

Migrated (.NET, PostgreSQL), step 04-next-order — Migrated (.NET, PostgreSQL)

Step 5: cancel

Original (Oracle Forms 14.1.2), step 05-cancel — Original (Oracle Forms 14.1.2)

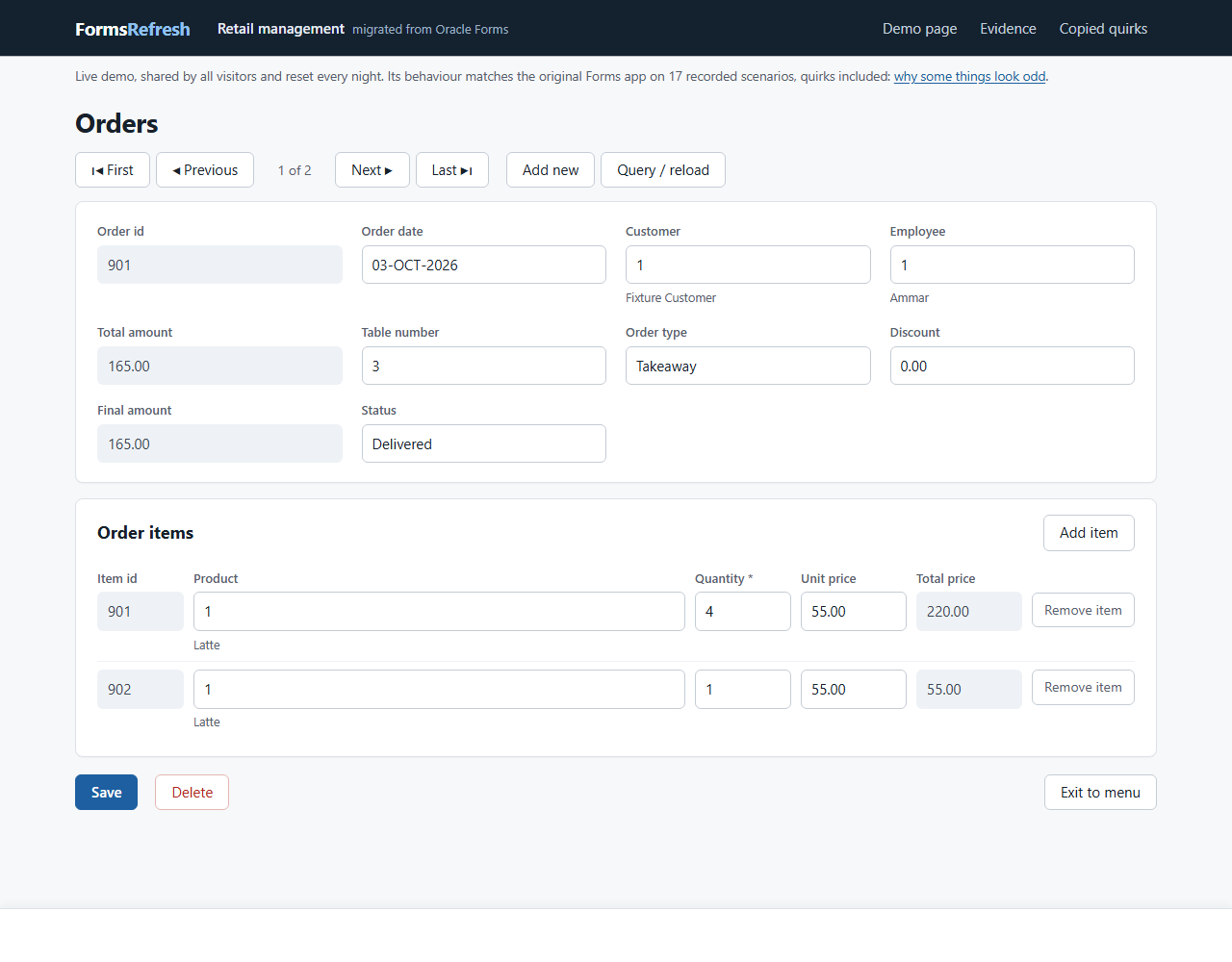

Migrated (.NET, PostgreSQL), step 05-cancel — Migrated (.NET, PostgreSQL)

Step 6: next order again

Original (Oracle Forms 14.1.2), step 06-next-order-again — Original (Oracle Forms 14.1.2)

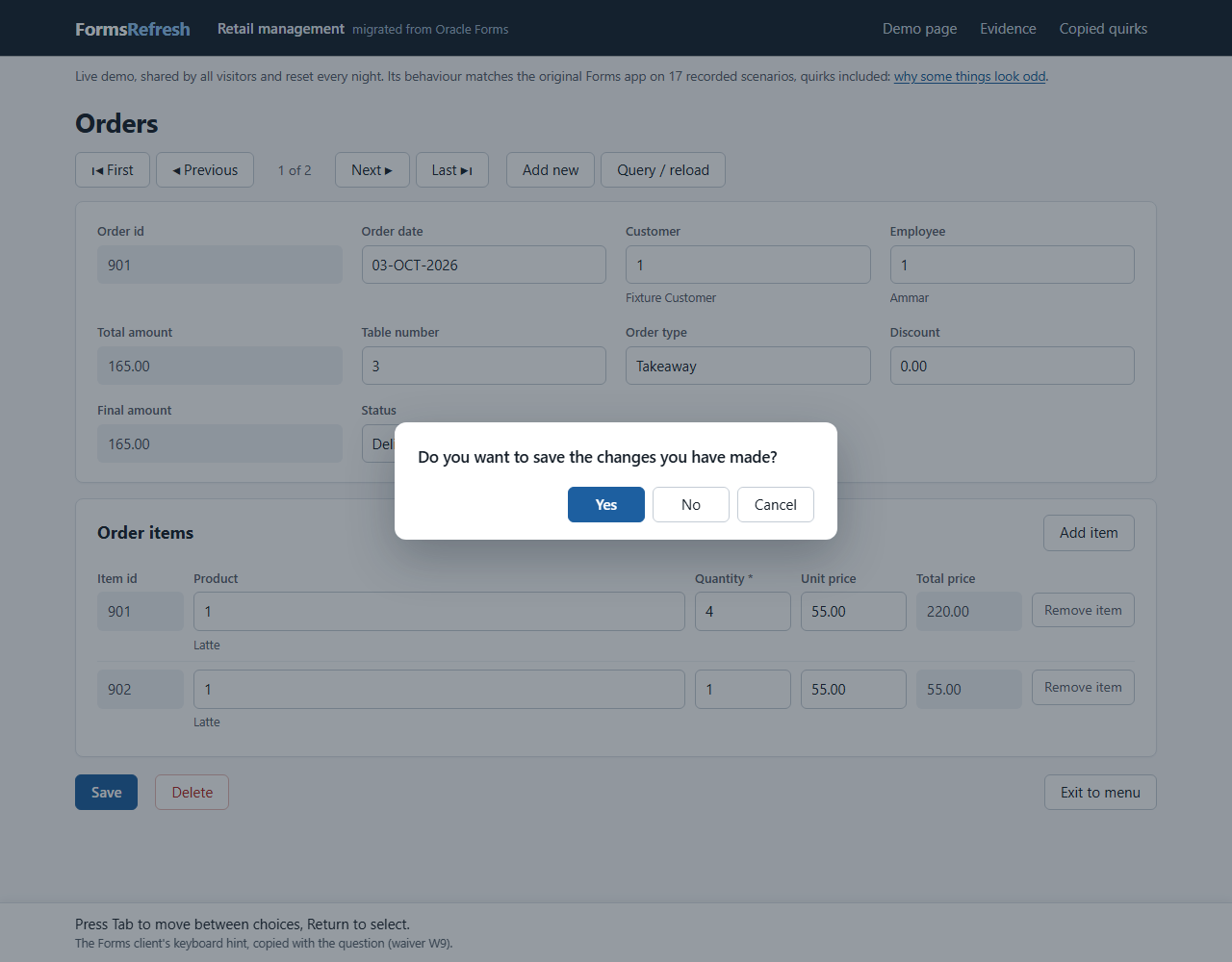

Migrated (.NET, PostgreSQL), step 06-next-order-again — Migrated (.NET, PostgreSQL)

Step 7: discard

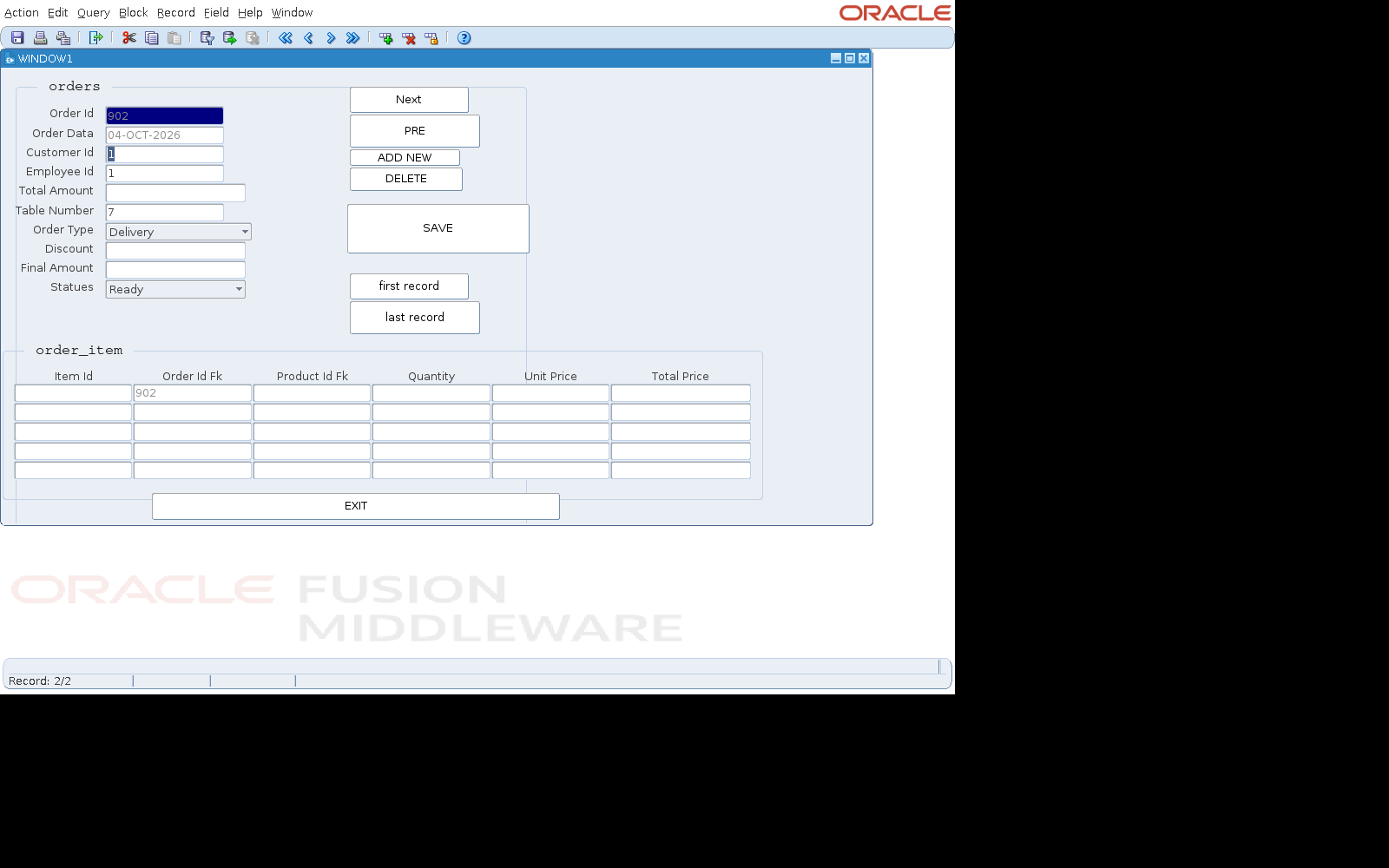

Original (Oracle Forms 14.1.2), step 07-discard — Original (Oracle Forms 14.1.2)

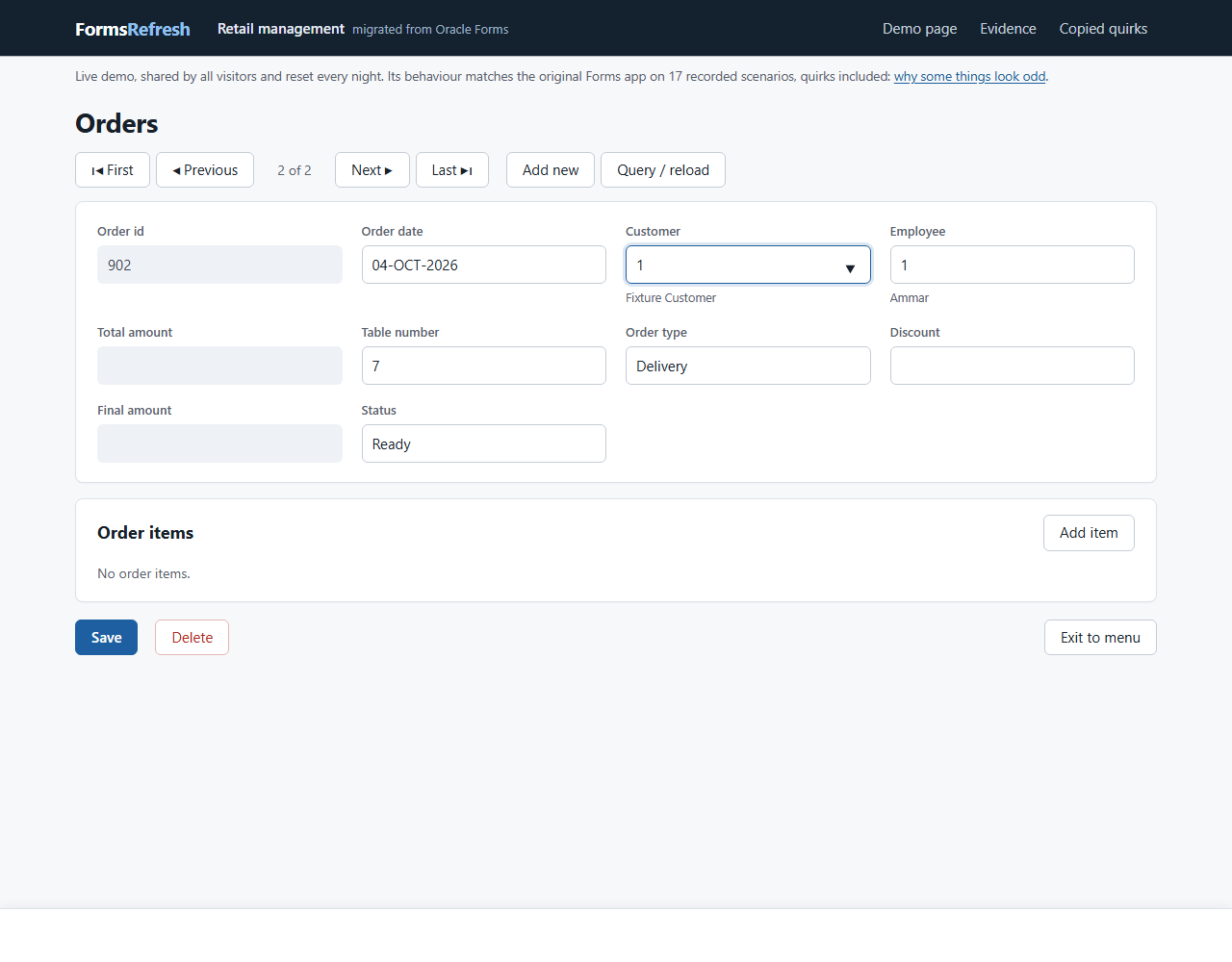

Migrated (.NET, PostgreSQL), step 07-discard — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed	Message line	Alert	Expect
0		`Open form ORDERS`	`ORDERS.CUSTOMER_ID[0]`	`ORDERS.ORDER_ID[0]` = 16
1	execute query	`Click Toolbar.Execute Query`	`FWindow/PushButton:Yes`		Press Tab to move between choices, Return to select.	Do you want to save the changes you have made?
2	do not save	`Answer the alert No`	`ORDERS.CUSTOMER_ID[0]`	`ORDERS.CUSTOMER_ID[0]` = 1 `ORDERS.DISCOUNT[0]` = 0 `ORDERS.EMPLOYEE_ID[0]` = 1 `ORDERS.FINAL_AMOUNT[0]` = 165 `ORDERS.ORDER_DATA[0]` = 03-OCT-2026 `ORDERS.ORDER_ID[0]` = 901 `ORDERS.ORDER_TYPE[0]` = Takeaway `ORDERS.STATUES[0]` = Delivered `ORDERS.TABLE_NUMBER[0]` = 3 `ORDERS.TOTAL_AMOUNT[0]` = 165 `ORDER_ITEMS.ITEM_ID[0]` = 901 `ORDER_ITEMS.ITEM_ID[1]` = 902 `ORDER_ITEMS.ORDER_ID_FK[0]` = 901 `ORDER_ITEMS.ORDER_ID_FK[1]` = 901 `ORDER_ITEMS.PRODUCT_ID_FK[0]` = 1 `ORDER_ITEMS.PRODUCT_ID_FK[1]` = 1 `ORDER_ITEMS.QUANTITY[0]` = 2 `ORDER_ITEMS.QUANTITY[1]` = 1 `ORDER_ITEMS.TOTAL_PRICE[0]` = 110 `ORDER_ITEMS.TOTAL_PRICE[1]` = 55 `ORDER_ITEMS.UNIT_PRICE[0]` = 55 `ORDER_ITEMS.UNIT_PRICE[1]` = 55	Customer Id1		pass
3	change quantity	`Type ORDER_ITEMS.QUANTITY[0] = 4`	`ORDER_ITEMS.QUANTITY[0]`	`ORDER_ITEMS.QUANTITY[0]` = 4	Customer Id1
4	next order	`Click ORDERS.NEXT_BTN`	`FWindow/PushButton:Yes`	`ORDER_ITEMS.TOTAL_PRICE[0]` = 220	Press Tab to move between choices, Return to select.	Do you want to save the changes you have made?	pass
5	cancel	`Answer the alert Cancel`	`ORDERS.NEXT_BTN[0]`				pass
6	next order again	`Click ORDERS.NEXT_BTN`	`FWindow/PushButton:Yes`		Press Tab to move between choices, Return to select.	Do you want to save the changes you have made?	pass
7	discard	`Answer the alert No`	`ORDERS.CUSTOMER_ID[0]`	`ORDERS.ORDER_DATA[0]` = 04-OCT-2026 `ORDERS.ORDER_ID[0]` = 902 `ORDERS.ORDER_TYPE[0]` = Delivery `ORDERS.STATUES[0]` = Ready `ORDERS.TABLE_NUMBER[0]` = 7 `ORDER_ITEMS.ORDER_ID_FK[0]` = 902			pass

Database effects

sequence ORD_SEQ: next 16 -> 17, drawn [16]

Classified diff against the migrated app

Diff: orders-navigate-unsaved
counts: match 140, tolerated 189, waived 0, defect 0, unmapped 62, harness 0
generated-id pairs (source -> target): ORD_SEQ#1 -> ORD_SEQ#1 (draw order)

waivers:
  W1 [proposed] ORDER_DATA saved as NULL: applied to 0 value(s)
  W2 [proposed] Order number consumed when the form opens: applied to 0 value(s)
  W3 [proposed] Line ITEM_ID typed by the user: applied to 0 value(s)
  W4 [proposed] Two modal alerts after saving: applied to 0 value(s)
  W5 [proposed] Key debug message on record navigation (single-table forms): applied to 0 value(s)
  W6 [proposed] Customer debug message in ORDERS: applied to 0 value(s)
  W7 [proposed] Placeholder alert on leaving Employees: applied to 0 value(s)
  W8 [proposed] Error message when the application starts: applied to 0 value(s)
  W9 [proposed] Keyboard hint of the Forms client while a question is open: applied to 0 value(s)
  W10 [proposed] An order added with Add cannot be saved: applied to 0 value(s)

[tolerated] ui.values.ORDERS.DISCOUNT  rule=money  x5
[tolerated] ui.values.ORDERS.FINAL_AMOUNT  rule=money  x5
[tolerated] ui.values.ORDERS.ORDER_TYPE  rule=text  x2
[tolerated] ui.values.ORDERS.STATUES  rule=text  x2
[tolerated] ui.values.ORDERS.TOTAL_AMOUNT  rule=money  x5
[tolerated] ui.values.ORDER_ITEMS.ITEM_ID  rule=blank_rows  x30
[tolerated] ui.values.ORDER_ITEMS.PRODUCT_ID_FK  rule=blank_rows  x30
[tolerated] ui.values.ORDER_ITEMS.QUANTITY  rule=blank_rows  x30
[tolerated] ui.values.ORDER_ITEMS.TOTAL_PRICE  rule=blank_rows  x30
[tolerated] ui.values.ORDER_ITEMS.TOTAL_PRICE  rule=money  x10
[tolerated] ui.values.ORDER_ITEMS.UNIT_PRICE  rule=blank_rows  x30
[tolerated] ui.values.ORDER_ITEMS.UNIT_PRICE  rule=money  x10
[unmapped] ui.alert.title  (browser dialogs have no title)  x3
[unmapped] ui.record  (no target counterpart)  x8
[unmapped] ui.seen.alert.title  (browser dialogs have no title)  x3
[unmapped] ui.values.ORDER_ITEMS.ORDER_ID_FK  (no target item)  x40
[unmapped] ui.windows  (no target counterpart)  x8

Waivers

No waiver applies to this scenario: every compared value matches or is within the tolerance policy.
