Retail order system / products-add-delete

products-add-delete

Add a record, save, delete the unreferenced fixture record.

0defects

102values match

8tolerated by policy

0waived

17unmapped

Unmapped values are recorded on the original but have no counterpart the mapping names in the migrated app, so they are listed, not compared, and are not defects. Here: the Forms record indicator ("Record: 1/2" in the status bar) (8); list-of-values window titles (1); the list of open Forms windows (8).

Three runs from a fresh database gave byte-identical diffs. Behaviour that looks odd in the migrated app but is the original's: faithful to the original and waivers. Files: scenario, golden record, target record, diff (JSON).

Scenario steps

Items are addressed by their Forms name (BLOCK.ITEM[row]), the same name in the original and, through the mapping, in the migrated app.

#	Step	Action	Checked on the original
0		Open form `product_form`
1	add new	Click `PRODUCTS.ADD_BTN`
2	fields	Type `PRODUCTS.PRODUCT_ID` = 903, `PRODUCTS.NAME` = Mocha, `PRODUCTS.PRICE` = 60
3	category	List of values on `PRODUCTS.CATEGORY_ID_FK`, pick `Category_Name` = Snacks
4	remaining fields	Type `PRODUCTS.COST` = 25, `PRODUCTS.AVAILABLE` = Yes
5	save	Click `PRODUCTS.SAVE_BTN`
6	last record	Click `PRODUCTS.ITEM16`	`PRODUCTS.NAME[0]` = Espresso
7	delete	Click `PRODUCTS.DELETE_BTN`

Screens, step by step

Left: the original Oracle Forms application, recorded on a virtual display. Right: the migrated application in headless Chromium. Screenshots are evidence only; the comparison works on the recorded values.

Step 0: open product_form

Original (Oracle Forms 14.1.2), step 00-open — Original (Oracle Forms 14.1.2)

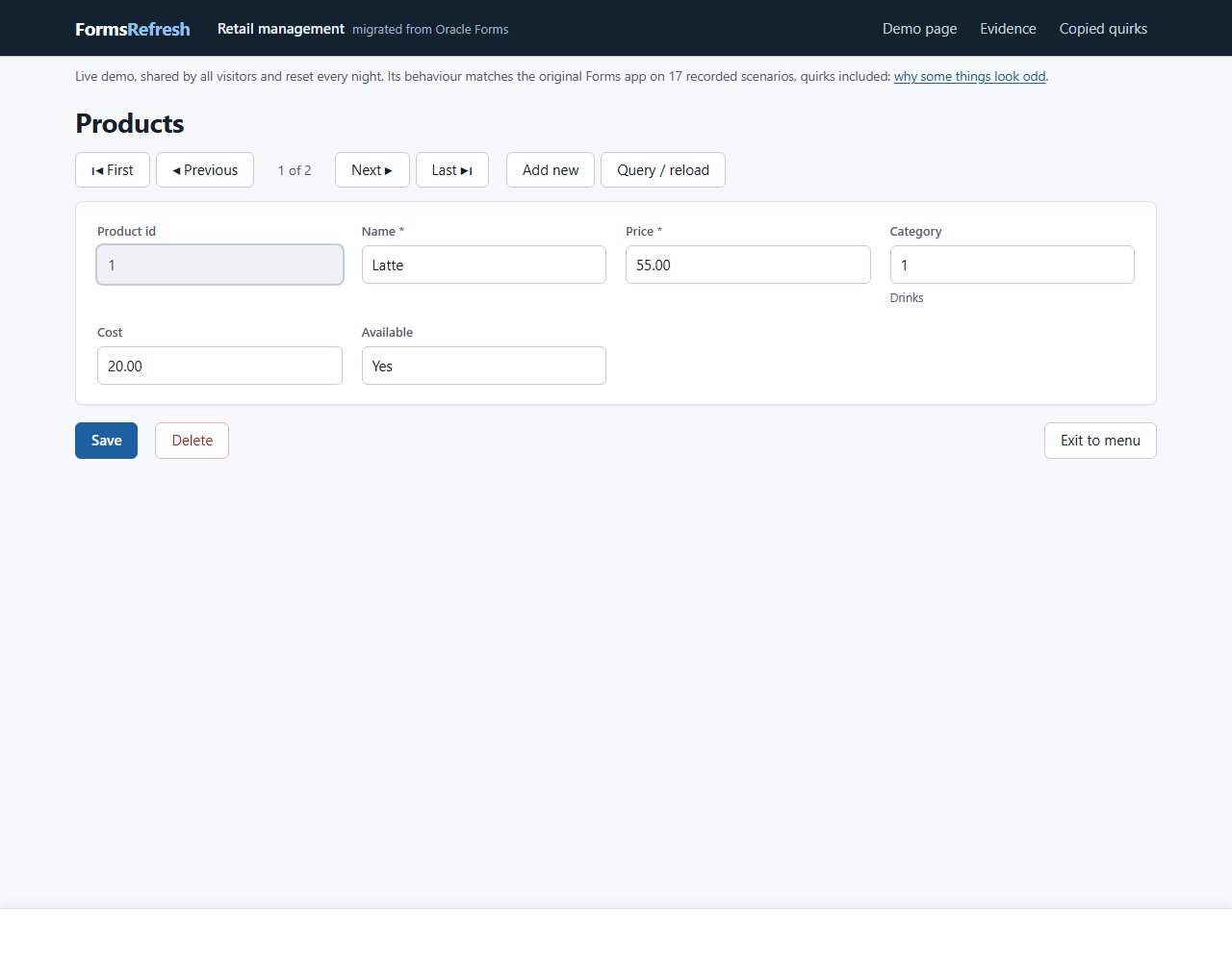

Migrated (.NET, PostgreSQL), step 00-open — Migrated (.NET, PostgreSQL)

Step 1: add new

Original (Oracle Forms 14.1.2), step 01-add-new — Original (Oracle Forms 14.1.2)

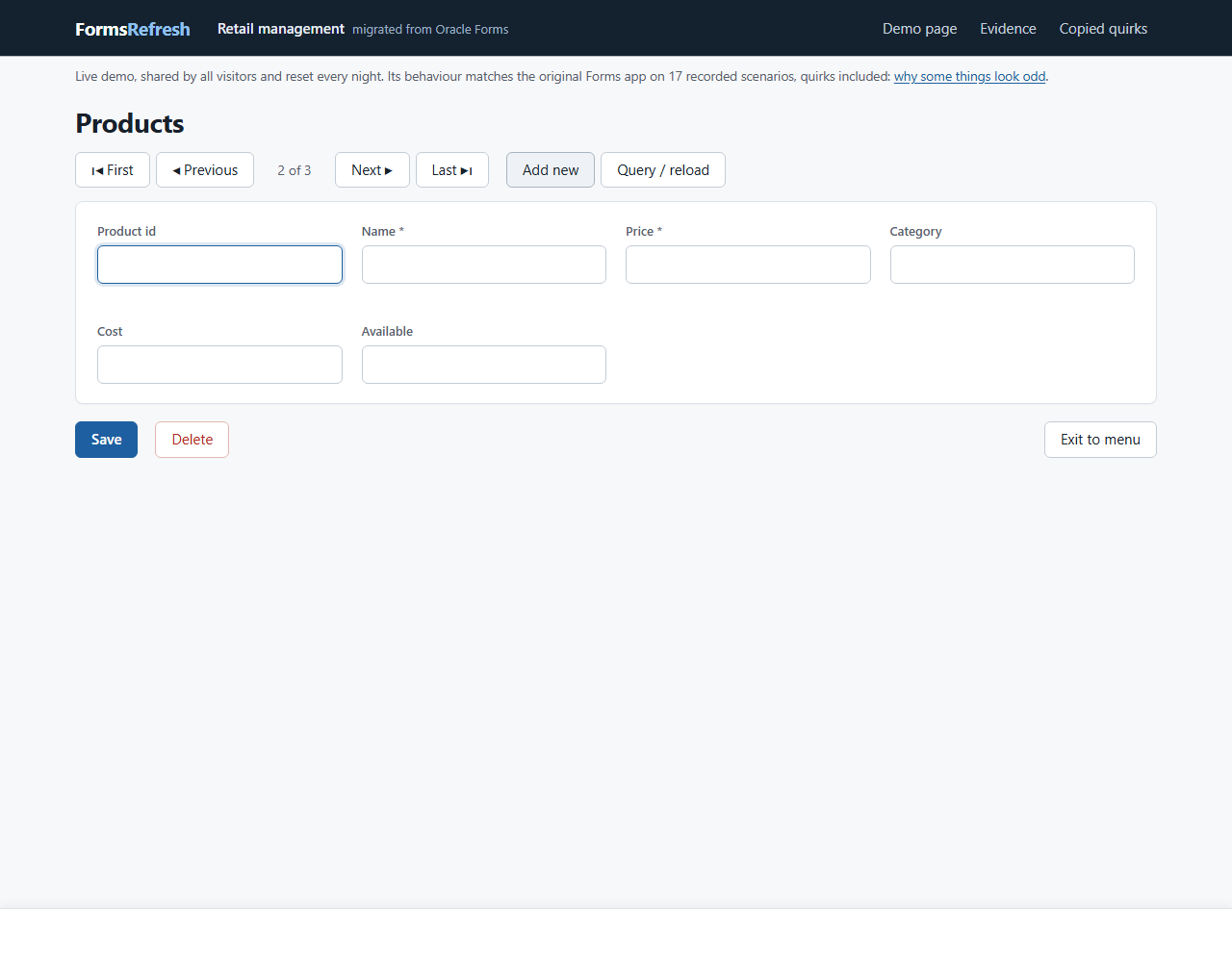

Migrated (.NET, PostgreSQL), step 01-add-new — Migrated (.NET, PostgreSQL)

Step 2: fields

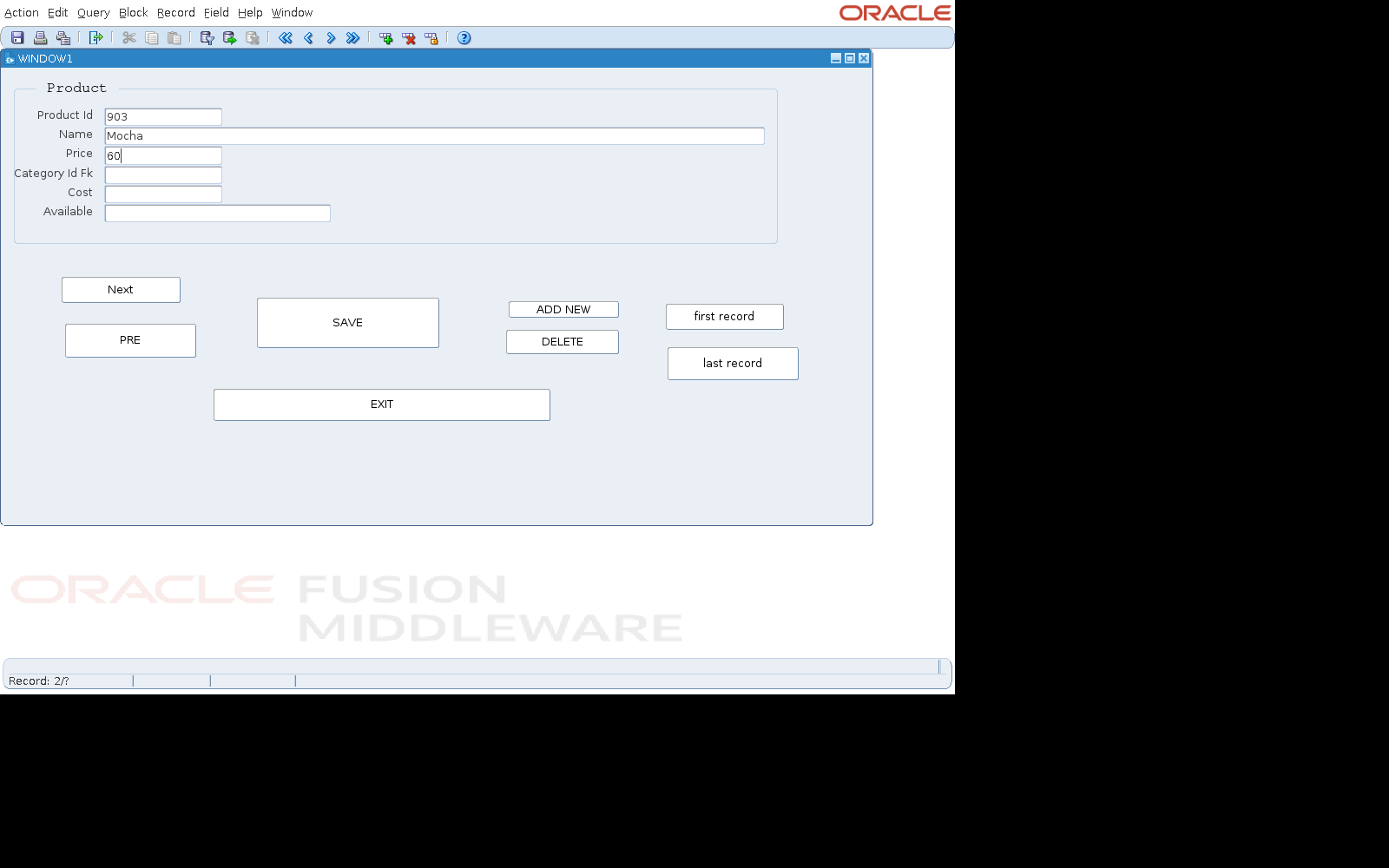

Original (Oracle Forms 14.1.2), step 02-fields — Original (Oracle Forms 14.1.2)

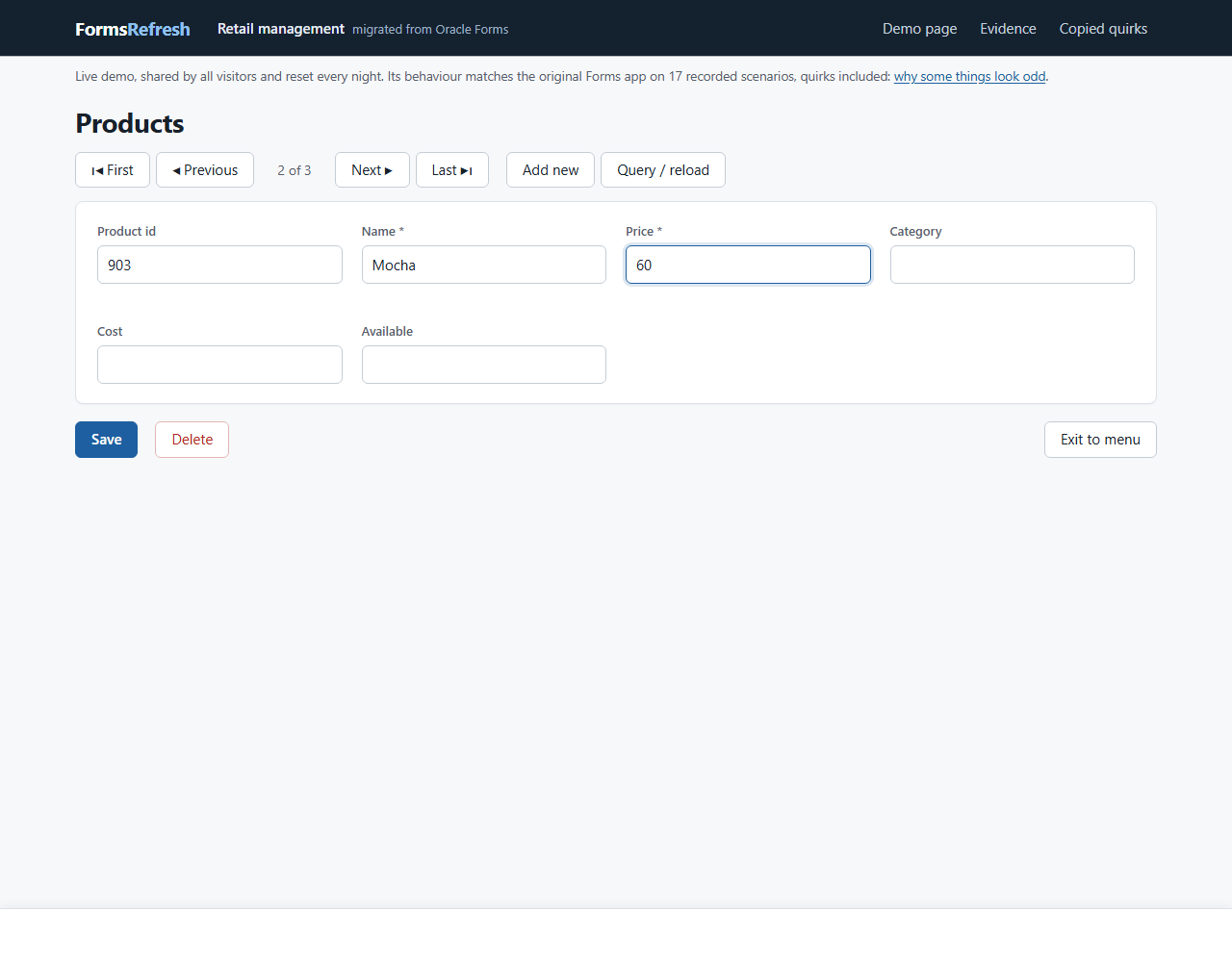

Migrated (.NET, PostgreSQL), step 02-fields — Migrated (.NET, PostgreSQL)

Step 3: category

Original (Oracle Forms 14.1.2), step 03-category — Original (Oracle Forms 14.1.2)

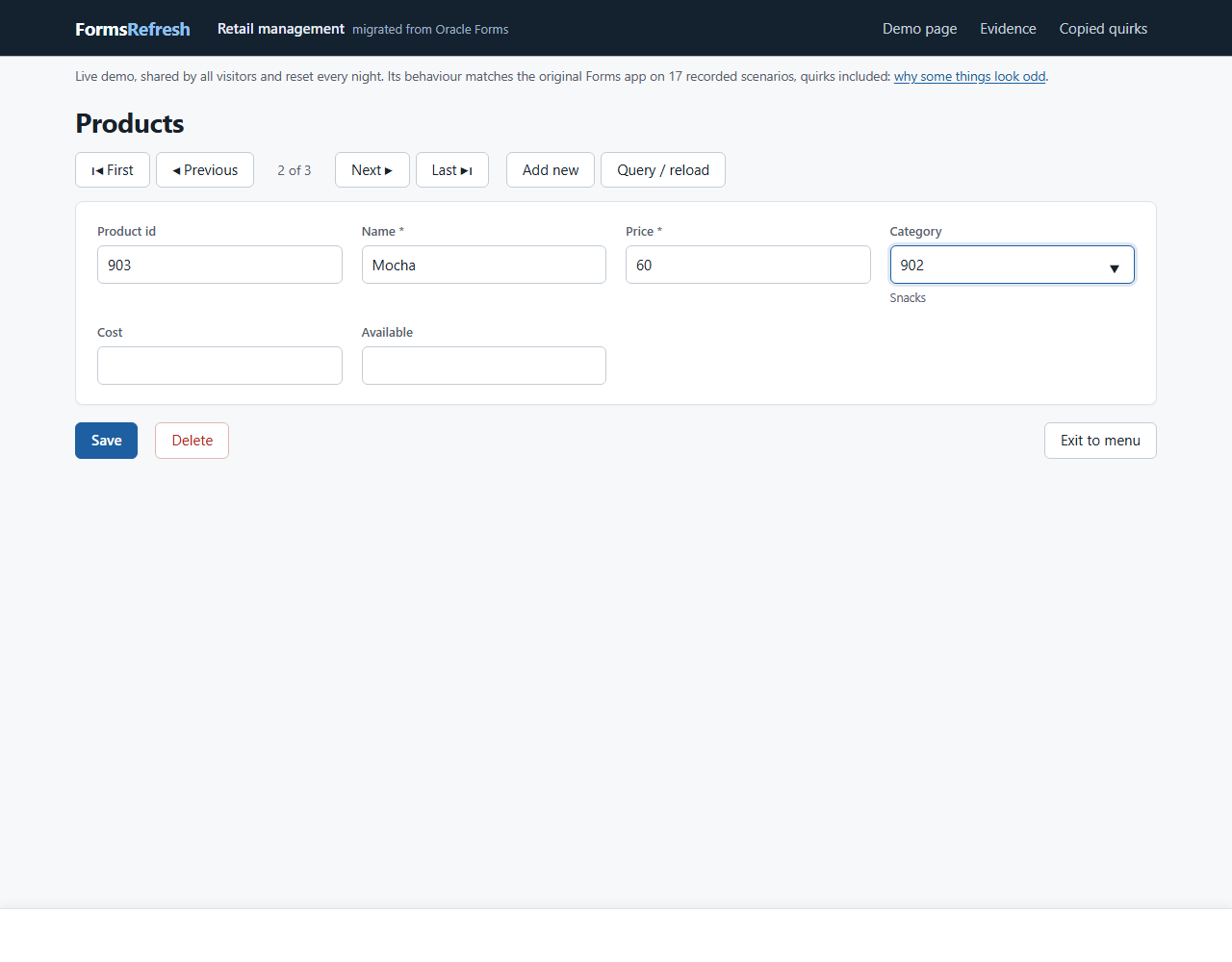

Migrated (.NET, PostgreSQL), step 03-category — Migrated (.NET, PostgreSQL)

Step 4: remaining fields

Original (Oracle Forms 14.1.2), step 04-remaining-fields — Original (Oracle Forms 14.1.2)

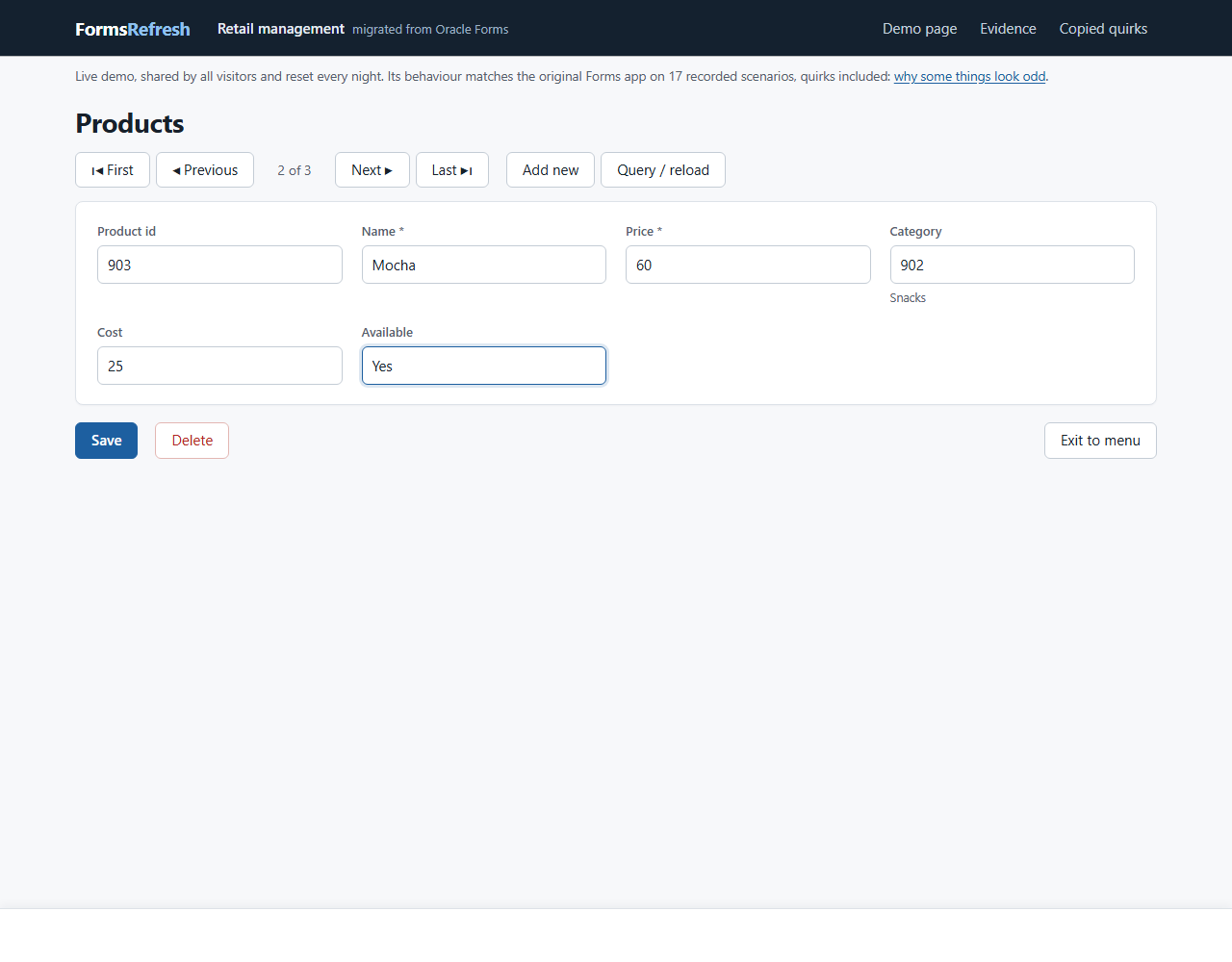

Migrated (.NET, PostgreSQL), step 04-remaining-fields — Migrated (.NET, PostgreSQL)

Step 5: save

Original (Oracle Forms 14.1.2), step 05-save — Original (Oracle Forms 14.1.2)

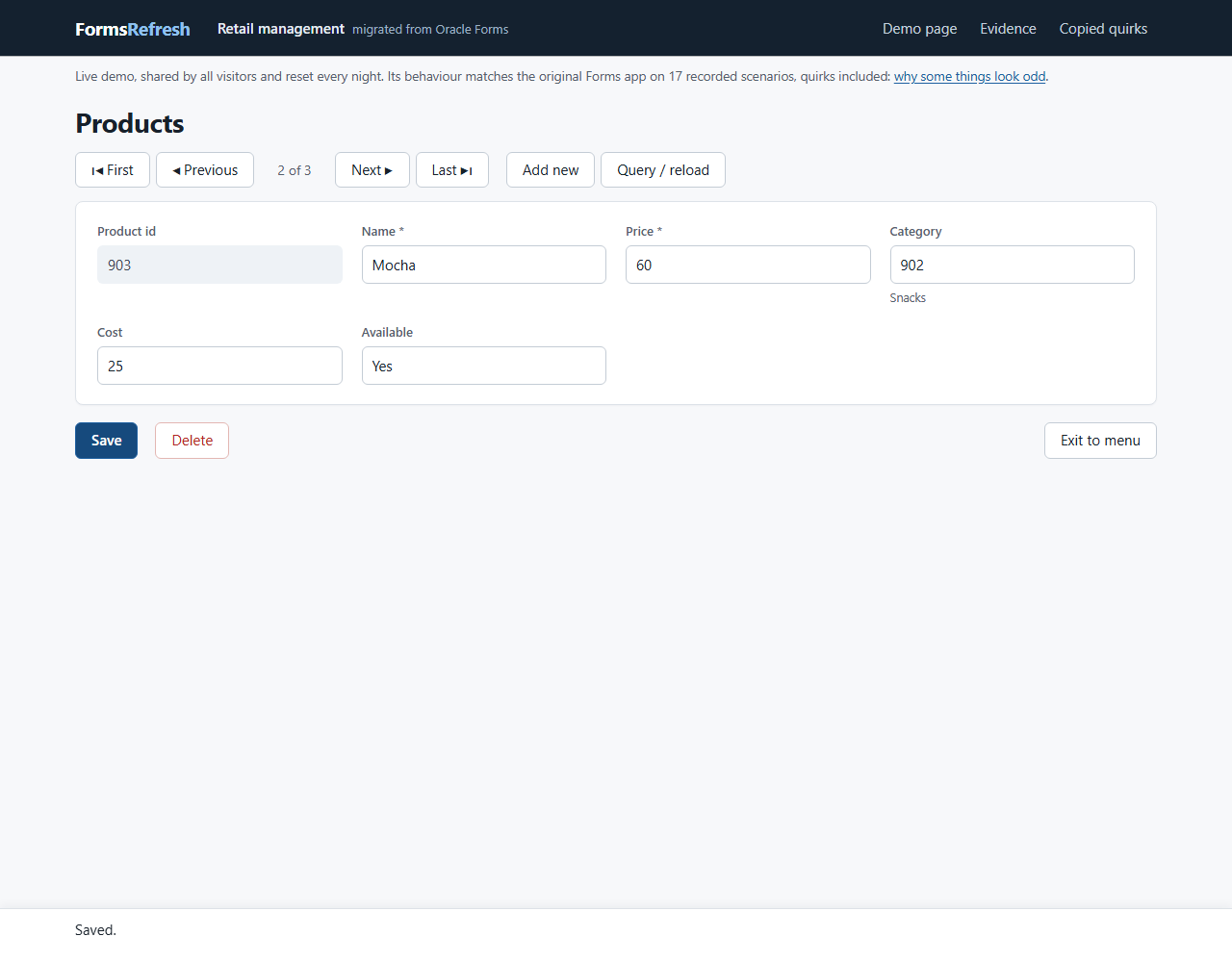

Migrated (.NET, PostgreSQL), step 05-save — Migrated (.NET, PostgreSQL)

Step 6: last record

Original (Oracle Forms 14.1.2), step 06-last-record — Original (Oracle Forms 14.1.2)

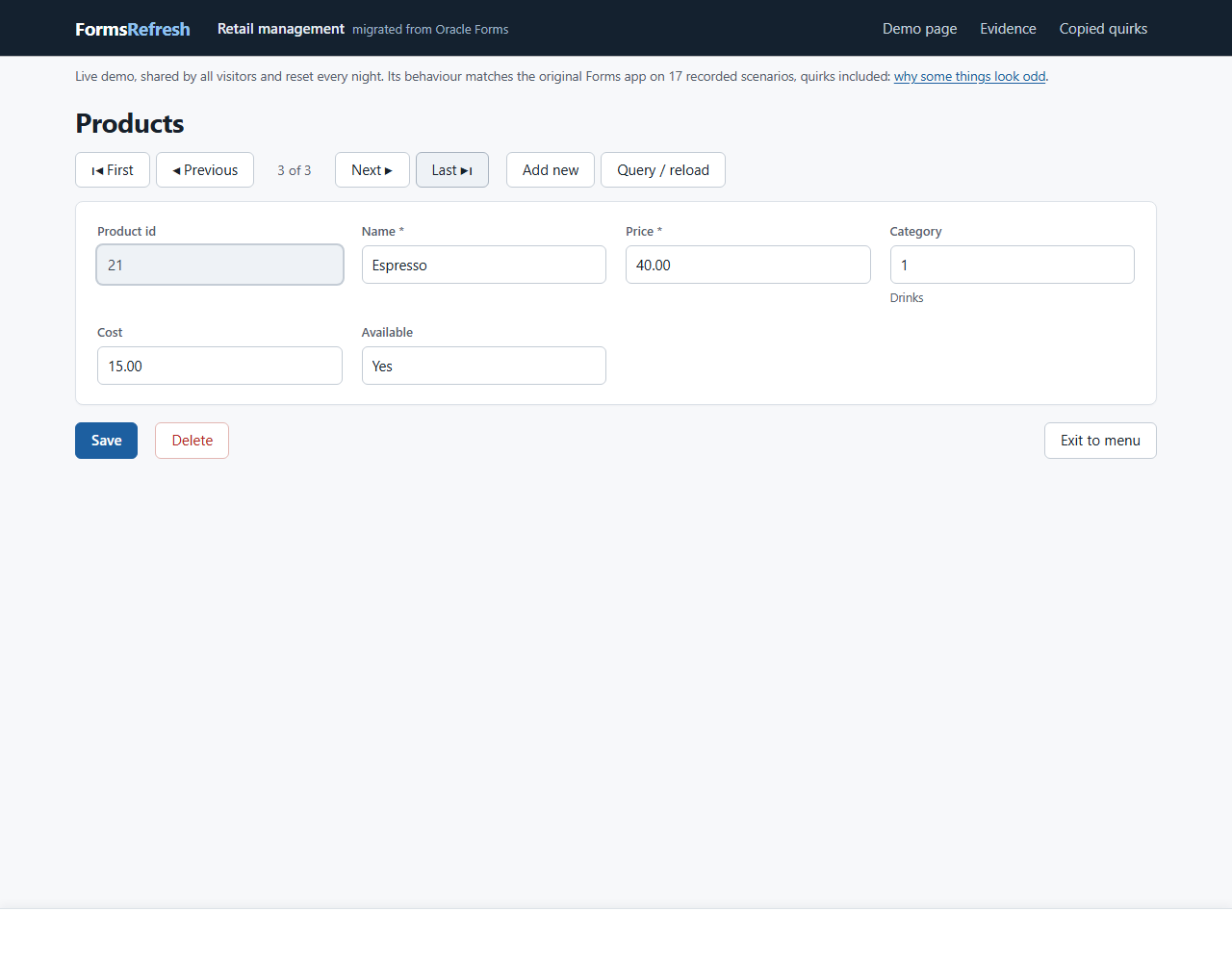

Migrated (.NET, PostgreSQL), step 06-last-record — Migrated (.NET, PostgreSQL)

Step 7: delete

Original (Oracle Forms 14.1.2), step 07-delete — Original (Oracle Forms 14.1.2)

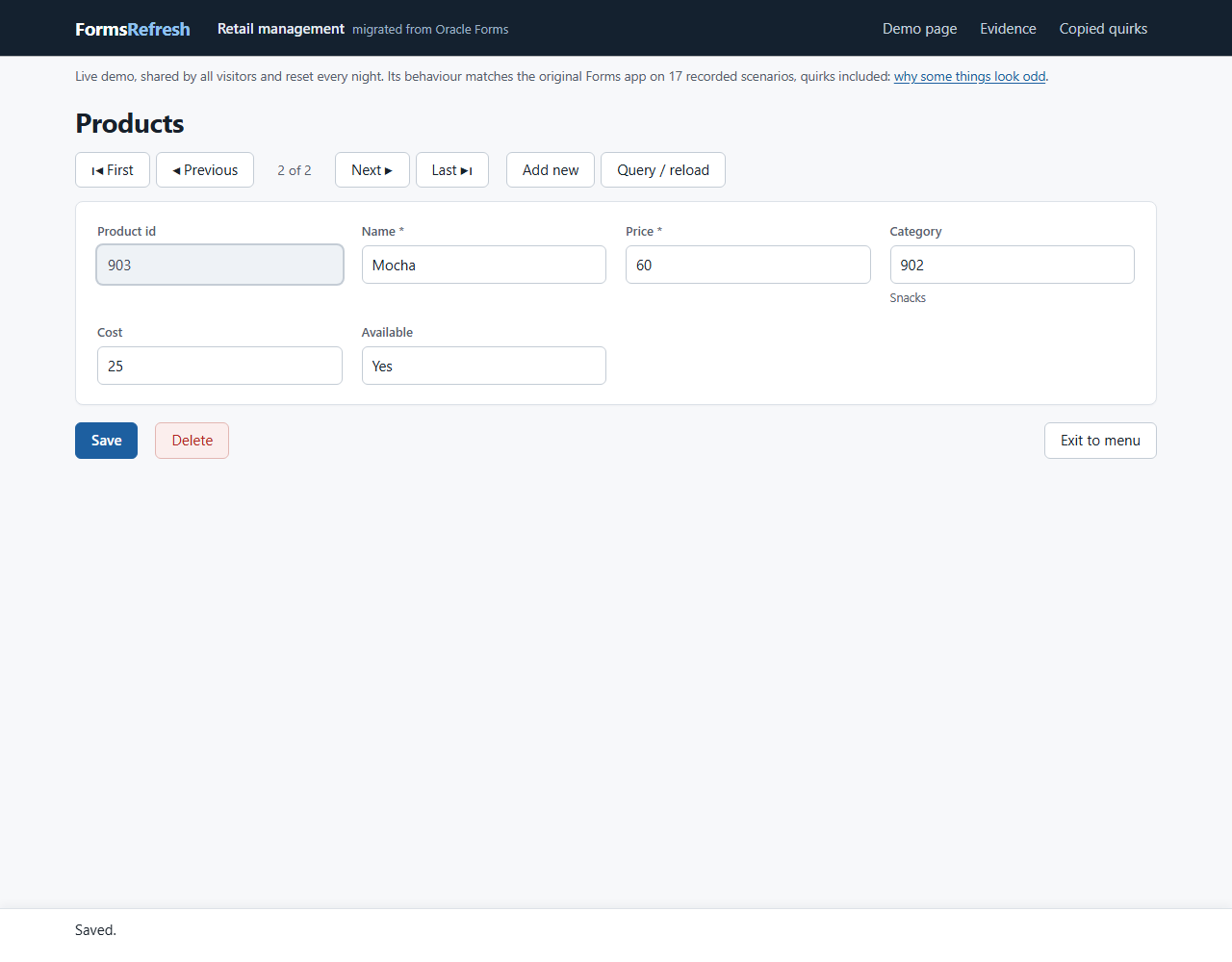

Migrated (.NET, PostgreSQL), step 07-delete — Migrated (.NET, PostgreSQL)

Golden record of the original

After each step: the focus, the displayed values that changed, the message line and any alert. The full record (every item of every step, windows, lists of values) is in the JSON file.

#	Step	Action (by name)	Focus after	Displayed values that changed	Message line	Expect
0		`Open form product_form`	`PRODUCTS.PRODUCT_ID[0]`	`PRODUCTS.AVAILABLE[0]` = Yes `PRODUCTS.CATEGORY_ID_FK[0]` = 1 `PRODUCTS.COST[0]` = 20 `PRODUCTS.NAME[0]` = Latte `PRODUCTS.PRICE[0]` = 55 `PRODUCTS.PRODUCT_ID[0]` = 1
1	add new	`Click PRODUCTS.ADD_BTN`	`PRODUCTS.PRODUCT_ID[0]`
2	fields	`Type PRODUCTS.PRODUCT_ID = 903, PRODUCTS.NAME = Mocha, PRODUCTS.PRICE = 60`	`PRODUCTS.PRICE[0]`	`PRODUCTS.NAME[0]` = Mocha `PRODUCTS.PRICE[0]` = 60 `PRODUCTS.PRODUCT_ID[0]` = 903
3	category	`List of values on PRODUCTS.CATEGORY_ID_FK, pick Category_Name = Snacks`	`PRODUCTS.CATEGORY_ID_FK[0]`	`PRODUCTS.CATEGORY_ID_FK[0]` = 902
4	remaining fields	`Type PRODUCTS.COST = 25, PRODUCTS.AVAILABLE = Yes`	`PRODUCTS.AVAILABLE[0]`	`PRODUCTS.AVAILABLE[0]` = Yes `PRODUCTS.COST[0]` = 25
5	save	`Click PRODUCTS.SAVE_BTN`	`PRODUCTS.SAVE_BTN[0]`		FRM-40400: Transaction complete: 1 records applied and saved.
6	last record	`Click PRODUCTS.ITEM16`	`PRODUCTS.PRODUCT_ID[0]`	`PRODUCTS.CATEGORY_ID_FK[0]` = 1 `PRODUCTS.COST[0]` = 15 `PRODUCTS.NAME[0]` = Espresso `PRODUCTS.PRICE[0]` = 40 `PRODUCTS.PRODUCT_ID[0]` = 21		pass
7	delete	`Click PRODUCTS.DELETE_BTN`	`PRODUCTS.PRODUCT_ID[0]`	`PRODUCTS.CATEGORY_ID_FK[0]` = 902 `PRODUCTS.COST[0]` = 25 `PRODUCTS.NAME[0]` = Mocha `PRODUCTS.PRICE[0]` = 60 `PRODUCTS.PRODUCT_ID[0]` = 903	FRM-40400: Transaction complete: 1 records applied and saved.

Database effects

PRODUCTS inserted: {"PRODUCT_ID": 903, "NAME": "Mocha", "PRICE": 60, "CATEGORY_ID_FK": 902, "COST": 25, "AVAILABLE": "Yes"}
PRODUCTS deleted: {"PRODUCT_ID": 21, "NAME": "Espresso", "PRICE": 40, "CATEGORY_ID_FK": 1, "COST": 15, "AVAILABLE": "Yes"}

Classified diff against the migrated app

Diff: products-add-delete
counts: match 102, tolerated 8, waived 0, defect 0, unmapped 17, harness 0
generated-id pairs (source -> target): none

waivers:
  W1 [proposed] ORDER_DATA saved as NULL: applied to 0 value(s)
  W2 [proposed] Order number consumed when the form opens: applied to 0 value(s)
  W3 [proposed] Line ITEM_ID typed by the user: applied to 0 value(s)
  W4 [proposed] Two modal alerts after saving: applied to 0 value(s)
  W5 [proposed] Key debug message on record navigation (single-table forms): applied to 0 value(s)
  W6 [proposed] Customer debug message in ORDERS: applied to 0 value(s)
  W7 [proposed] Placeholder alert on leaving Employees: applied to 0 value(s)
  W8 [proposed] Error message when the application starts: applied to 0 value(s)
  W9 [proposed] Keyboard hint of the Forms client while a question is open: applied to 0 value(s)
  W10 [proposed] An order added with Add cannot be saved: applied to 0 value(s)

[tolerated] db.PRODUCTS.deleted.COST  rule=money  x1
[tolerated] db.PRODUCTS.deleted.PRICE  rule=money  x1
[tolerated] db.PRODUCTS.inserted.COST  rule=money  x1
[tolerated] db.PRODUCTS.inserted.PRICE  rule=money  x1
[tolerated] ui.values.PRODUCTS.COST  rule=money  x2
[tolerated] ui.values.PRODUCTS.PRICE  rule=money  x2
[unmapped] ui.record  (no target counterpart)  x8
[unmapped] ui.seen.lov.title  x1
[unmapped] ui.windows  (no target counterpart)  x8

Waivers

No waiver applies to this scenario: every compared value matches or is within the tolerance policy.
